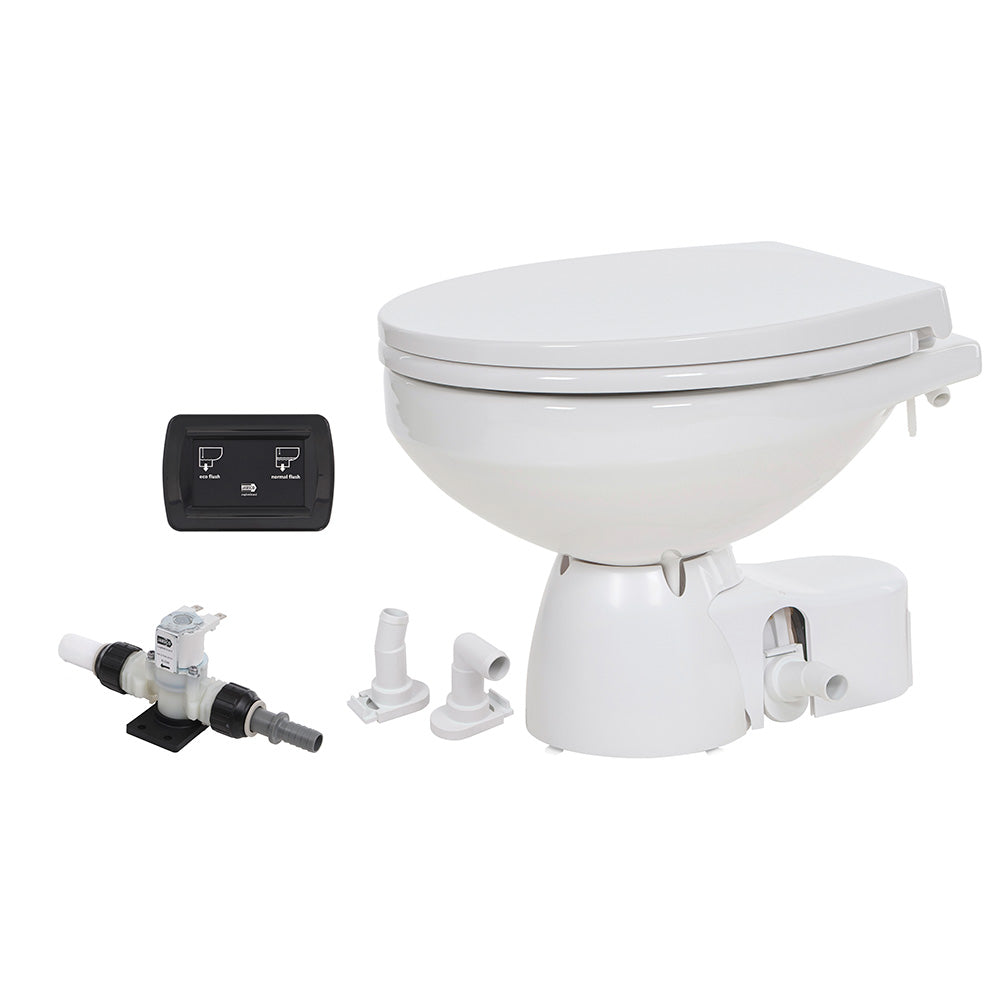

Jabsco Quiet Flush E2 24V Fresh Water Marine Toilet with Soft Close Lid and Touch Sensor Control

Quiet Flush E2 Fresh Water Toilet Regular Bowl - 24V - Soft Close Lid

From crowded charter boats to racing yachts and everything in between, the award-winning Jabsco Quiet Flush E2 marine toilet has been designed to solve some of the biggest marine waste challenges facing boat owners and manufacturers. With its simplified installation, ease of serviceability, and sleek touch sensor control, the Quiet Flush E2 brings a whole new level of convenience and comfort to the water.

Easy 2 Install

The Quiet Flush E2 gives even the occasional boater the confidence to install this toilet. For maximum flexibility in tight spaces, the base can be rotated, allowing you to install the pump with the discharge to the left, right, or rear.

Easy 2 Service

Designed for recreational craft but built to withstand the abuse of commercial use, the quick-release system provides easy access to the macerator pump and discharge hose with no tools needed.

Easy 2 Operate

Marine toilets bring the comfort of home with you, but there are additional considerations on a boat, which is why the Quiet Flush E2 puts you in complete control. With its sleek touch sensor panel, you can choose three settings including a water-saving, eco-flush cycle.

Installation:

• Base can be rotated to the left, right, or rear of the bowl to suit multiple installation options
• Discharge pump can be rotated 180 to suit the base orientation and ensure pipework is routed to the rear of the toilet
• Straight or 90 discharge port for easy install

Quick Release for Easy Servicing:

• Quick release system allows for fast and easy removal of discharge pump and hose when servicing is necessary
• C-Clip design releases the pump assembly from the toilet base without the need for tools, resulting in fast service time

Multi-Function Touch Panel:

• Stylish low-profile design
• Touch-sensitive operation
• Eco flush, full flush, or empty functions
• Only 1-litre (1-quart) per flush using eco mode
• Designed for wet room installations
• No spill empty feature to leave bowl dry when boat is in motion

Specifications:

• Bowl Size: Regular
• Seat Lid: Composite
• Slow-Close Lid: Yes
• Water: On-board fresh water
• Device: Solenoid valve
• Flush Control Switch: Touch Panel
• Voltage DC: 24
• Recommended Fuse Size: 15 amp

Dimensions:

• Height: 14.4 in. (365 mm)
• Width: 14.8 in. (375 mm)
• Depth: 18.9 in. (480 mm)
• Weight: 38.6 lbs (17.5 kg)

The Jabsco Quiet Flush E2 marine toilet is the ultimate solution for boat owners seeking reliable comfort and ease of maintenance onboard. Designed to meet the needs of everything from racing yachts to charter vessels, this award-winning toilet offers a sleek, modern touch with practical features that simplify installation, operation, and servicing. Built to withstand the rigors of both recreational and commercial use, it combines durability with user-friendly design to enhance your marine experience. The Quiet Flush E2 is engineered for quiet operation, efficient water use, and minimal maintenance, making it a preferred choice for watercraft owners worldwide.

Installation flexibility is a key feature of the Jabsco Quiet Flush E2. The base can be rotated to align with your space constraints, allowing discharge to the left, right, or rear, ensuring compatibility with various boat layouts. The discharge pump itself can be rotated 180 degrees to facilitate pipe routing, and the design includes options for straight or 90-degree discharge ports, streamlining the installation process. With a quick-release system that requires no tools, service access to the macerator pump and discharge hose is straightforward and quick, reducing downtime and maintenance effort. This system is designed to withstand demanding marine environments while providing easy access when repairs are needed.

The intuitive multi-function touch panel enhances user control with a sleek, low-profile design. It features touch-sensitive operation, allowing you to select between eco-flush, full flush, or empty functions. The eco-flush cycle uses only 1 quart of water per flush, helping you conserve fresh water on board. The toilet also includes a no-spill empty feature, ensuring the bowl remains dry during transit or when the boat is in motion. The soft-close lid adds an extra touch of comfort and quietness, making every use a pleasant experience. This marine toilet is designed for wet room installations, providing reliable performance in confined spaces.

Constructed with a durable composite seat lid and a compact, lightweight design, the Jabsco Quiet Flush E2 is a smart investment for boat owners requiring a dependable, space-efficient sanitation solution. Its robust construction and innovative features make it suitable for various marine applications, offering both comfort and convenience on the water. Whether for new installations or upgrades, this toilet embodies the perfect balance of functionality, ease of use, and marine-grade durability, ensuring years of reliable service in challenging marine environments.

Features:

• Rotatable base for flexible installation with discharge options to the left, right, or rear

• 180-degree rotatable discharge pump for simplified pipe routing

• Quick-release system for fast, tool-free servicing of the pump and hose

• Multi-function touch panel with eco-flush, full flush, and empty options

• Eco-flush cycle uses only 1 quart of water per flush to conserve fresh water

• Soft-close lid for quiet, comfortable use

• No-spill empty feature ensures a dry bowl during transit

• Designed for wet room installations with durable marine-grade components
