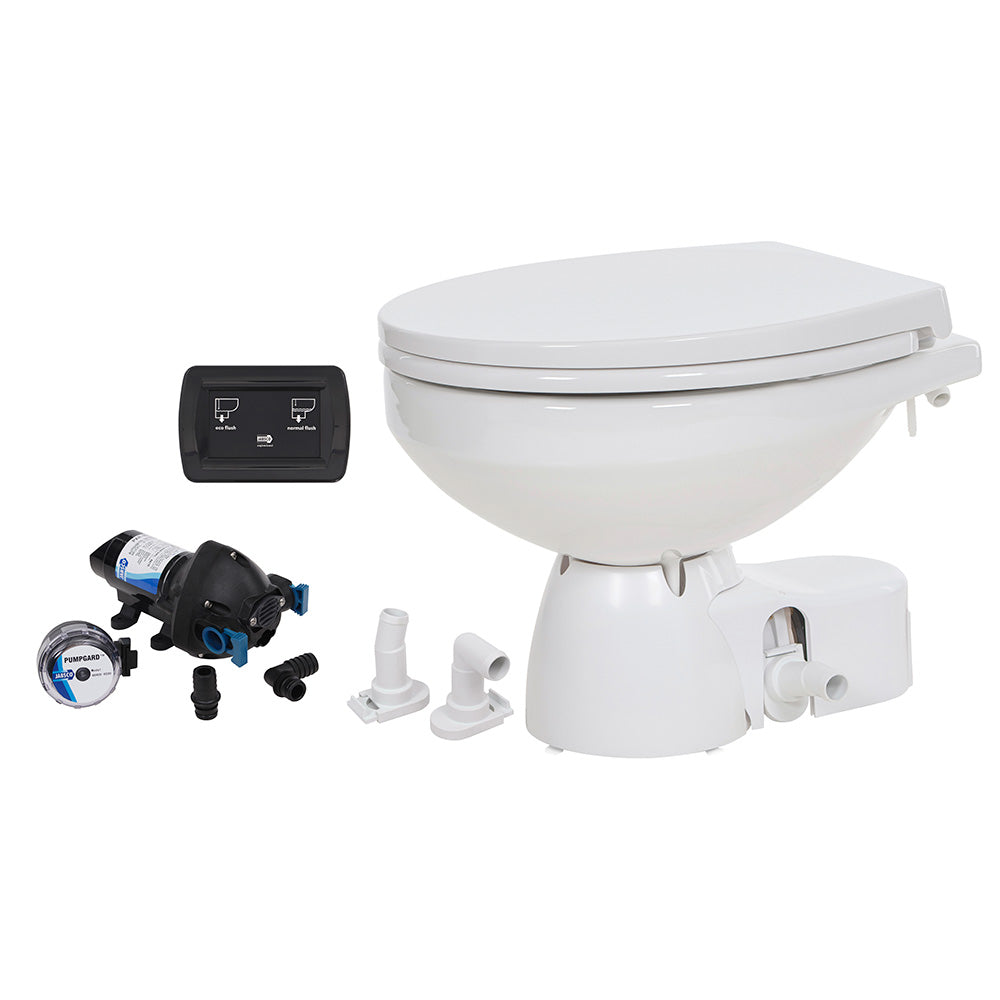

Jabsco Quiet Flush E2 Raw Water Marine Toilet with Soft Close Lid and Touch Sensor Control – 12V

Quiet Flush E2 Raw Water Toilet Regular Bowl - 12V - Soft Close Lid

From crowded charter boats to racing yachts and everything in between, the award-winning Jabsco Quiet Flush E2 marine toilet has been designed to solve some of the biggest marine waste challenges facing boat owners and manufacturers. With its simplified installation, ease of serviceability, and sleek touch sensor control, the Quiet Flush E2 brings a whole new level of convenience and comfort to the water.

Easy 2 Install

The Quiet Flush E2 gives even the occasional boater the confidence to install this toilet. For maximum flexibility in tight spaces, the base can be rotated, allowing you to install the pump with the discharge to the left, right, or rear.

Easy 2 Service

Designed for recreational craft but built to withstand the abuse of commercial use, the quick-release system provides easy access to the macerator pump and discharge hose with no tools needed.

Easy 2 Operate

Marine toilets bring the comfort of home with you, but there are additional considerations on a boat, which is why the Quiet Flush E2 puts you in complete control. With its sleek touch sensor panel, you can choose three settings including a water-saving, eco-flush cycle.

Installation:

• Base can be rotated to the left, right, or rear of the bowl to suit multiple installation options
• Discharge pump can be rotated 180 to suit the base orientation and ensure pipework is routed to the rear of the toilet
• Straight or 90 discharge port for easy install

Quick Release for Easy Servicing:

• Quick release system allows for fast and easy removal of discharge pump and hose when servicing is necessary
• C-Clip design releases the pump assembly from the toilet base without the need for tools, resulting in fast service time

Multi-Function Touch Panel:

• Stylish low-profile design
• Touch-sensitive operation
• Eco flush, full flush, or empty functions
• Only 1-litre (1-quart) per flush using eco mode
• Designed for wet room installations
• No spill empty feature to leave bowl dry when boat is in motion

Specifications:

• Bowl Size: Regular
• Seat Lid: Composite
• Slow-Close Lid: Yes
• Water: Sea, river, and lake water
• Device: Rinse pump
• Flush Control Switch: Touch Panel
• Voltage DC: 12
• Recommended Fuse Size: 25 amp

Dimensions:

• Height: 14.4 in. (365 mm)
• Width: 14.8 in. (375 mm)
• Depth: 18.9 in. (480 mm)
• Weight: 38.6 lbs (17.5 kg)

The Jabsco Quiet Flush E2 Marine Toilet offers a perfect blend of innovative design, ease of installation, and reliable performance for boats of all sizes. Engineered for crowded charter boats, racing yachts, and recreational vessels, this award-winning toilet simplifies waste management with its user-friendly features and sleek styling. Its compact design and flexible installation options make it an ideal choice for tight spaces, allowing the base to be rotated for optimal discharge positioning. The unit’s durable construction and quick-release service system ensure maintenance is straightforward and efficient, minimizing downtime during servicing.

Designed with the modern boater in mind, the Quiet Flush E2 features a multi-function touch sensor panel that provides intuitive control over flush settings. Choose between eco-flush, full flush, or empty functions, with the eco mode using only 1 quart of water per flush. This environmentally conscious feature helps conserve water while maintaining comfort onboard. The soft-close lid adds a touch of refinement and quiet operation, enhancing the overall user experience. Its compatibility with various water sources, including sea, river, and lake water, makes it highly versatile for different marine environments.

Installation flexibility is a key feature of the Jabsco Quiet Flush E2. The base can be rotated to the left, right, or rear, and the discharge pump can be positioned to suit the boat’s layout. The unit’s straight or 90-degree discharge port simplifies pipe routing, and the quick-release system allows for fast removal of the pump and hose during servicing—no tools required. Built for durability, the toilet can withstand the demands of both recreational and commercial use, ensuring long-lasting performance with minimal maintenance. Overall, the Jabsco Quiet Flush E2 enhances onboard comfort with its innovative features, easy installation, and reliable operation, making it a top choice for marine sanitation needs.**Note:** This product adheres to Prop 65 standards for safety and compliance, ensuring peace of mind for users.

Features:

• Rotatable base for flexible installation in tight spaces

• Quick-release system for easy servicing of pump and discharge hose

• Touch sensor control panel with eco, full, and empty flush options

• Eco-flush cycle uses only 1 quart of water per flush

• Soft-close lid for quiet and refined operation

• Compatible with sea, river, and lake water sources

• Discharge pump can be rotated 180 degrees for optimal pipe routing

• Designed for wet room installations with no spill empty feature

• Durable construction suitable for commercial and recreational use
