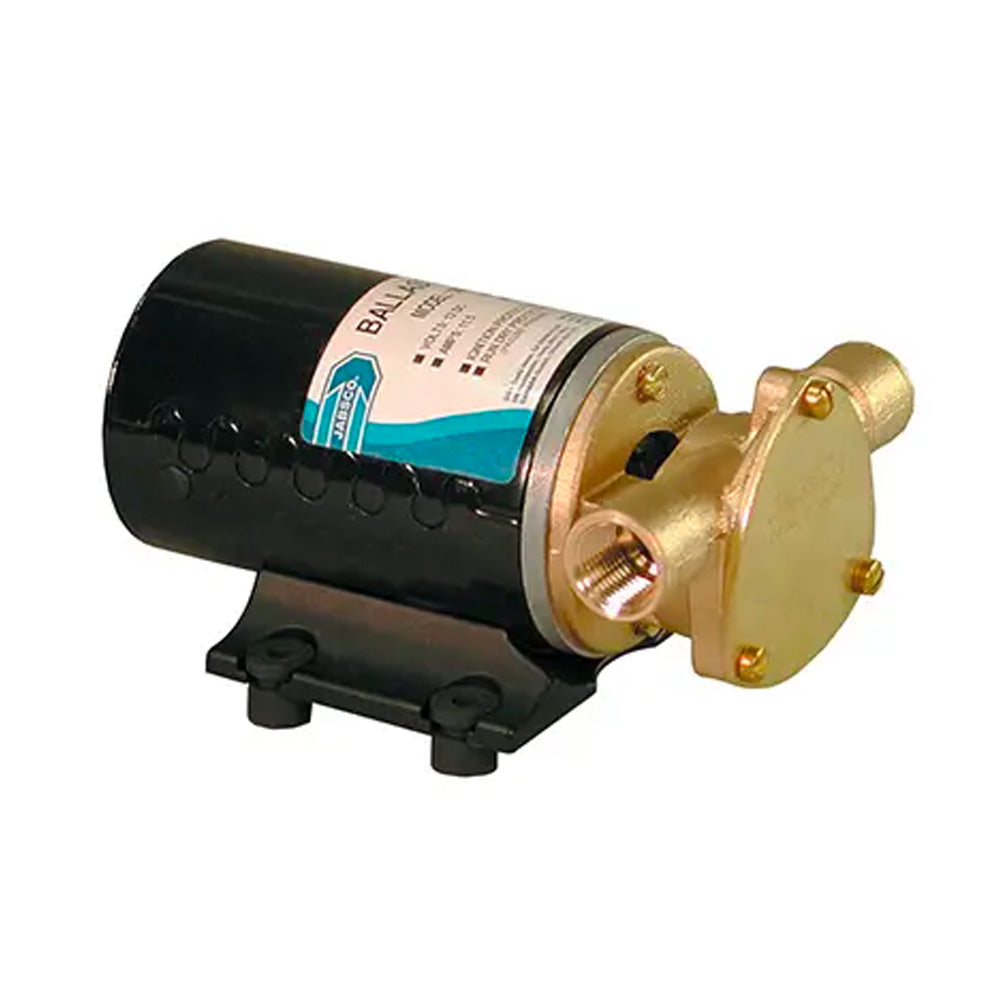

Jabsco Wakeboard Ballast Puppy Replacement Pump with Deutsch Connector - Fast Filling, Ignition Protected

Wakeboard Ballast Puppy with Deutsch Connector - Replacement Pump Only - No Switch

Choose the Jabsco Ballast Puppy w/Deutsch Connector if you are replacing a Jabsco Ballast Puppy pump already installed in the boat. If installing a new automated system, your best option is the Jabsco Wakeboard Ballast Puppy Reversible Pump that is equipped with the pre-wired switch connector (18220-1127).

Features:

• Fills an 800-pound bag in approximately 9 minutes and 5 seconds
• Power source: Plug-and-Wake Connector
• Type: Component reversible pump for automated ballast system
• Ignition Protected: Protects against ignition of fuel vapors or other combustibles.
• Thermal Damage Protection: The integrated Thermal Damage Protection circuit monitors the temperature of the pump motor and automatically shuts it off if conditions indicate water is no longer flowing through the pump. This innovative feature will prevent damage to the motor from overheating.
• Ignition Protected: Designed for safe installation in the bilge compartment of the boat without risk of fire or explosion due to fuel vapors. This feature alone is crucial for safe operation and is one important distinguishing factor between the Ballast Puppy and the similar pump to which it is often compared.

*NOTE: Directly compatible with 2013 and newer Mastercraft boats. 2002-2012 MasterCraft boats will also need the WakeMAKERS Deutsch DTP to DT Wiring Adapter (see recommended accessories) for full compatibility.

The Jabsco Ballast Puppy Reversible Ballast Pump is reliable, fast, and efficient. That is why it is the most popular ballast pump in wakeboarding. This is the pump that is used by Centurion, Mastercraft, Moomba, Nautique, and Supra boats to power their automated ballast systems, and the direct replacement for model 18670-6127.

Reversible pumps simplify the design and reduce the number of components required for installation. Whether replacing a pump or installing a fully automated ballast system, this is one of the most popular ballast pumps on the market. This is the newest model of the Puppy pump and is a direct replacement for all previous models.

Versatile, High Volume Connection Options

The unique design of the pump head features integrated hose barbs for use with 1 hose. Just slide the hose over the bronze inlet and outlet ports and secure with hose clamps.

Additionally, 1/2 NPT female connections are provided for use with a smaller hose (use with optional 1/2 thread to 3/4 hose barb adapter to convert to 3/4 hose if necessary), giving you a multitude of connection options.

Specifications:

• Fill Rate: This pump fills and drains at a rate of 88 pounds/min
• Flow Rate: 640 Gallons Per Hour / 10.6 Gallons Per Minute
• Physical Dimensions: 3-5/8 H x 4-3/4 W x 7-1/8 L
• Inlet/Outlet: 1 Hose Barb and 1/2 NPT Internal Thread
• Self-priming: Yes
• Safety Features: Ignition Protected
• Impeller Color: Green
• 1-year warranty

The Jabsco Wakeboard Ballast Puppy w/Deutsch Connector is a reliable and efficient replacement pump designed for wakeboarding boats. Engineered to quickly fill an 800-pound ballast bag in just over nine minutes, this pump ensures your boat is ready for action in minimal time. Its plug-and-wake connector makes installation straightforward, whether you're replacing an existing pump or setting up a new automated ballast system. Crafted for durability and safety, the pump features ignition protection, preventing fire risks in the bilge area, and thermal damage protection, which automatically shuts off the motor if it overheats, extending the lifespan of the pump.

The versatile design includes integrated hose barbs for easy connection with 1-inch hoses, secured with hose clamps, and 1/2 NPT female connections to accommodate smaller hoses with optional adapters. This flexibility allows seamless integration into various boat configurations, including models from 2002 and newer MasterCraft boats, with additional wiring adapters for older models. The pump boasts a flow rate of 640 gallons per hour and a fill rate of 88 pounds per minute, making it one of the fastest options available for wakeboarding ballast systems.

Built with a self-priming feature, the Jabsco Ballast Puppy ensures hassle-free operation, reducing maintenance and installation time. Its compact dimensions make it easy to install in tight spaces, and the green impeller signifies its high-quality construction. This model is a direct replacement for the popular model 18670-6127, trusted by major brands like Centurion, Nautique, Moomba, and Supra. Backed by a one-year warranty, the pump offers peace of mind for boat owners seeking a dependable solution to enhance their wakeboarding experience. As a Prop 65 compliant product, safety and durability are prioritized, making this pump an ideal choice for recreational and professional wakeboarders alike.

Features:

• Fills an 800-pound ballast bag in approximately 9 minutes and 5 seconds

• Power source: Plug-and-Wake connector for quick installation

• Type: Component reversible pump suitable for automated ballast systems

• Ignition Protected: Ensures safe operation in the boat's bilge area

• Thermal Damage Protection: Monitors motor temperature and prevents overheating

• Versatile connection options with integrated hose barbs and 1/2 NPT threaded fittings

• Self-priming design for reliable startup

• Flow Rate: 640 gallons per hour or 10.6 gallons per minute

• Compact dimensions for easy installation in tight spaces

• Durable construction with a green impeller and one-year warranty
