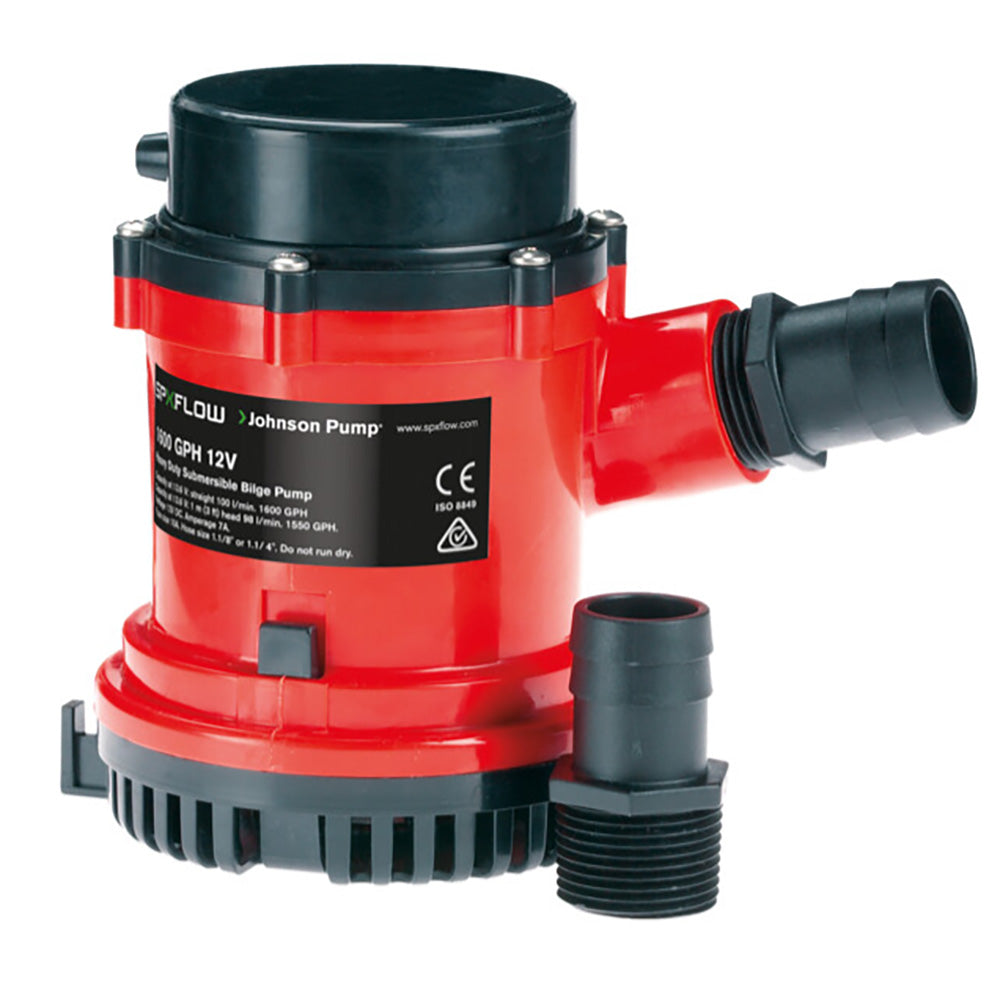

Johnson Pump 1600 GPH Heavy Duty Bilge Pump 12V with 1-1/8" Port and Mechanical Seal

Heavy Duty Bilge Pump 1600 series 12v:
The best choice when you are looking for high performance, heavy duty pumps
designed to meet and exceed the tough demands of commercial and recreational duty. This pump has a liquid cooled, 12-pole motor with double ball bearings for extended service life. The 2200 motor is sealed off by a mechanical seal design, while the 1600 model has lipseal. The impeller is carefully designed and tested to maximize head and flow. The 4000 features a robust motor design, mechanical shaft seal, high impact ABS plastic and unique threaded port design. Universal base plate and a choice of 1-1/2" or 2" ports makes for a simple installation. Removable check valve included.
CE-Approved

Features:

• Heavy duty, 12-pole double ball bearing motor

• Liquid cooled for extended motor life

• Quality engineered mechanical/lip seal

• ISO 8849 Marine and CE standards

• Easily interchangeable with most similar bilge pumps

• Pump body: Thermoplastic

• Shaft seal: Mechanical seal

• Shaft: Stainless steel (SS2343)

• Voltage: 12 V

• Capacity 1.0 m head (13.6 V/27 V): 98 l/min - 1550 GPH

• Capacity straight (13.6 V/27 V): 100 l/min - 1600 GPH

• Amperage: 7 A

• Fuse Size: 10 A

• Connection: 1-1/8" and 1-1/4"

• Shaft: SS2343

• Wire size: 1.3 mm2 - 16 GA

• Max height 149 mm - 5.86"

• Weight 1.3 kg - 2.75 lbs

The Johnson Pump 1600 GPH Heavy Duty Bilge Pump is designed for demanding marine applications, providing reliable performance in both commercial and recreational environments. Equipped with a liquid-cooled, 12-pole motor featuring double ball bearings, this pump ensures extended service life and consistent operation even under tough conditions. The sealed motor design, utilizing a robust mechanical seal, prevents water ingress and enhances durability. The impeller is engineered and tested to deliver maximum head and flow, making it an ideal choice for efficient bilge pumping.
Constructed with high-quality materials, including a thermoplastic pump body and stainless steel shaft, the Johnson Pump 1600 GPH Bilge Pump meets ISO 8849 Marine and CE standards. Its universal base plate and interchangeable port sizes of 1-1/8" or 1-1/4" simplify installation on various vessels. The pump also features a removable check valve for added convenience and maintenance. With a capacity of up to 98 liters per minute (approximately 27 gallons per hour) at a head of 1 meter, it reliably moves water in tight spaces with minimal power consumption.
Designed for ease of use, this pump operates at 12 volts with a typical current draw of 7 amps. Its compact size and lightweight design make it suitable for a wide range of marine bilge applications. Whether you need a dependable pump for routine bilge management or emergency dewatering, the Johnson Pump 1600 GPH Bilge Pump offers high performance, durability, and peace of mind on the water. It is a trusted choice for boat owners and marine professionals seeking a reliable, CE-approved bilge solution that meets rigorous standards and ensures safety and efficiency during vessel operation.

Features:

• Heavy duty, 12-pole double ball bearing motor for durability and smooth operation

• Liquid cooled motor design extends service life and maintains optimal performance

• Engineered mechanical/lip shaft seal for reliable water tightness

• Meets ISO 8849 Marine and CE standards for quality and safety

• Easily interchangeable with most similar bilge pumps for versatile upgrade options

• Pump body constructed from high-impact thermoplastic for strength and longevity

• Stainless steel shaft (SS2343) for corrosion resistance

• Operates on 12V power supply with a typical current draw of 7A

• Capable of pumping up to 98 liters per minute (27 gallons per hour) at 1 meter head

• Simple installation with universal base plate and port options of 1-1/8" or 1-1/4"

• Removable check valve included for maintenance and flow control
