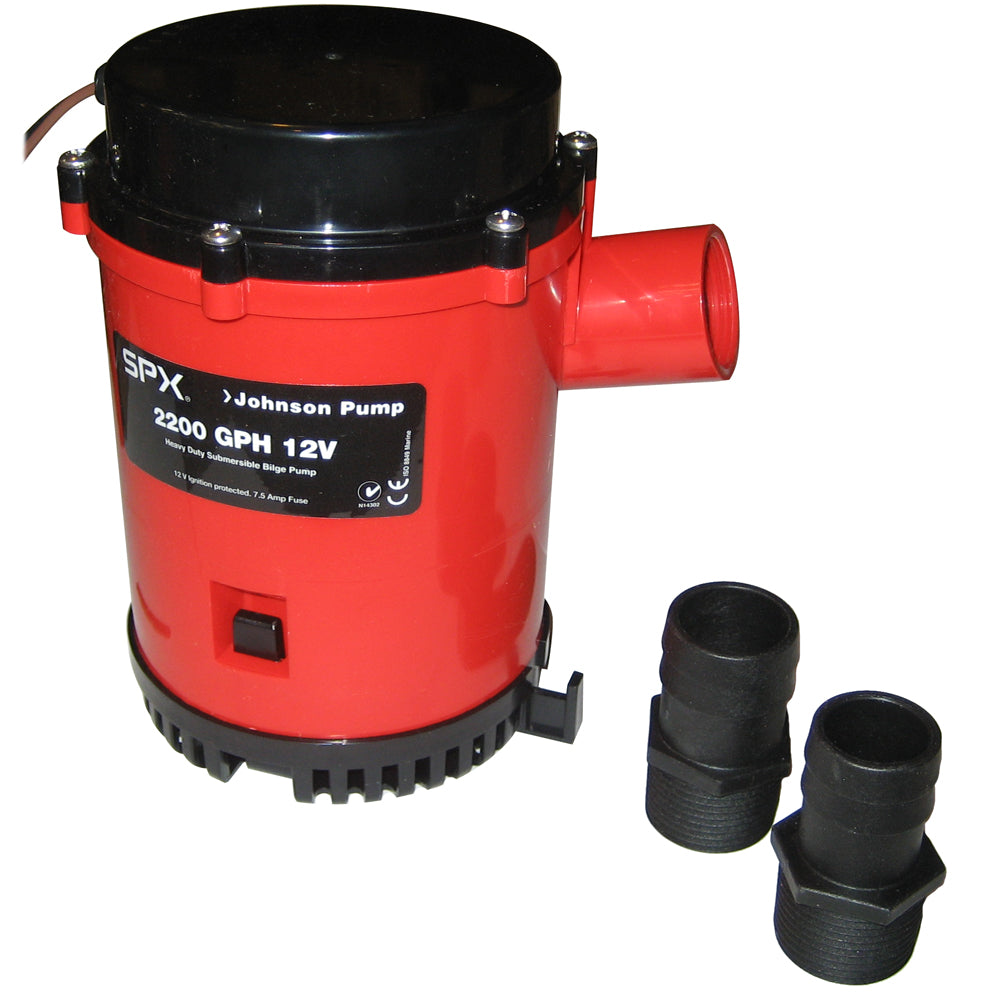

Johnson Pump 2200 GPH Bilge Pump 12V with 1-1/8 inch Threaded Port - Heavy Duty Marine Pump

Heavy Duty Bilge Pump 2200 series 12v
The best choice when you are looking for high performance, heavy duty pumps
designed to meet and exceed the tough demands of commercial and recreational duty. This pump has a liquid cooled, 12-pole motor with double ball bearings for extended service life. The 2200 motor is sealed off by a mechanical seal design, while the 1600 model has lipseal. The impeller is carefully designed and tested to maximize head and flow. The 4000 features a robust motor design, mechanical shaft seal, high impact ABS plastic and unique threaded port design. Universal base plate and a choice of 1-1/2" or 2" ports makes for a simple installation. Removable check valve included.
CE-Approved

Features:

• Heavy duty, 12-pole double ball bearing motor

• Liquid cooled for extended motor life

• Quality engineered mechanical/lip seal

• ISO 8849 Marine and CE standards

• Easily interchangeable with most similar bilge pumps

• Pump body: Thermoplastic

• Shaft seal: Mechanical seal

• Shaft: Stainless steel (SS2343)

• Voltage: 12 V

• Capacity 1.0 m head (13.6 V/27 V): 120 l/min - 1900 GPH

• Capacity straight (13.6 V/27 V): 130 l/min - 2060 GPH

• Amperage: 7.5 A

• Fuse Size: 12 A

• Connection: 1-1/8" and 1-1/4"

• Shaft: SS2343

• Wire size: 1.3 mm2 - 16 GA

• Max height 177 mm - 7"

• Weight 2.7 kg - 6 lbs

The Johnson Pump 2200 GPH Bilge Pump is the ultimate choice for demanding marine applications, offering high performance and durability for both commercial and recreational vessels. Designed with a liquid-cooled, 12-pole motor featuring double ball bearings, this pump ensures extended service life even under rigorous conditions. The robust mechanical shaft seal and high-impact ABS plastic construction provide reliable operation and resistance to harsh environments. Its universal base plate and selectable 1-1/8 inch or 1-1/4 inch ports simplify installation, making it compatible with most bilge systems. A removable check valve is included for added convenience and system integrity.
Engineered to meet and exceed ISO 8849 Marine and CE standards, the Johnson Pump 2200 GPH Bilge Pump is built for reliability. The pump’s carefully crafted impeller maximizes flow rate and head, delivering up to 120 liters per minute (around 32 gallons per minute) at 13.6 volts, with a maximum head height of 7 inches. Its stainless steel shaft ensures durability, while the thermoplastic pump body resists corrosion. With an operating amperage of only 7.5 amps and a fuse size of 12 amps, this pump offers efficient power consumption. The unit weighs approximately 6 pounds, making it easy to install and service.
Whether you need a dependable bilge pump for a large yacht or a small boat, the Johnson Pump 2200 GPH model is designed for longevity and performance, meeting the tough demands of marine environments. Built with quality materials and advanced engineering, it guarantees peace of mind during every voyage, complying with industry standards and ensuring safety and efficiency. This pump is an investment in reliable bilge management, helping to keep your vessel safe and dry in all conditions.

Features:

• Heavy duty, 12-pole double ball bearing motor for durability

• Liquid cooled motor extends operational life

• Mechanical seal design ensures leak-proof performance

• Meets ISO 8849 Marine and CE standards for quality assurance

• Interchangeable with most similar bilge pumps for versatility

• Pump body made from high-impact thermoplastic for corrosion resistance

• Stainless steel shaft for strength and longevity

• Operates at 12 volts with a capacity of up to 120 liters per minute (around 32 GPM)

• Maximum head height of 7 inches for efficient water removal

• Includes removable check valve for system integrity and ease of maintenance

• Universal base plate with options for 1-1/8 inch or 1-1/4 inch ports for easy installation

• Compact design weighing approximately 6 pounds for portability and installation convenience
