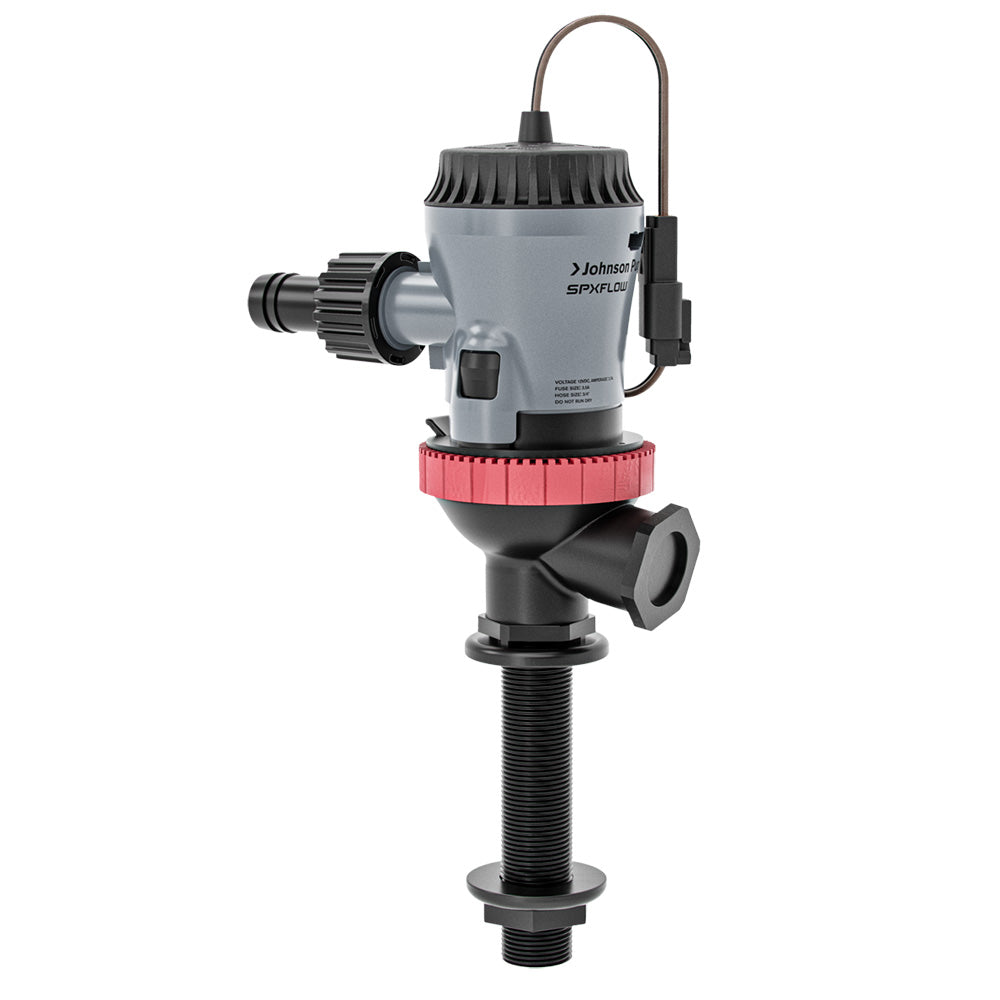

Johnson Pump Aqua O2 Flex Mount 500 GPH Aerator Pump - 12V for Livewell and Washdown Applications

Aqua O₂ Flex Mount 500 GPH Aerator Pump - 12V

Johnson Pump cartridge aerator pumps offer ease of convenience and years of reliable service. This pump has an improved design with an easy-to-change/replace motor cartridge.

Features:

• All Aqua O2 Cartridge Aerator Pumps offer the convenience of using only one intake for both the livewell and washdown pump
• Includes a 3/4 NPSM thru-hull inlet that can be used straight or 90-degree
• High-flow impeller design
• Quick-change motor connection
• 360-degree pump discharge rotation
• Switchless automatic bilge pump with low-amp resistance monitoring
• Durable thermoplastic housing design commonality with removable motor cartridge
• Water-cooled motor, 316 stainless steel shaft, and permanently lubricated double bearings
• Upgradable motor cartridge
• Dual-port inlet

Benefits:

• Heightened efficiency and an increased flow rate
• Enjoy quick and hassle-free cartridge motor changes or capacity upgrades
• Reorient discharge in any direction
• The common body allows interchangeable motor cartridge replacement in the same or different size
• Corrosion-resistant and extended life
• Allows single transom intake for dual intake pump application
• Can increase or decrease capacity according to the environment and flow needed
• Choose the correct intake for the application

Competitive Advantages:

• The most efficient and highest flow in the GPH capacity category
• Industry-first and only cartridge motor pump with an included harness connection requiring no cutting and splicing of wires
• Unmatched versatility for ease of installation

Specifications:

• Pump Size: 500 GPH
• Capacity Straight (12V): 585 GPH (37 I/min)
• Voltage: 12V
• Amp: 2.7A
• Fuse: 3.5A
• Hose Connection: 3/4 in.
• Wire Size: 16 GA, TINNED
• Weight: 9.6 oz
• Body: ABS
• Dura Port: PA66/GF - Nylon
• Shaft: 316 Stainless Steel
• Shaft Seal: Nitrile Rubber
• Motor Cartridge: PC-ABS

The Johnson Pump Aqua O2 Flex Mount 500 GPH Aerator Pump is engineered for reliable performance in marine and aquatic environments. Designed with convenience and longevity in mind, this pump features an easy-to-replace motor cartridge, reducing maintenance time and costs. Its high-flow impeller and durable thermoplastic housing ensure efficient water movement, making it ideal for livewells, washdowns, and bilge applications. The pump’s versatile design allows for 360-degree discharge reorientation, enabling optimal placement for any setup.

Equipped with a dual-port inlet, the Aqua O2 pump simplifies plumbing by allowing a single transom intake for dual pump applications. The included 3/4 inch NPSM thru-hull inlet can be used straight or at a 90-degree angle, providing flexible installation options. Its water-cooled motor, stainless steel shaft, and permanently lubricated double bearings ensure corrosion resistance and extended service life, even in harsh marine conditions. The quick-change motor connection and interchangeable motor cartridge facilitate easy upgrades or replacements, minimizing downtime and ensuring continuous operation.

Designed for efficiency, the Johnson Pump Aqua O2 delivers up to 585 GPH at 12 volts, with a low current draw of only 2.7 amps. This makes it a cost-effective choice for boat owners seeking high performance without excessive power consumption. Its compact size and lightweight design make installation straightforward, and the industry-first harness connection eliminates the need for wire cutting or splicing, simplifying setup. Whether upgrading existing systems or installing a new setup, this pump offers unmatched versatility, efficiency, and durability.

Engineered for the demanding conditions of marine environments, the Aqua O2 Flex Mount 500 GPH Aerator Pump complies with industry standards and is Prop 65 compliant. It is an excellent choice for boaters, anglers, and marine professionals who require a reliable, high-capacity pump that is easy to install and maintain, ensuring optimal water flow and system performance in various applications.

Features:

• High-flow impeller design for maximum water movement

• Includes 3/4 inch NPSM thru-hull inlet with straight or 90-degree options

• Quick-change motor cartridge for easy maintenance and upgrades

• 360-degree discharge rotation for versatile installation

• Water-cooled motor with stainless steel shaft and double bearings for durability

• Dual-port inlet simplifies plumbing for dual applications

• Industry-first harness connection requiring no wiring splicing

• Compact and lightweight design for straightforward installation

• Corrosion-resistant thermoplastic housing for extended lifespan

• Upgradable motor cartridge for increased capacity or performance
