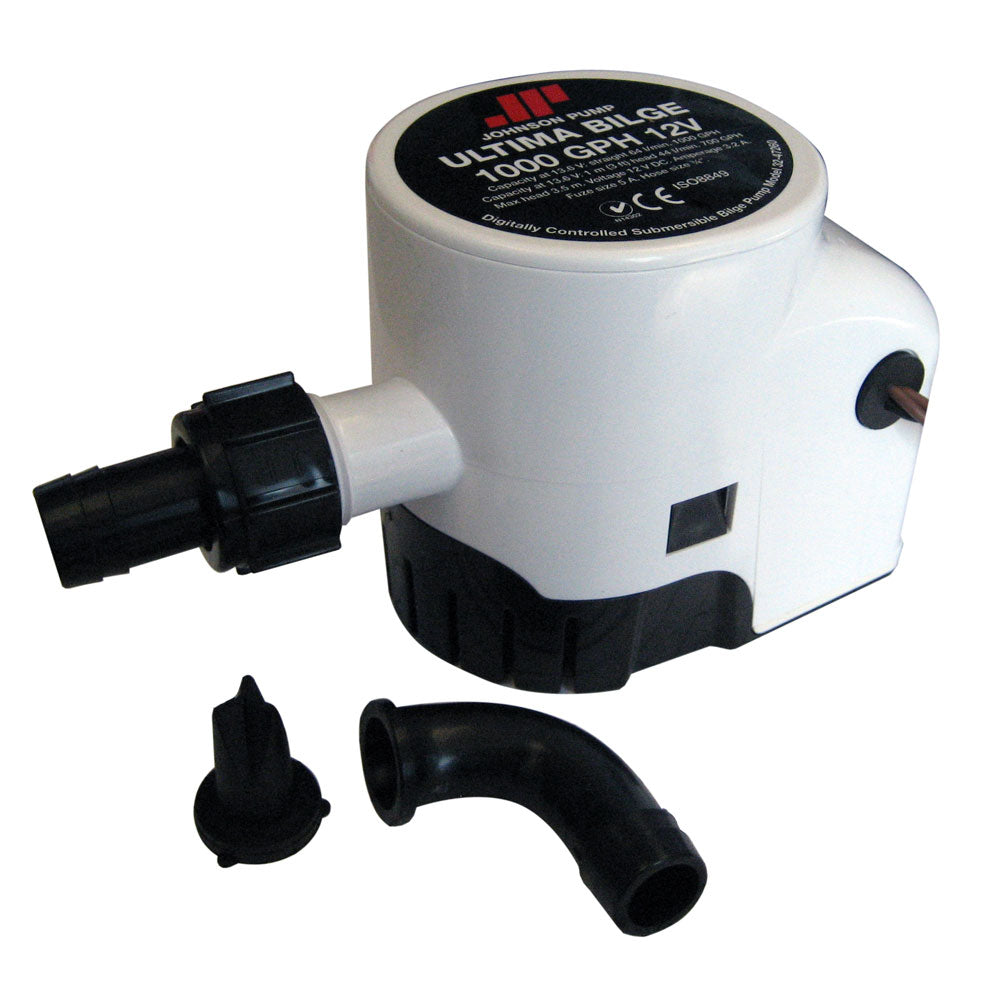

Johnson Pump Ultima Bilge Pump 1000 GPH with Integrated Switch and Dura-Port Discharge

Ultima Bilge Pump
UltimaBilge Pumps are the latest addition to the Johnson Pump brand lineup. Integration of the Ultima "field effect" sensing technology into the bilge pump body creates a sleek, reliable and compact unit with integrated switch ready to install and run for years and years of unerring service. Available in 600-800-1000-1250 GPH versions. Voltage 12 V DC. For UltimaBilge 600 GPH-1000 GPH, we have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. These pumps will be delivered including both a straight and a 90 degree smooth elbow Dura-Port.

All version are delivered with a removable check valve.

The Ultima Bilge pumps may be manually operated via the Johnson Pump bilge
control panel.
CE-Approved

Features:

• Compact, all-in-one unit

• Integrated Ultima Switch sensing right into the pump body

• No Mercury

• Removable clip on basket design

• Removable impeller cover allows for easy clean out

• 3-wire device can be run in auto or manual override mode

• No tools needed for maintenance

• Extremely energy efficient

• Water-cooled motor for long service intervals

• Pump Body: ABS

• Shaft Seal: Lip Seal

• Shaft: Stainless steel (SS2343)

• Voltage: 12 V DC

• Capacity 3 ft (0.9 m) head (13.6 V): 44 l/min - 700 GPH

• Capacity straight (13.6 V): 64 l/min - 1000 GPH

• Amperage: 3.2 A

• Fuse Size: 5 A

• Connection: 3/4"

• Length:142 mm - 6"

• Width:82 mm - 3.2"

• Height:105 mm - 4.1"

• Weight:0.66 kg - 23.3 oz.

The Johnson Pump Ultima Bilge Pump Model 38966 provides reliable and efficient bilge management for marine applications, combining advanced sensing technology with durable construction. Designed for boats and marine vessels, this compact all-in-one unit features the innovative Ultima "field effect" sensing technology seamlessly integrated into the pump body, ensuring dependable operation without the need for external sensors or complex wiring. The pump is powered by a 12 V DC motor, water-cooled for extended service life, and capable of pumping up to 1000 gallons per hour at optimal head height, making it ideal for a range of bilge drainage needs. Its corrosion-resistant ABS pump body, stainless steel shaft, and water-cooled motor contribute to longevity and consistent performance even in harsh marine environments. The pump includes a removable check valve for easy maintenance and a clip-on basket that simplifies debris removal, ensuring smooth operation and preventing clogging. The unit also features a removable impeller cover for quick cleaning, and the 3-wire design allows for both automatic operation and manual override via the Johnson Pump bilge control panel, providing versatile control options. The Dura-Port discharge ports, included for models like 600 GPH and 1000 GPH, facilitate stress-free hose connections, minimizing cracking and leaks, with the ports supporting both straight and 90-degree fittings for flexible installation. This CE-approved bilge pump is designed for long-term reliability, energy efficiency, and ease of maintenance, making it an excellent choice for marine safety and performance. Whether installed in new vessels or used for replacement, the Ultima Bilge Pump ensures peace of mind with its robust construction and intelligent sensing technology, backed by comprehensive user documentation available online. Protect your vessel with a high-performance bilge pump engineered for durability and ease of use, ensuring your boat stays dry and safe in all conditions.

Features:

• Integrated Ultima 'field effect' sensing technology for reliable automatic operation

• Compact, all-in-one design with built-in switch and easy installation

• Includes both straight and 90-degree Dura-Port discharge fittings for stress-free hose connection

• Removable check valve and impeller cover for simple maintenance and debris removal

• Water-cooled motor for extended service intervals and long-term durability

• Corrosion-resistant ABS pump body and stainless steel shaft for harsh marine conditions

• Operates at 12 V DC with a maximum capacity of 1000 GPH at optimal head height

• Three-wire configuration allows for automatic or manual operation

• CE-approved for safety and quality assurance

• Designed without mercury, environmentally friendly and safe for marine use

Truck Freight: No
Oversized: No
Owners Manual Url: https://productimageserver.com/literature/ownersManual/38966OM.pdf
