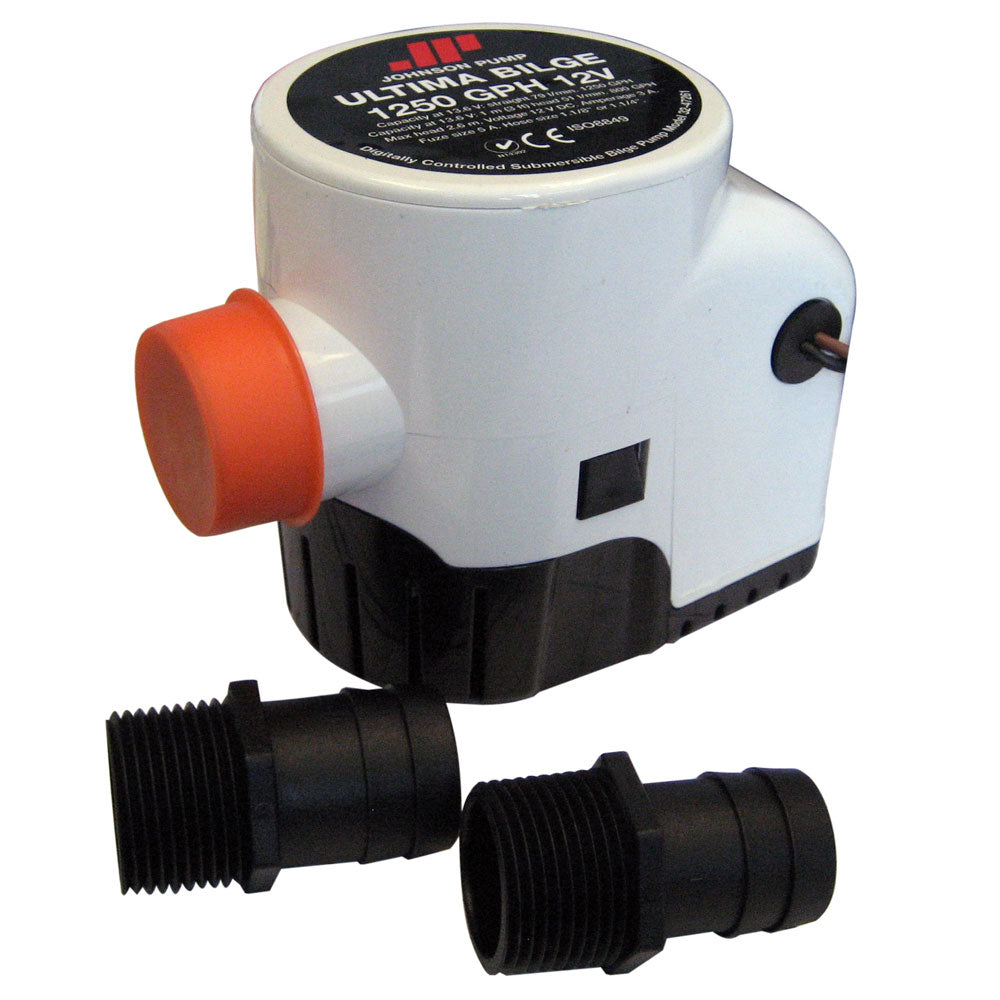

Johnson Pump Ultima Bilge Pump 1250 GPH with Integrated Switch and Dura-Port Discharge - 12V DC

Ultima Bilge Pump
UltimaBilge Pumps are the latest addition to the Johnson Pump brand lineup. Integration of the Ultima "field effect" sensing technology into the bilge pump body creates a sleek, reliable and compact unit with integrated switch ready to install and run for years and years of unerring service. Available in 600-800-1000-1250 GPH versions. Voltage 12 V DC. For UltimaBilge 600 GPH-1000 GPH, we have easy-to-install Dura-Port discharge ports to eliminate stress cracking caused by over-tightened hose clamps. The pumps are delivered including both a straight and a 90 degree smooth elbow Dura-Port. For UltimaBilge 1250GPH we include threaded 1.1/4" & 1.1/8" discharge port.

All version are delivered with a removable check valve.

The Ultima Bilge pumps may be manually operated via the Johnson Pump bilge control panel.
CE-Approved

Features:

• Compact, all-in-one unit

• Integrated Ultima Switch sensing right into the pump body

• No Mercury

• Removable clip on basket design

• Removable impeller cover allows for easy clean out

• 3-wire device can be run in auto or manual override mode

• No tools needed for maintenance

• Extremely energy efficient

• Water-cooled motor for long service intervals

• Pump Body: ABS

• Shaft Seal: Lip Seal

• Shaft: Stainless steel (SS2343)

• Voltage: 12 V DC

• Capacity 3 ft (0.9 m) head (13.6 V): 51 l/min - 800 GPH

• Capacity straight (13.6 V): 79 l/min - 1250 GPH

• Amperage: 3 A

• Fuse Size: 5 A

• Connection: 1-1/8" and 1-1/4"

• Length:142 mm - 6"

• Width:82 mm - 3.2"

• Height:117 mm - 4.6"

• Weight:0.66 kg - 23.3 oz.

The Johnson Pump Ultima Bilge Pump model 32-47261-002 offers reliable, efficient bilge pumping power for marine applications, featuring advanced Ultima "field effect" sensing technology integrated directly into the pump body for seamless operation. Designed to provide high-capacity drainage, this pump delivers up to 1250 gallons per hour at a 3-foot head, ensuring your bilge remains dry and your vessel stays safe. The compact all-in-one unit includes an integrated switch for automatic operation, with manual override capability, making it adaptable to various bilge management systems. Its water-cooled motor and energy-efficient design promise long service intervals and dependable performance over years of use. The pump body is constructed from durable ABS, with a stainless steel shaft and a lip seal for enhanced durability and corrosion resistance. The pump includes both straight and 90-degree Dura-Port discharge fittings, along with threaded options for flexible installation, and a removable check valve to prevent backflow. Maintenance is straightforward with a removable impeller cover and clip-on basket, eliminating the need for tools and simplifying cleaning processes. The Johnson Pump Ultima Bilge Pump is CE-approved, ensuring compliance with international safety and quality standards, making it an ideal choice for boat owners seeking a reliable, high-capacity bilge pump that combines innovative technology with ease of maintenance. Whether installed in recreational or commercial vessels, this pump’s robust design and user-friendly features provide peace of mind during every voyage.

**Features:**
- Compact, all-in-one unit with integrated Ultima switch sensing
- High-capacity flow rates up to 1250 GPH at 3-foot head
- Includes both straight and 90-degree Dura-Port discharge fittings
- Threaded discharge ports for flexible installation options
- Removable check valve to prevent backflow
- Easy maintenance with tool-free impeller cover and basket
- Energy-efficient, water-cooled motor for long-lasting performance
- Made from durable ABS with stainless steel shaft and lip seal
- CE-approved for safety and quality assurance

Features:

• Compact, all-in-one unit with integrated Ultima switch sensing

• High-capacity flow rates up to 1250 GPH at 3-foot head

• Includes both straight and 90-degree Dura-Port discharge fittings

• Threaded discharge ports for flexible installation options

• Removable check valve to prevent backflow

• Easy maintenance with tool-free impeller cover and basket

• Energy-efficient, water-cooled motor for long-lasting performance

• Made from durable ABS with stainless steel shaft and lip seal

• CE-approved for safety and quality assurance

Truck Freight: No
Oversized: No
Owners Manual Url: https://productimageserver.com/literature/ownersManual/38967OM.pdf
