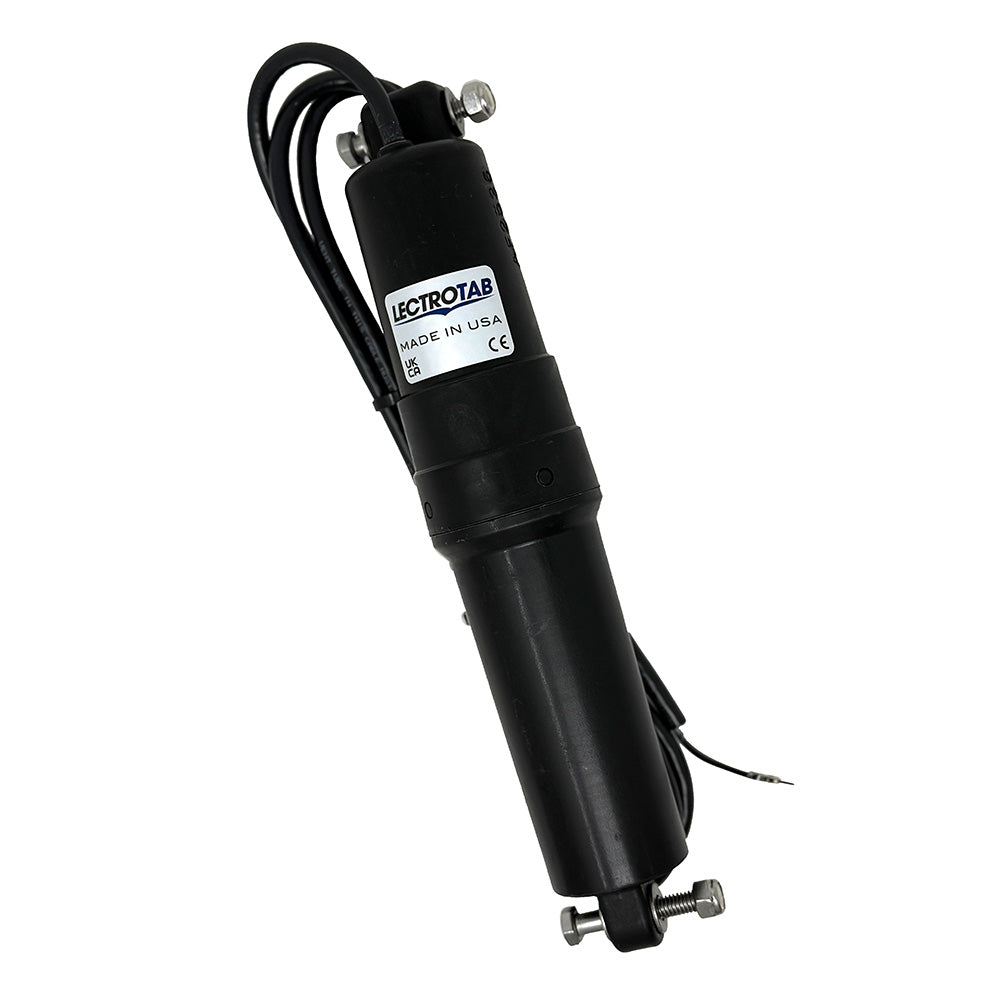

12V Heavy Duty Tab Actuator - 6 Cable for Everglades Boats
Lectrotab meets the needs of boats operating at high speeds or in rough conditions by offering its heavy-duty trim tab actuator. Lectrotab heavy-duty trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance-free design.
The unit is corrosion-free, ensures precise tab positioning, provides maximum lift force, and is completely self-contained for easy installation. The actuator assembly is packaged in a non-metallic, permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates a standard or low-profile transom mounting bracket.
Compatible With:
Features:
- Reinforced actuator upper mounting boss
- The upper ram seal location cannot be damaged due to a fouled ram or barnacle growth
- Utilizes an internal pressure equalization system
- Internal brake system prevents unwanted tab movement when underway or backing down
- Quiet operation
- All actuators are fully load-tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or underwater
Technical Specifications:
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25 (57 mm)
- Actuator Cable Length - 6 (1.8 M)
- Actuator Vertical Height - 11.875 (302 mm)
- Connectors - Deutsch style
*Sold as an Individual
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Lectrotab A-BK-26 12V Heavy-Duty Trim Tab Actuator is designed for Everglades Boats operating at high speeds or in rough conditions. This precision-engineered trim tab actuator provides quiet, dependable operation with a non-hydraulic, maintenance-free design that eliminates the need for oil and internal boat components.
The corrosion-free actuator is completely self-contained for straightforward installation and precise trim tab positioning. Its permanently sealed, non-metallic housing is designed to resist corrosion and deterioration from sun or underwater exposure. A reinforced upper mounting boss, internal pressure equalization system, and internal brake system help support reliable operation, while the actuator is fully load-tested to push 1,000 pounds of force.
The Lectrotab actuator includes a standard or low-profile transom mounting bracket and uses Deutsch-style connectors. Its protected upper ram seal location helps prevent damage caused by a fouled ram or barnacle growth. This actuator is sold individually and is intended for compatible Everglades Boats applications.
Key Features:
-
Heavy-duty trim tab actuator: Provides maximum lift force and is load-tested to push 1,000 pounds of force.
-
Non-hydraulic design: Uses no oil, helping eliminate concerns about hydraulic fluid leaks.
-
Corrosion-resistant construction: Non-metallic external housing resists corrosion and deterioration from sunlight or underwater exposure.
-
Quiet operation: Precision-engineered for quieter trim tab adjustment.
-
Protected actuator design: Reinforced upper mounting boss and protected upper ram seal location help support durability.
-
Internal brake system: Helps prevent unwanted trim tab movement while underway or backing down.
Product Details:
-
Brand: Lectrotab
-
Part number: A-BK-26
-
Product type: Heavy-duty trim tab actuator
-
Compatibility: Everglades Boats
-
Actuator voltage: 12 volts DC
-
Actuator stroke length: 2.25 inches
-
Actuator cable length: 6 feet
-
Actuator vertical height: 11.875 inches
-
Connectors: Deutsch style
-
Quantity: Sold individually
Important: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Choose the Lectrotab A-BK-26 for a self-contained, non-hydraulic trim tab actuator built for compatible Everglades Boats applications.
