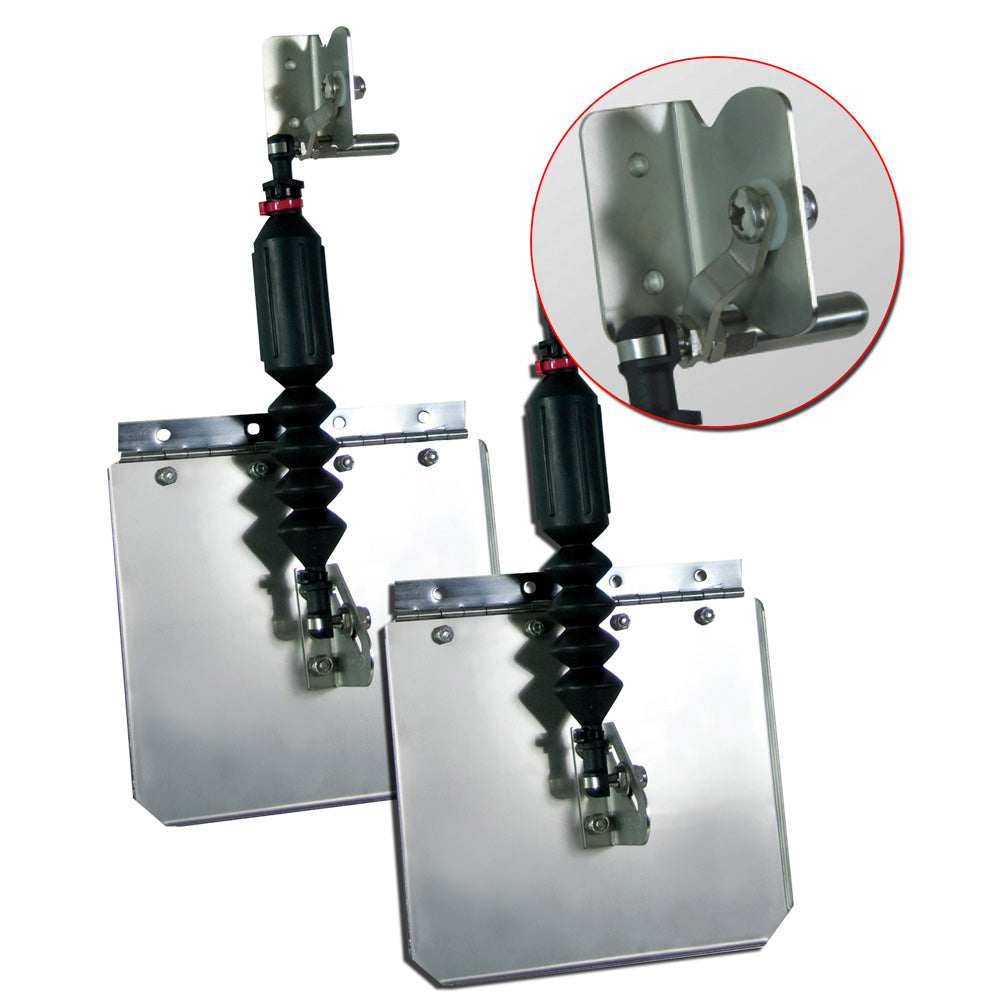

Lectrotab Smart Tabs Pro Troller Series for 12-16 ft Boats with 40-80 HP

Pro Troller Smart Tabs Series for 12-16 Boats with 40 - 80 HP

Trolling Brakes Trim Tabs All in One!

The ProTroller series incorporates the ability to turn SMART TABS into trolling brakes. By simply moving a lever up or down, ProTroller Smart Tabs switch between the most effective trim and stabilizer system on the market to the most effective trolling brakes.

TROLLING BRAKES:

With the levers in the down position, the plates drop down to create equal braking on both sides of the boats, providing the added benefit of tracking straight at ultra-low speeds. Steering control is maintained because the propeller is not restricted, as with other systems.

TRIM TABS:

Move the lever up to the running position and enjoy the performance and efficiency of automatic trim tabs. Better ride and handling, faster acceleration, more top speed, and better fuel economy are only a few of the benefits you get with SMART TABS. Not only are they completely automatic, but they can be fine-tuned to each boat and to the boaters preference. This unlimited versatility provides performance enhancement unmatched by any other product, and its GUARANTEED!

If these trim tabs dont provide you with an outstanding performance increase, contact us within 30 days of your purchase.

Why buy a manually adjusting trim tab set when you can get the automatic trim tabs that will self-adjust and perform better for less money

The SX series incorporates all of the fully automatic features of our popular SMART TABS, in addition to the rust and corrosion-free benefits of molded composite materials. Assembly can be completed in seconds, and the installation in a few minutes. The only tools required are a drill with a 3/16 bit and a Phillips screwdriver. SMART TABS SX provide unequaled performance and durability with no maintenance in fresh or salt water. The system can be specifically tuned to maximize the performance of any power boat, and TRACKING RIBS have been added to improve handling at higher speeds.

Our breakthrough technology in trim tabs is completely automatic, requiring no operator adjustment while underway. Nauticus trim tabs self-adjust according to how you load and maneuver your boat.

The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation.

• Reduce the minimum planning speed by up to 33%
• Faster Acceleration
• Increase top speed
• Provide a level, more comfortable ride at lower speeds
• Improve fuel economy, handling, and safety

NO HYDRAULICS - NO ELECTRIC SWITCHES

Nauticus trim tabs are completely automatic requiring no operator adjustment while underway.

The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation.(see installation instruction).

SPEED REGULATION

Nauticus trim tabs start in a downward angel to maximize lift at slow speeds. As the boat accelerates, the water pushes up on the trim plates providing lift to the stern which minimizes bow rise, and allows the boat to plane quickly.

Once the water pressure exceeds the actuator load rating (maximum lift) the trim plates move up to a horizontal position eliminating any drag.

BOAT STABILIZERS

Even when cruising SMART TABS continue to work like shock absorbers. The constant adjustment to sea conditions allow SMART TABS to provide remarkable stability in turns, while crossing waves, while cruising, and while running at maximum speeds. No more sliding, porpoising, or chine walking.

ONE OF A KIND

The unique system is the only one of its kind in the industry. The internal valve system is truly smart in its design of controlling you boats performance.

It will reduce the minimum planning speed by 33%

Provide a level, more comfortable ride at lower speeds

Improve economy, handling and safety

As the boat speed increases, the water pressure also increases. Once the water pressure exceeds the Actuator load rating (maximum LIFT period) the trim plates begin to move upward until they are horizontal with the bottom of the boat.

The internal valve system dampens the trim plate movement which eliminates any instant reaction to minor water pressure variances. Nauticus trim tabs provide smooth and undetectable reaction to boat speed creating a level, more comfortable ride at lower speeds.

INSTALLATION IS SIMPLE

With an electric drill, small drill bit, a phillips screwdriver, and two wrenches, just about anyone can install SMART TABS in less than an hour. Professional installers should be able to install SMART TABS in 30 minutes or less.

*All mounting hardware, instructions, and templates are included.

*SMART TABS require NO THROUGH HULL DRILLING

The Lectrotab Smart Tabs Pro Troller Series is a versatile and innovative trim tab system designed specifically for 12 to 16-foot boats with 40 to 80 horsepower engines. This all-in-one solution seamlessly combines automatic trim and stabilizer functions with the unique ability to switch into trolling brakes, providing unmatched control and performance. The system's intuitive design allows boaters to effortlessly toggle between optimal trim and precise trolling brakes using a simple lever movement, enabling quick adaptation to changing water conditions and navigation needs. This feature ensures your boat maintains the best possible handling whether you're cruising at high speeds or trolling at ultra-low speeds for fishing.

The trolling brake mode activates by dropping the plates to create equal braking on both sides of the boat, which helps in tracking straight at very low speeds without restricting steering control, unlike traditional systems. When switched to trim mode, the Smart Tabs automatically adjust to improve ride quality, acceleration, top speed, and fuel efficiency. Fine-tuning options allow for personalized performance adjustments, ensuring optimal handling for various boat loads and operating conditions. Constructed from molded composite materials, the SX series offers rust and corrosion resistance, durability, and easy installation in minutes with minimal tools. The inclusion of TRACKING RIBS enhances handling at higher speeds, making the system suitable for a wide range of boating activities.

Powered by a nitrogen gas actuator, the system provides automatic lift at the stern during acceleration, reducing planning speeds by up to 33% and delivering a smoother, more comfortable ride. It automatically self-adjusts based on boat load and maneuvering, eliminating the need for operator input while underway. The internal valve system ensures smooth responses to water pressure variations, preventing abrupt movements and maintaining stability even in rough seas. This technology results in improved handling, increased safety, and better fuel economy. The system's design requires no hydraulic components or electric switches, making it maintenance-free and reliable in both freshwater and saltwater environments.

Installation is straightforward, taking less than an hour with basic tools, and all necessary hardware, instructions, and templates are included. Whether you're looking to enhance your boat’s performance, stability, or fuel efficiency, the Lectrotab Smart Tabs Pro Troller Series offers a guaranteed upgrade that transforms your boating experience. Contact the manufacturer within 30 days if performance does not meet your expectations, and enjoy the benefits of the most advanced, automatic trim tab system available today.

Features:

• Switchable between trim/stabilizer and trolling brakes with a simple lever movement

• Creates equal braking for tracking straight at ultra-low speeds

• Automatically adjusts to improve ride, acceleration, and fuel economy

• Constructed from corrosion-resistant molded composite materials

• Easy to install with minimal tools and no through-hull drilling

• Provides automatic lift during acceleration to reduce planning speed

• Self-adjusts based on boat load and maneuvering for optimal performance

• Includes tracking ribs for enhanced handling at higher speeds

• Requires no hydraulics or electric switches for operation

• Designed for boats with 12-16 feet length and 40-80 HP engines
