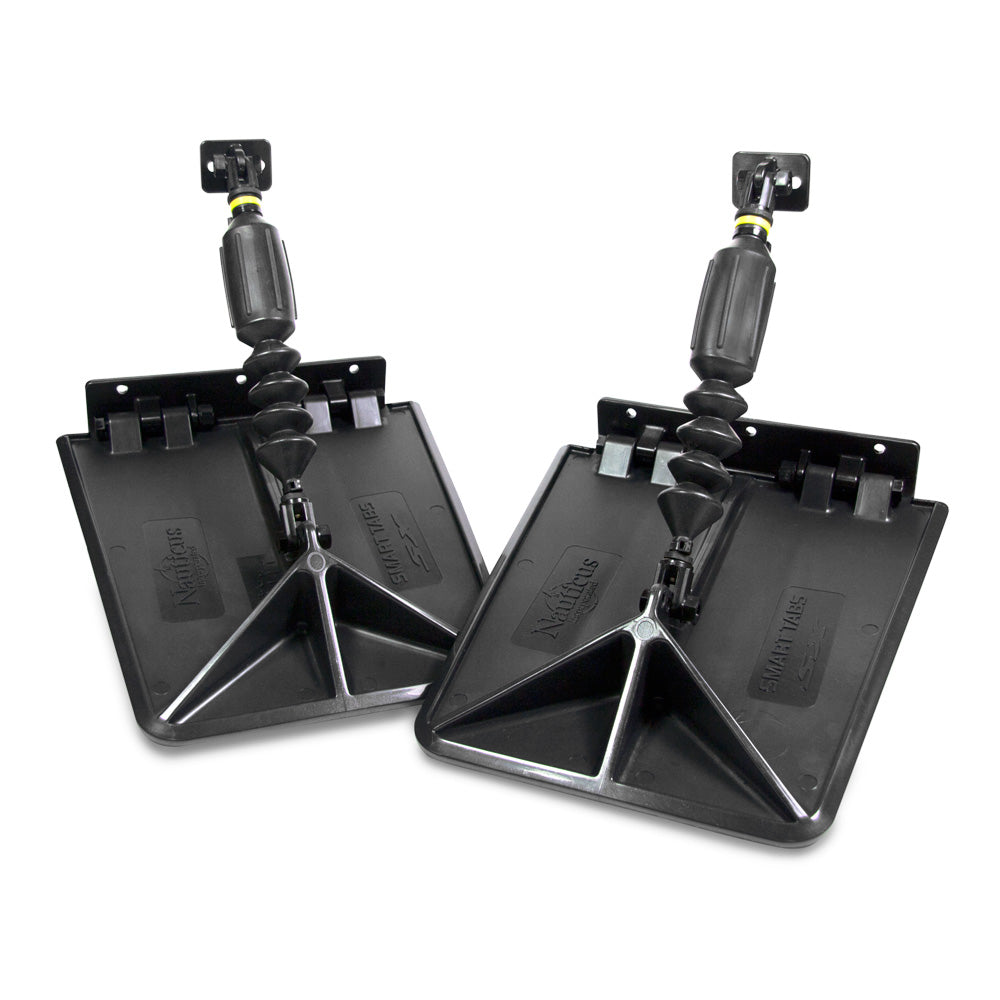

Lectrotab Smart Tabs SX Series 10.5 x 12 for 21-25 Foot Boats Up to 350 HP

Smart Tabs SX Series 10.5 X 12 for 21-25 Boats Up To 350 HP

If these trim tabs dont provide you with an outstanding performance increase, contact us within 30 days of your purchase.

Why buy a manually adjusting trim tab set when you can get the automatic trim tabs that will self-adjust and perform better for less money

The SX series incorporates all of the fully automatic features of our popular SMART TABS, in addition to the rust and corrosion-free benefits of molded composite materials. Assembly can be completed in seconds, and the installation in a few minutes. The only tools required are a drill with a 3/16 bit and a Phillips screwdriver. SMART TABS SX provide unequaled performance and durability with no maintenance in fresh or salt water. The system can be specifically tuned to maximize the performance of any power boat, and TRACKING RIBS have been added to improve handling at higher speeds.

Our breakthrough technology in trim tabs is completely automatic, requiring no operator adjustment while underway. Nauticus trim tabs self-adjust according to how you load and maneuver your boat.

The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation.

• Reduce the minimum planning speed by up to 33%
• Faster Acceleration
• Increase top speed
• Provide a level, more comfortable ride at lower speeds
• Improve fuel economy, handling and safety

NO HYDRAULICS - NO ELECTRIC SWITCHES

Nauticus trim tabs are completely automatic requiring no operator adjustment while underway.

The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation. (see installation instruction).

SPEED REGULATION

Nauticus trim tabs start in a downward angel to maximize lift at slow speeds. As the boat accelerates, the water pushes up on the trim plates providing lift to the stern which minimizes bow rise, and allows the boat to plane quickly.

Once the water pressure exceeds the actuator load rating (maximum lift) the trim plates move up to a horizontal position eliminating any drag.

BOAT STABILIZERS

Even when cruising SMART TABS continue to work like shock absorbers. The constant adjustment to sea conditions allow SMART TABS to provide remarkable stability in turns, while crossing waves, while cruising, and while running at maximum speeds. No more sliding, porpoising, or chine walking.

ONE OF A KIND

The unique system is the only one of its kind in the industry. The internal valve system is truly smart in its design of controlling you boats performance.

It will reduce the minimum planning speed by 33% Provide a level, more comfortable ride at lower speeds Improve economy, handling and safety

As the boat speed increases, the water pressure also increases. Once the water pressure exceeds the Actuator load rating (maximum LIFT period) the trim plates begin to move upward until they are horizontal with the bottom of the boat.

The internal valve system dampens the trim plate movement which eliminates any instant reaction to minor water pressure variances. Nauticus trim tabs provide smooth and undetectable reaction to boat speed creating a level, more comfortable ride at lower speeds.

INSTALLATION IS SIMPLE

With an electric drill, small drill bit, a phillips screwdriver, and two wrenches, just about anyone can install SMART TABS in less than an hour. Professional installers should be able to install SMART TABS in 30 minutes or less.

*All mounting hardware, instructions, and templates are included.

*SMART TABS require NO THROUGH HULL DRILLING

Upgrade your boat's performance with the Lectrotab Smart Tabs SX Series, designed specifically for 21 to 25-foot boats with up to 350 horsepower. These fully automatic trim tabs feature advanced self-adjusting technology that enhances handling, stability, and efficiency without the need for operator intervention. Made from durable, corrosion-resistant molded composite materials, the SX series ensures reliable operation in both freshwater and saltwater conditions, providing you with a maintenance-free solution that lasts for years. Installation is straightforward and quick, requiring only a drill with a 3/16 inch bit, a Phillips screwdriver, and minimal time—most installations can be completed in less than an hour, making them ideal for DIY enthusiasts and professional installers alike.

These trim tabs utilize a nitrogen gas actuator to provide lift at the stern, helping your boat achieve faster planing and reducing minimum planning speeds by up to 33%. As your boat accelerates, the water pressure naturally causes the trim plates to adjust upward, minimizing drag and maximizing top speed. The system is intelligently designed to dampen minor water pressure fluctuations, ensuring smooth, undetectable reactions that contribute to a more comfortable ride. Whether crossing waves or cruising at high speeds, the Smart Tabs SX Series constantly adjust to sea conditions, functioning like shock absorbers to provide remarkable stability and control. This results in a safer, more efficient, and enjoyable boating experience, with improved fuel economy and handling.

The innovative internal valve system and tracking ribs further enhance performance, allowing the trim system to be precisely tuned to your boat’s unique characteristics. The absence of hydraulics or electronic switches simplifies operation and reduces potential points of failure, making these trim tabs a dependable choice for serious boaters. As the boat speeds up, the trim plates move from a downward angle to a horizontal position, reducing drag and optimizing lift for a swift, smooth ride. Designed for ease of installation, all necessary hardware, instructions, and templates are included, and no through-hull drilling is required. With their exceptional durability, ease of use, and superior performance, the Lectrotab Smart Tabs SX Series are an excellent upgrade for boat owners seeking enhanced control and comfort on the water.

Features:

• Fully automatic self-adjusting system for enhanced handling and stability

• Constructed from corrosion-resistant molded composite materials for durability in saltwater and freshwater

• Simple installation requiring only a drill, Phillips screwdriver, and wrenches—most in less than an hour

• Nitrogen gas actuator provides lift at the stern during acceleration, reducing planning speed

• Smooth, dampened reactions to water pressure variances for a comfortable ride

• Adjusts trim plates from downward angle to horizontal to minimize drag and maximize speed

• Designed to improve fuel economy, handling, and safety during all boating conditions

• No hydraulics or electronic switches needed, ensuring reliability and ease of maintenance

• Tracking ribs enhance handling at higher speeds
