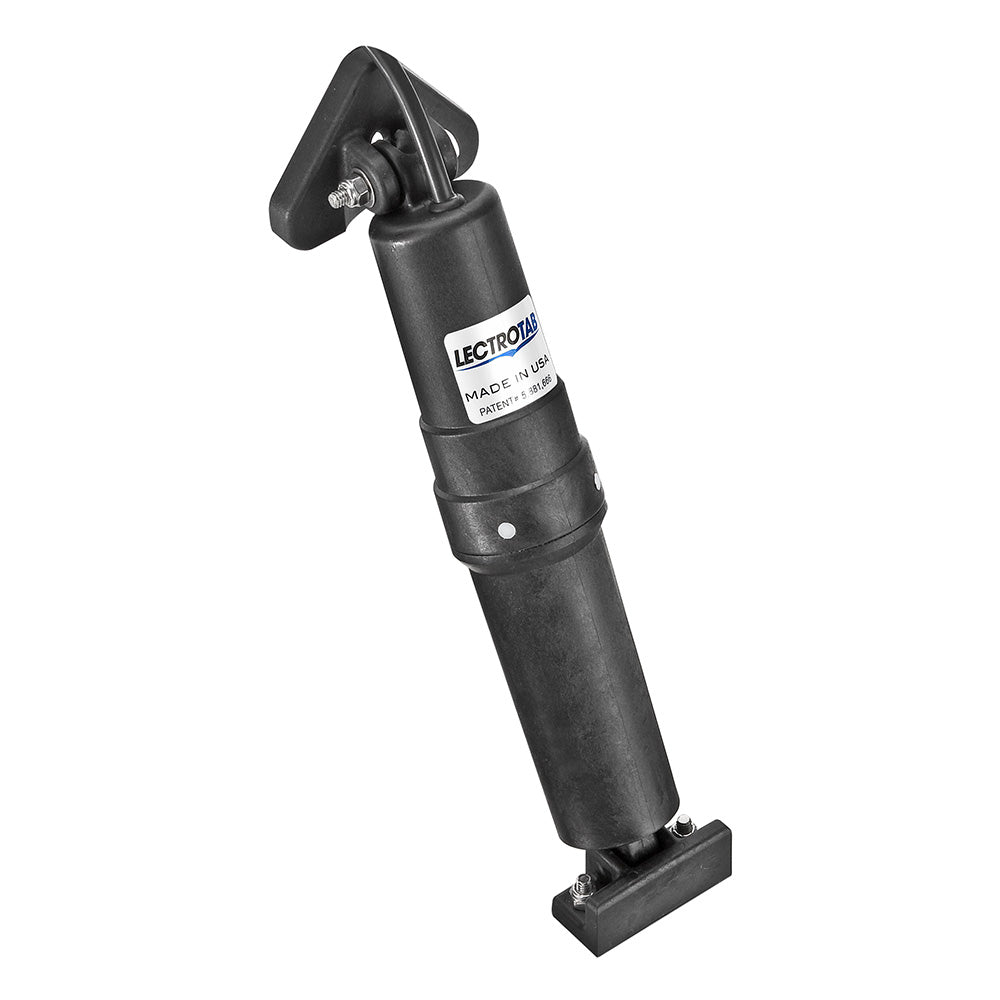

Lectrotab Standard 12V Trim Tab Actuator with 28-Foot Cable - Model A-BK-24

Lectrotab Standard 12V Trim Tab Actuator with 28-Foot Cable - Model A-BK-24

113835

$273.97 USD
$273.97 USD
Sale Sold out
Always Free Shipping—No Minimum Order. Contiguous U.S. orders only. Alaska and Hawaii excluded.

6 in stock

Need help finding the right part? Have your equipment make, model, year and part number handy.

  • 30-Day Returns
  • Secure Checkout
  • Always Free Shipping—No Minimum Order · Contiguous U.S. orders only. Alaska and Hawaii excluded.

Shipping & Delivery

Always Free Shipping—No Minimum Order
Contiguous U.S. orders only. Alaska and Hawaii excluded.

Returns & Refunds

Eligible items may be returned within 30 days of delivery. Items must be new, unused, uninstalled, and in original packaging. An RMA is required.

Installment options at checkout are provided by Shop Pay and its partners and are subject to eligibility. Options depend on your purchase amount and may require a credit check by the financing partner. Terms, rates, and eligibility are determined by the financing partner. For details, see the Shop Pay Installments terms during checkout.

Standard Trim Tab Actuator - 12V - 28 Cable

Lectrotab trim tab actuators are precision-engineered to combine quiet operation with a non-hydraulic, maintenance-free design. The unit is corrosion-free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic, permanently sealed housing. No components need to be installed inside the boat. Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low-profile transom mounting bracket. Actuators come in 12 and 24 VDC with an 8-second recommended stroke time or a 4-second stroke time.

Features:

  • Actuator DC Voltage - 12V
  • 28 Cable
  • The upper ram seal location cannot be damaged due to a fouled ram or barnacle growth
  • Utilizes an internal pressure equalization system
  • Upgrades to the most popular hydraulic and electromechanical systems
  • Internal brake system prevents unwanted tab movement when underway or backing down
  • Quiet operation
  • All actuators are fully load tested to push 1000 lbs of force
  • Non-metallic external structure that cannot corrode and will not deteriorate in the sun or underwater

Specifications:

  • Model: A-BK-24
  • DC Voltage: 12VDC
  • Stroke Length: 2.25/57mm
  • Stroke Speed: 8 sec
  • Distance from Bolt to Pin: 11.5/292mm
  • Vertical Height (Typical Installation Fully Retracted):11.875/302mm
  • Cable Length (Feet/Meter): 28/8.5m
  • Upper Mounting Bracket: Standard
  • Lower Mounting Bracket: Standard
  • Use Actuator with Tabs: All Tabs

*Sold as an Individual
Truck Freight: No
Oversized: No
