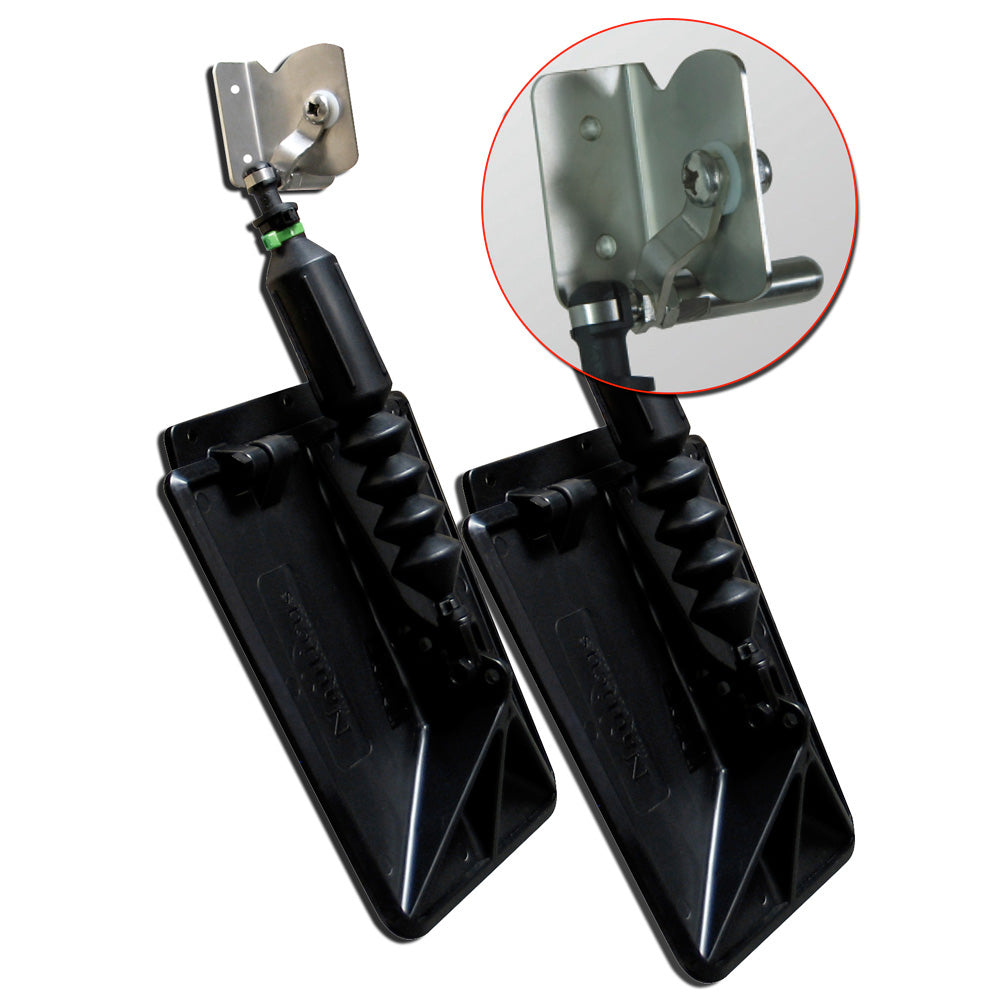

Lectrotab SX ProTroller Series Trim Tabs 9.5 x 10 for 17-20 Foot Boats with 80-175 HP

SX ProTroller Series Trim Tabs 9.5 X 10 for 17-20 Boats with 80-175 HP

Trolling Brakes Trim Tabs All in One!

The ProTroller series incorporates the ability to turn SMART TABS into trolling brakes. By simply moving a lever up or down, ProTroller Smart Tabs switch between the most effective trim and stabilizer system on the market to the most effective trolling brakes.

TROLLING BRAKES:

With the levers in the down position, the plates drop down to create equal braking on both sides of the boats, providing the added benefit of tracking straight at ultra-low speeds. Steering control is maintained because the propeller is not restricted, as with other systems.

TRIM TABS:

Move the lever up to the running position and enjoy the performance and efficiency of automatic trim tabs. Better ride and handling, faster acceleration, more top speed, and better fuel economy are only a few of the benefits you get with SMART TABS. Not only are they completely automatic, but they can be fine-tuned to each boat and to the boaters preference. This unlimited versatility provides performance enhancement unmatched by any other product, and its GUARANTEED!

If these trim tabs dont provide you with an outstanding performance increase, contact us within 30 days of your purchase.

Why buy a manually adjusting trim tab set when you can get the automatic trim tabs that will self-adjust and perform better for less money

The SX series incorporates all of the fully automatic features of our popular SMART TABS, in addition to the rust and corrosion-free benefits of molded composite materials. Assembly can be completed in seconds, and the installation in a few minutes. The only tools required are a drill with a 3/16 bit and a Phillips screwdriver. SMART TABS SX provide unequaled performance and durability with no maintenance in fresh or salt water. The system can be specifically tuned to maximize the performance of any power boat, and TRACKING RIBS have been added to improve handling at higher speeds.

Our breakthrough technology in trim tabs is completely automatic, requiring no operator adjustment while underway. Nauticus trim tabs self-adjust according to how you load and maneuver your boat.

The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation.

• Reduce the minimum planning speed by up to 33%
• Faster Acceleration
• Increase top speed
• Provide a level, more comfortable ride at lower speeds
• Improve fuel economy, handling, and safety

NO HYDRAULICS - NO ELECTRIC SWITCHES

Nauticus trim tabs are completely automatic requiring no operator adjustment while underway.

The nitrogen Gas Actuator provides LIFT at the stern of the boat by holding the trim plate down during acceleration. The amount of LIFT is determined by the actuator load rating and the trim plate adjustment, which is done at the time of installation.(see installation instruction).

SPEED REGULATION

Nauticus trim tabs start in a downward angel to maximize lift at slow speeds. As the boat accelerates, the water pushes up on the trim plates providing lift to the stern which minimizes bow rise, and allows the boat to plane quickly.

Once the water pressure exceeds the actuator load rating (maximum lift) the trim plates move up to a horizontal position eliminating any drag.

BOAT STABILIZERS

Even when cruising SMART TABS continue to work like shock absorbers. The constant adjustment to sea conditions allow SMART TABS to provide remarkable stability in turns, while crossing waves, while cruising, and while running at maximum speeds. No more sliding, porpoising, or chine walking.

ONE OF A KIND

The unique system is the only one of its kind in the industry. The internal valve system is truly smart in its design of controlling you boats performance.

It will reduce the minimum planning speed by 33%

Provide a level, more comfortable ride at lower speeds

Improve economy, handling and safety

As the boat speed increases, the water pressure also increases. Once the water pressure exceeds the Actuator load rating (maximum LIFT period) the trim plates begin to move upward until they are horizontal with the bottom of the boat.

The internal valve system dampens the trim plate movement which eliminates any instant reaction to minor water pressure variances. Nauticus trim tabs provide smooth and undetectable reaction to boat speed creating a level, more comfortable ride at lower speeds.

INSTALLATION IS SIMPLE

With an electric drill, small drill bit, a phillips screwdriver, and two wrenches, just about anyone can install SMART TABS in less than an hour. Professional installers should be able to install SMART TABS in 30 minutes or less.

*All mounting hardware, instructions, and templates are included.

*SMART TABS require NO THROUGH HULL DRILLING

Enhance your boat's performance with the Lectrotab SX ProTroller Series Trim Tabs, designed specifically for 17-20 foot boats with engines ranging from 80 to 175 horsepower. These innovative trim tabs combine automatic functionality with the versatility of switching between trim and trolling brake modes, providing you with unmatched control and stability on the water.
Featuring the unique ability to transform from self-adjusting trim tabs to effective trolling brakes with a simple lever movement, the SX ProTroller Series ensures optimal boat handling under various conditions. When in trolling brake mode, the plates drop down to create equal braking on both sides, helping your boat track straight at ultra-low speeds without restricting steering or propeller movement. When switched to trim mode, the system automatically adjusts to deliver faster acceleration, higher top speeds, improved fuel efficiency, and a smoother, more comfortable ride. These automatic adjustments are fine-tuned during installation to suit your specific boat and driving style.
The system's durability is built for both saltwater and freshwater use, thanks to its molded composite construction that resists rust and corrosion. Installation is straightforward, requiring only basic tools like a drill and screwdriver, and can be completed in minutes by most boat owners or professional installers. The nitrogen gas actuator provides consistent lift at the stern during acceleration, reducing planning speeds by up to 33% and helping your boat reach optimal trim quickly and efficiently. The built-in tracking ribs and dampening valve system further enhance handling at higher speeds, minimizing chine walk and porpoising for a more stable ride.
Designed for safety, performance, and ease of use, the Nauticus SMART TABS SX series offers a maintenance-free solution that automatically adjusts to boat load and sea conditions, ensuring a level, comfortable ride in all situations. Whether cruising, crossing waves, or running at maximum speeds, these trim tabs deliver superior stability, handling, and efficiency, making them a must-have upgrade for serious boaters seeking the best in performance enhancement.

Features:

• Switchable trim and trolling brake modes for versatile performance

• Automatic self-adjusting operation for optimal handling

• Constructed from corrosion-resistant molded composite materials

• Nitrogen gas actuator provides reliable stern lift during acceleration

• Reduces minimum planning speed by up to 33%

• Enhances boat stability, handling, and fuel economy

• Simple installation requiring basic tools, no through-hull drilling

• Designed for use in both saltwater and freshwater environments

• Built-in tracking ribs for improved high-speed handling

• Dampening valve system ensures smooth trim adjustments
