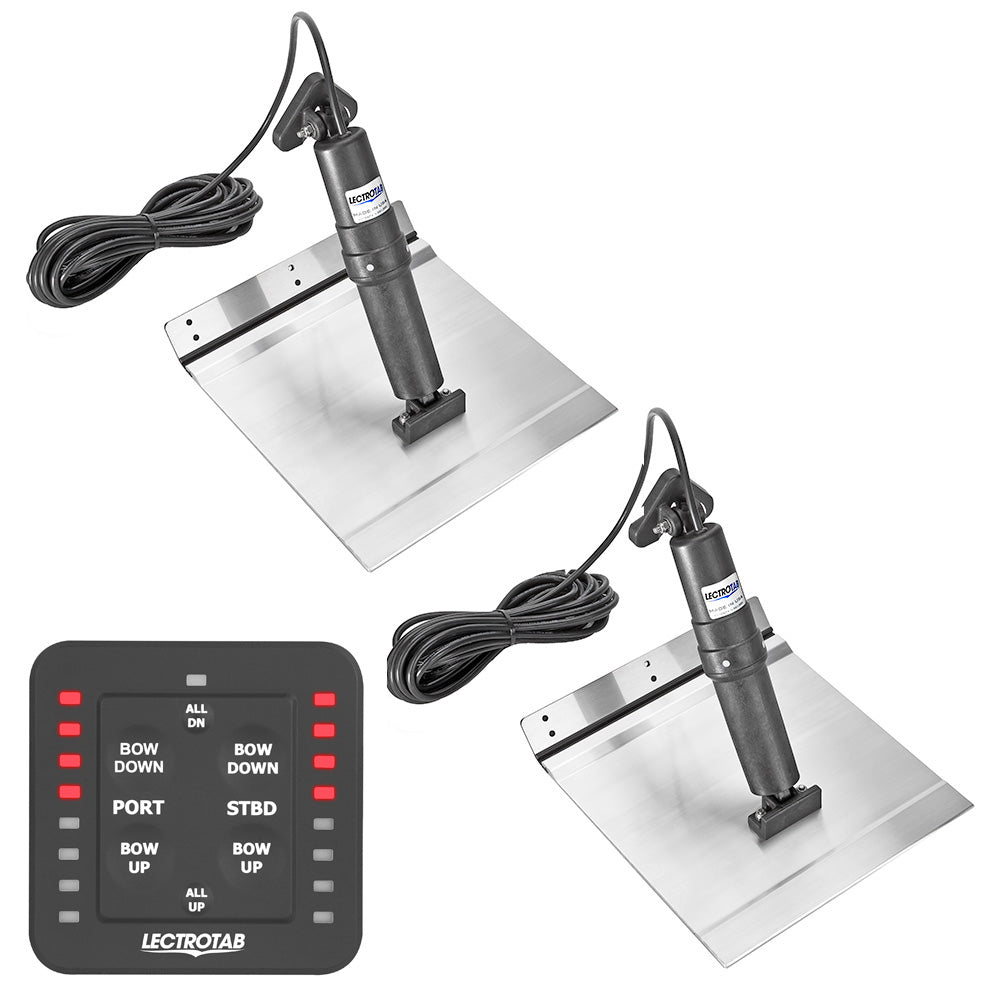

XKA Aluminum Alloy Trim Tab Kit with One-Touch Control - 12 x 12
The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.
Features:
- All Tabs sealed with a corrosive resistant epoxy coating
- Equivalent strength to 10 gauge stainless steel
- "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm)
- Boat Length - 18' to 32' (5.5 to 9.5 M)
- Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
- Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
- Rocker Switch Operating Voltage - 12 or 24 V
In the Box:
- One (1) One-Touch Control
- Two (2) Aluminum Alloy tabs
- Two (2) actuators w/23' (7 M) cables
- Instruction Manual
*Sold as a Kit
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Lectrotab XKA Aluminum Alloy Trim Tab Kit with One-Touch Control is designed for aluminum-hulled boats and other boats requiring an economical, non-hydraulic trim tab system. The kit includes two marine-grade aluminum alloy trim tabs, two electric actuators, and a one-touch leveling LED control to help you make precise trim adjustments from the helm.
Each trim tab is sealed with a corrosion-resistant epoxy coating and uses a strong polypropylene hinge designed for repeated operation. The self-contained actuator assembly provides quiet operation, accurate tab positioning, and up to 1,000 pounds of push force. Because the system is electric rather than hydraulic, it does not use oil, and the sealed actuator housing requires no components to be installed inside the boat.
The Lectrotab XKA system is intended for boats from 18 to 32 feet in length. Its internal pressure equalization and brake systems support consistent operation while underway or backing down, while the non-metallic external actuator structure is designed to resist corrosion and deterioration from sunlight or water exposure. The actuator uses a standard or low-profile transom mounting bracket and includes a 23-foot cable for installation flexibility.
Key Features:
-
Marine-grade aluminum construction: Trim tabs are made from 6005-T5 aluminum alloy and sealed with a corrosion-resistant epoxy coating.
-
Non-hydraulic electric operation: Self-contained 12-volt actuators eliminate hydraulic oil and do not require components inside the boat.
-
One-touch LED control: Provides convenient helm control for leveling and trim tab positioning.
-
Quiet, accurate performance: Actuators are designed for quiet operation, precise positioning, and up to 1,000 pounds of push force.
-
Durable hinge design: The polypropylene hinge was tested through more than 300,000 cycles to a 90-degree bend without failure.
Product Details:
- Brand: Lectrotab
- Part number: XKASL12X12A
- Trim tab size: 12 x 12 inches
- Recommended boat length: 18 to 32 feet
- Trim tab material: Marine-grade 6005-T5 aluminum alloy
- Actuator voltage: 12 volts DC
- Actuator stroke length: 2.25 inches
- Actuator cable length: 23 feet
- Rocker switch operating voltage: 12 or 24 volts
- Kit includes: One one-touch control, two aluminum alloy tabs, two actuators with 23-foot cables, and instruction manual
- Sold as a kit
Choose the Lectrotab XKA Aluminum Alloy Trim Tab Kit for a practical, self-contained electric trim solution with one-touch control and corrosion-resistant construction.
Return Notice: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Owner’s Manual: View the instruction manual
