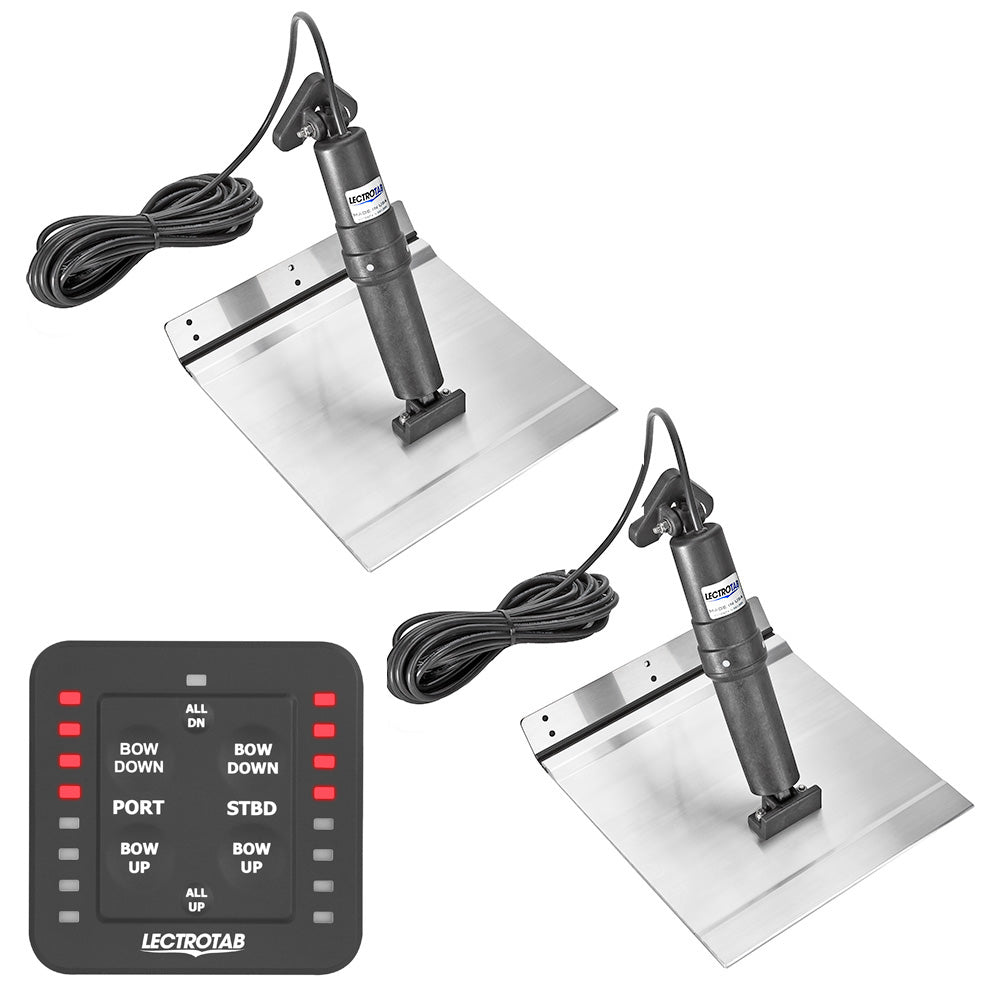

XKA Aluminum Alloy Trim Tab Kit with One-Touch Control - 9 x 12
The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.
Features:
- All Tabs sealed with a corrosive resistant epoxy coating
- Equivalent strength to 10 gauge stainless steel
- "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Trim Tab Size (L x W) - 9" x 12" (23 x 30 cm)
- Boat Length - 16' to 25' (5 to 7.5 M)
- Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
- Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
- Rocker Switch Operating Voltage - 12 or 24 V
In the Box:
- One (1) One-Touch Control
- Two (2) Aluminum Alloy tabs
- Two (2) actuators w/23' (7 M) cables
- Instruction Manual
*Sold as a Kit
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Lectrotab XKA Aluminum Alloy Trim Tab Kit with One-Touch Control is designed for aluminum-hulled boats and provides an economical trim tab solution for a wide range of vessels. The kit includes two aluminum alloy trim tabs, two electric actuators, and a one-touch leveling LED control for convenient adjustment at the helm. With a non-hydraulic, self-contained design, it delivers quiet operation and straightforward installation without requiring components inside the boat.
Each trim tab is fabricated from marine-grade 6005-T5 aluminum alloy and sealed with a corrosion-resistant epoxy coating. The tabs use a strong polypropylene “no-break” hinge tested over 300,000 cycles through a 90-degree bend without failure. The actuator housing features a non-metallic external structure designed to resist corrosion and deterioration from sunlight or underwater exposure. Unlike hydraulic trim tabs, this electric system contains no oil that can leak, while the internal brake system helps prevent unwanted tab movement when underway or backing down.
The precision-engineered actuators are fully load tested to push up to 1,000 pounds of force and include internal pressure equalization. The upper ram seal location is positioned to help protect it from damage caused by a fouled ram or barnacle growth. A 23-foot actuator cable provides installation flexibility, and the one-touch leveling LED control places trim tab adjustment at your fingertips. This kit is intended for boats from 16 to 25 feet in length and operates with a 12-volt actuator system.
Key Features:
-
Aluminum Alloy Construction: Marine-grade 6005-T5 aluminum alloy trim tabs are sealed with a corrosion-resistant epoxy coating.
-
Electric Non-Hydraulic Design: Self-contained actuators provide quiet operation without hydraulic oil or components installed inside the boat.
-
One-Touch LED Control: Provides convenient trim tab leveling control from the helm.
-
Durable Polypropylene Hinge: “No-break” hinge tested over 300,000 cycles through a 90-degree bend without failure.
-
High-Force Actuators: Actuators are fully load tested to push up to 1,000 pounds of force.
-
Corrosion-Resistant Actuator Housing: Non-metallic external construction is designed not to corrode or deteriorate in sunlight or underwater.
Product Details:
-
Brand: Lectrotab
-
Part Number: XKASL9X12A
-
Kit Contents: One one-touch control, two aluminum alloy trim tabs, two actuators with 23-foot cables, and instruction manual
-
Trim Tab Size: 9 x 12 inches
-
Recommended Boat Length: 16 to 25 feet
-
Trim Tab Material: Marine-grade 6005-T5 aluminum alloy
-
Actuator Voltage: 12 volts DC
-
Actuator Stroke: 2.25 inches
-
Control Operating Voltage: 12 or 24 volts
-
Sold As: Kit
Choose the Lectrotab XKA Aluminum Alloy Trim Tab Kit for dependable electric trim tab control and a complete installation package tailored to aluminum-hulled boats and vessels from 16 to 25 feet.
|
| Truck Freight: No |
| Oversized: No |
| Owners Manual Url: https://productimageserver.com/literature/ownersManual/96305OM.pdf |
