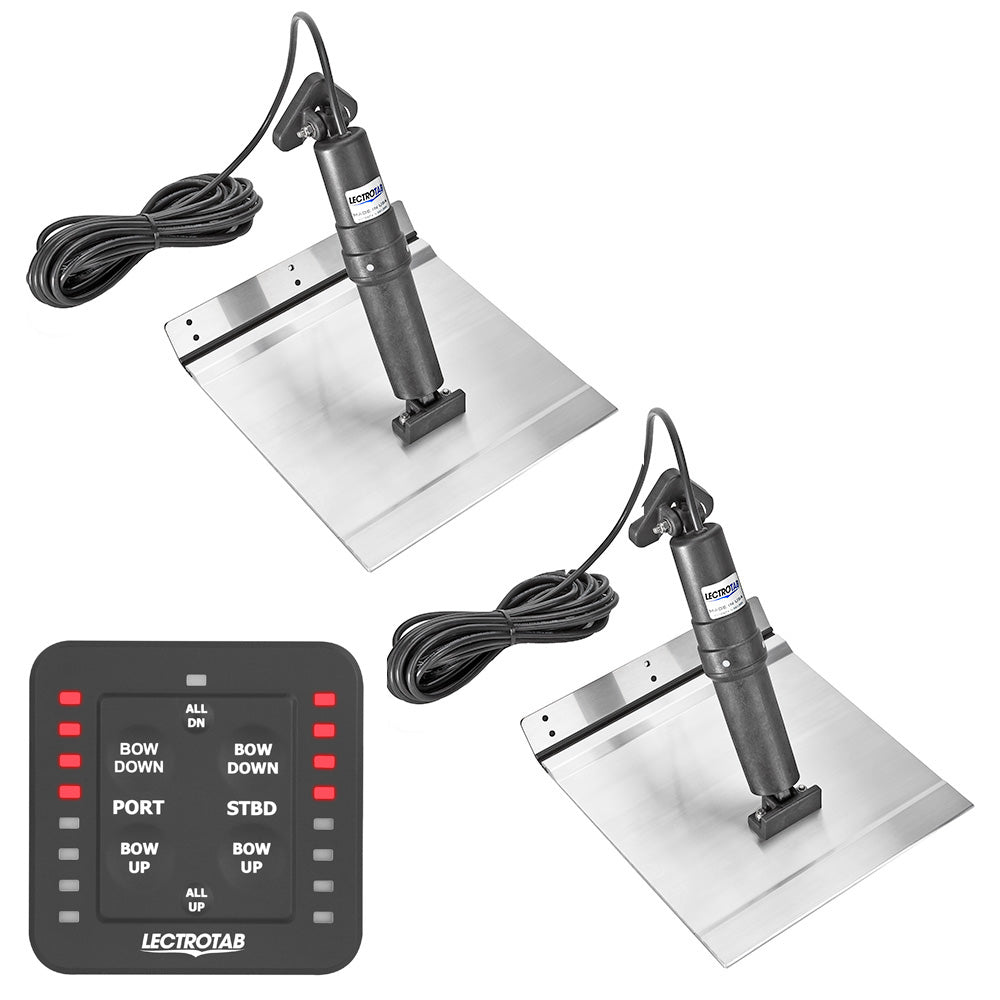

XKA Aluminum Alloy Trim Tab Kit with One-Touch Control - 12 x 24
The Lectrotab Aluminum Alloy trim tabs are uniquely designed to meet the needs of Aluminum hulled boats and are an economical option for all boats. All Aluminum Alloy tabs are fabricated with an extremely strong "no-break" polypropylene hinge. All Aluminum tabs are sealed with a corrosion resistant epoxy coating.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.
Features:
- All Tabs sealed with a corrosive resistant epoxy coating
- Equivalent strength to 10 gauge stainless steel
- "No Break" polypropylene hinge tested over 300,000 cycles to a 90 bend without failure
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Trim Tab Size (L x W) - 12" x 24" (30 x 61 cm)
- Boat Length - 28' to 48' (8.5 to 14.5 M)
- Trim Tab Material - Marine grade 6005-T5 Aluminum Alloy
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
- Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
- Rocker Switch Operating Voltage - 12 or 24 V
In the Box:
- One (1) One-Touch Control
- Two (2) Aluminum Alloy tabs
- Two (2) actuators w/23' (7 M) cables
- Instruction Manual
*Sold as a Kit
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Lectrotab XKA Aluminum Alloy Trim Tab Kit with One-Touch Control is designed for aluminum-hulled boats and provides an economical trim tab solution for a wide range of vessels. This complete kit combines marine-grade aluminum alloy trim tabs, precision-engineered electric actuators, and a one-touch leveling LED control for convenient tab adjustment at the helm.
The trim tabs are fabricated from marine-grade 6005-T5 aluminum alloy and sealed with a corrosion-resistant epoxy coating. A strong polypropylene hinge is designed for repeated operation, while the non-metallic actuator housing resists corrosion and deterioration from sunlight or underwater exposure. The self-contained, non-hydraulic actuator design requires no components to be installed inside the boat and eliminates hydraulic oil leaks.
Built for quiet operation and accurate tab positioning, each actuator is load tested to provide up to 1,000 pounds of force. The internal brake system helps prevent unwanted tab movement while underway or backing down, and the internal pressure equalization system supports reliable actuator operation. The one-touch control places trim tab leveling at your fingertips for straightforward operation on compatible 12- or 24-volt systems.
The Lectrotab XKASL12X24A kit is intended for boats from 28 to 48 feet long and includes two aluminum alloy trim tabs, two actuators with 23-foot cables, one one-touch control, and an instruction manual. This product is sold as a kit. Please contact the manufacturer directly with any issues or concerns, as it may not be returned to the original point of purchase.
Key Features
-
Marine-grade aluminum alloy tabs: Made from 6005-T5 aluminum alloy and sealed with a corrosion-resistant epoxy coating for use on aluminum-hulled boats and other vessels.
-
Non-hydraulic electric operation: Self-contained actuators provide quiet operation without hydraulic oil or components inside the boat.
-
Durable polypropylene hinge: The no-break hinge is tested over 300,000 cycles to a 90-degree bend without failure.
-
High-force actuators: Fully load tested to push up to 1,000 pounds of force for accurate trim tab positioning.
-
One-touch LED control: Provides convenient control of trim tab leveling from the helm.
-
Corrosion-resistant actuator design: Non-metallic external construction cannot corrode and is designed to resist deterioration from sunlight and underwater exposure.
Product Details
-
Brand: Lectrotab
-
Part number: XKASL12X24A
-
Trim tab size: 12 x 24 inches
-
Recommended boat length: 28 to 48 feet
-
Trim tab material: Marine-grade 6005-T5 aluminum alloy
-
Actuator voltage: 12 V DC
-
Actuator stroke: 2.25 inches
-
Actuator cable length: 23 feet
-
Rocker switch operating voltage: 12 or 24 V
-
Kit includes: One one-touch control, two aluminum alloy tabs, two actuators with 23-foot cables, and instruction manual
-
Manual: Download the instruction manual
-
Return information: Contact the manufacturer directly with any issues or concerns; this product may not be returned to the original point of purchase.
Choose the Lectrotab XKA Aluminum Alloy Trim Tab Kit for a complete, self-contained electric trim tab system with convenient one-touch control and durable aluminum construction.
