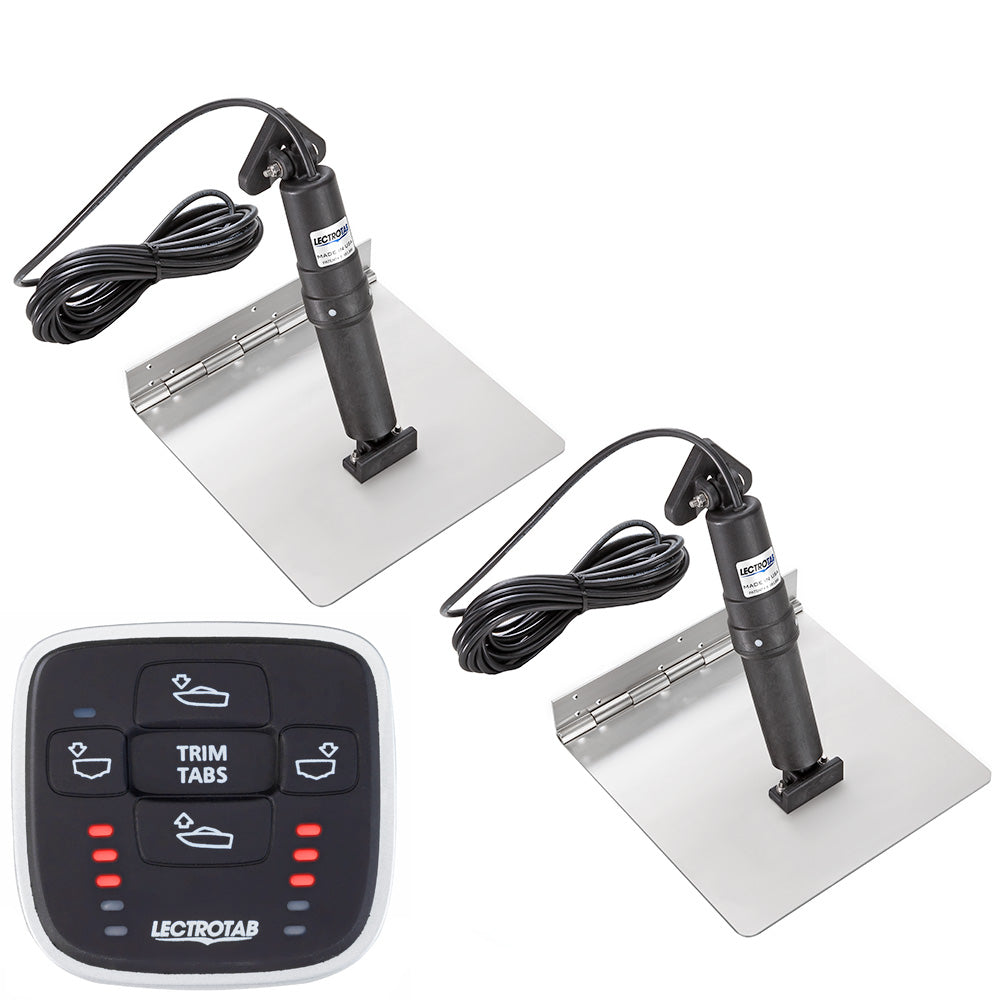

XKA Stainless Steel Trim Tab Kit with MLC-1 Control - 9 x 9
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
The Lectrotab MLC-1 is a microprocessor based trim tab control that can move both tabs simultaneously at the touch of a single button. It includes LED tab position indicators which will automatically dim in darkness and brighten in sunlight.
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Trim Tab Size (L x W) - 9" x 9" (23 x 23 cm)
- Boat Length - 14' to 19' (4 to 6 M)
- Trim Tab Material - 12 gauge, 304 Stainless Steel
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Control Dimensions (W x H) - 3.15" x 3.07" (80 x 77 mm)
- Control Mounting Hole Cutout - 2" (50 mm)
- Control Operating Voltage - 12 or 24 V
In the Box:
- One (1) Manual Leveling Control
- Two (2) Stainless Steel tabs
- Two (2) actuators w/23' (7 M) cables
- Instruction Manual
*Sold as a Kit
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Lectrotab XKA Stainless Steel Trim Tab Kit with MLC-1 Control is a complete electric trim tab system for boat owners seeking precise, quiet, and reliable vessel leveling. Designed for boats from 14 to 19 feet, this kit combines two stainless steel trim tabs, two self-contained actuators, and a microprocessor-based MLC-1 control for convenient operation without hydraulic fluid or components installed inside the boat.
The 304 stainless steel trim tabs feature a continuous rolled and pinned hinge that provides added strength while eliminating the need for welded construction. Precision-engineered actuators deliver accurate tab positioning and are fully load tested to push 1,000 pounds of force. Their non-metallic, permanently sealed housings resist corrosion and deterioration from sun or underwater exposure, while the internal brake system helps prevent unwanted tab movement while underway or backing down. The actuator design also includes internal pressure equalization and an upper ram seal location intended to help protect the seal from damage caused by fouled rams or barnacle growth.
The Lectrotab MLC-1 control allows both trim tabs to move simultaneously with the touch of a single button. Integrated LED tab-position indicators automatically dim in darkness and brighten in sunlight, helping provide clear status visibility in changing conditions. With 23-foot actuator cables and a self-contained installation design, the system is suited for boat leveling and trim adjustment applications where quiet electric operation and straightforward installation are preferred.
Key Features:
-
Stainless Steel Construction: Two 304 stainless steel trim tabs use a continuous rolled and pinned hinge for strength without welding.
-
Electric Actuation: Quiet, non-hydraulic operation eliminates the need for hydraulic oil or onboard hydraulic components.
-
High Load Capacity: Actuators are fully load tested to push 1,000 pounds of force.
-
MLC-1 Microprocessor Control: Moves both tabs simultaneously and provides automatic LED brightness adjustment.
-
Corrosion-Resistant Design: Non-metallic external actuator structures resist corrosion and deterioration in sun or underwater environments.
Product Details:
-
Brand: Lectrotab
-
Part Number: XKASML9X9
-
Trim Tab Size: 9 x 9 inches
-
Recommended Boat Length: 14 to 19 feet
-
Trim Tab Material: 12-gauge 304 stainless steel
-
Actuator Voltage: 12 VDC
-
Actuator Stroke: 2.25 inches
-
Actuator Cable Length: 23 feet
-
Control Operating Voltage: 12 or 24 V
-
Included: One MLC-1 manual leveling control, two stainless steel tabs, two actuators with 23-foot cables, and instruction manual
Choose the Lectrotab XKA trim tab kit for dependable electric trim adjustment and integrated control in a complete marine leveling system.
