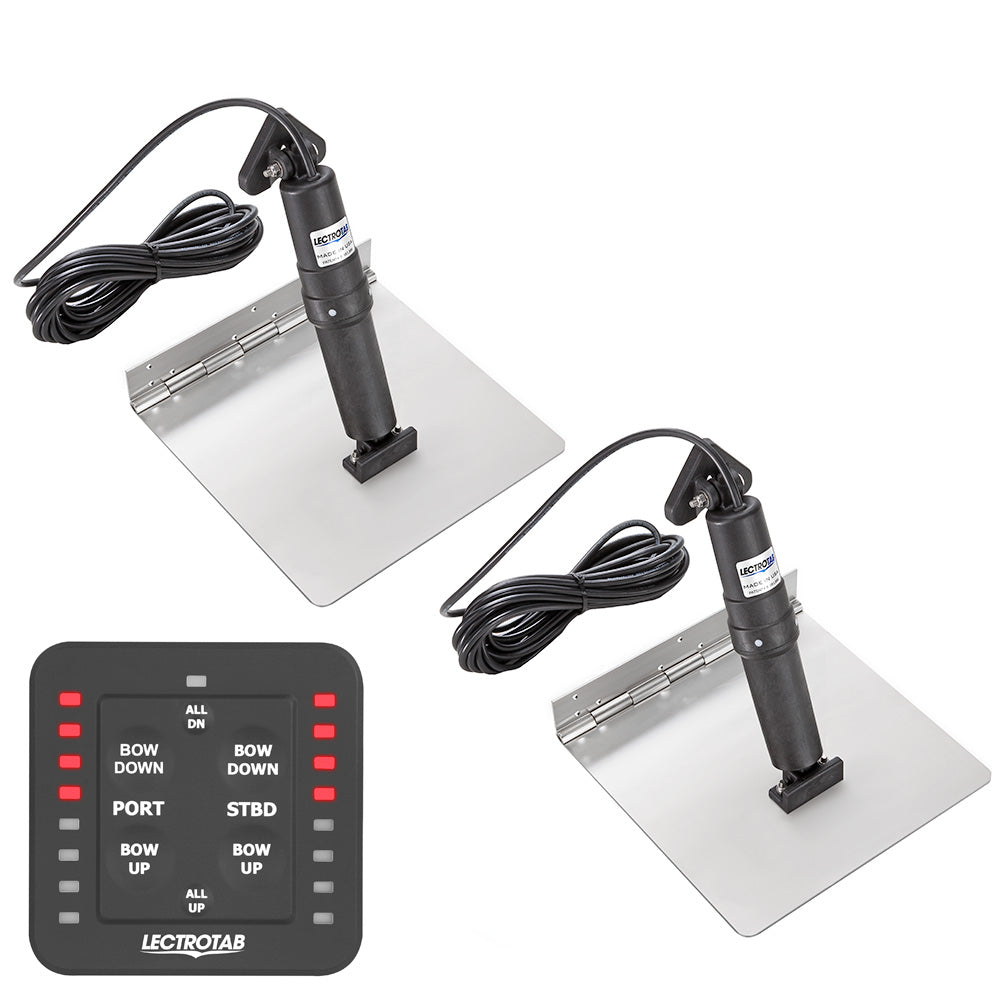

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 12 x 12
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
Lectrotab's one-touch leveling LED control buts the complete control of your trim tabs at your fingertips.
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm)
- Boat Length - 18' to 32' (5.5 to 9.5 M)
- Trim Tab Material - 12 gauge, 304 Stainless Steel
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
- Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
- Rocker Switch Operating Voltage - 12 or 24 V
In the Box:
- One (1) One-Touch Control
- Two (2) Stainless Steel tabs
- Two (2) actuators w/23' (7 M) cables
- Instruction Manual
*Sold as a Kit
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Lectrotab XKA Stainless Steel Trim Tab Kit with One-Touch Control is a complete, non-hydraulic trim tab system for boats from 18 to 32 feet. Designed for dependable trim adjustment, this kit combines durable 304 stainless steel tabs, precision-engineered actuators, and one-touch LED control to help boaters manage tab positioning from the helm.
The 12-gauge stainless steel tabs use a continuous rolled and pinned hinge that adds strength while eliminating the need for welded construction. Each actuator is fully load tested to push 1,000 pounds of force and provides quiet operation with accurate tab positioning. The self-contained actuator design requires no components inside the boat, while the permanently sealed, non-metallic housing resists corrosion and deterioration from sun or underwater exposure.
Unlike hydraulic trim tab systems, the Lectrotab XKA uses electric actuators and does not require hydraulic oil. An internal pressure equalization system supports actuator operation, while the internal brake system helps prevent unwanted tab movement when the boat is underway or backing down. The one-touch leveling LED control puts trim adjustment at the operator’s fingertips for convenient control.
This kit includes two stainless steel trim tabs, two actuators with 23-foot cables, one one-touch control, and an instruction manual. The actuator assembly incorporates a transom mounting bracket and is intended for 12-volt actuator operation. Review the included manual before installation to confirm mounting and wiring requirements for your boat.
Key Features:
-
304 stainless steel tabs: 12-gauge construction provides a durable trim tab surface for marine use.
-
Continuous rolled and pinned hinge: Adds strength and eliminates the need for welding.
-
Electric actuator system: Provides quiet, non-hydraulic operation without hydraulic oil.
-
Self-contained actuators: Sealed, non-metallic housings require no components to be installed inside the boat.
-
Internal brake and pressure equalization systems: Support stable tab positioning and actuator operation.
-
One-touch LED control: Provides convenient helm control for leveling and trim adjustment.
Product Details:
-
Brand: Lectrotab
-
Part Number: XKASL12X12
-
Trim tab size: 12 inches by 12 inches
-
Recommended boat length: 18 to 32 feet
-
Trim tab material: 12-gauge 304 stainless steel
-
Actuator voltage: 12 volts DC
-
Actuator stroke length: 2.25 inches
-
Actuator cable length: 23 feet
-
Rocker switch operating voltage: 12 or 24 volts
-
Included: One one-touch control, two stainless steel tabs, two actuators with 23-foot cables, and instruction manual
-
Manual: View the owner’s manual
Sold as a kit. This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Choose the Lectrotab XKA trim tab kit for a complete electric trim control solution built around durable stainless steel components and convenient one-touch operation.
