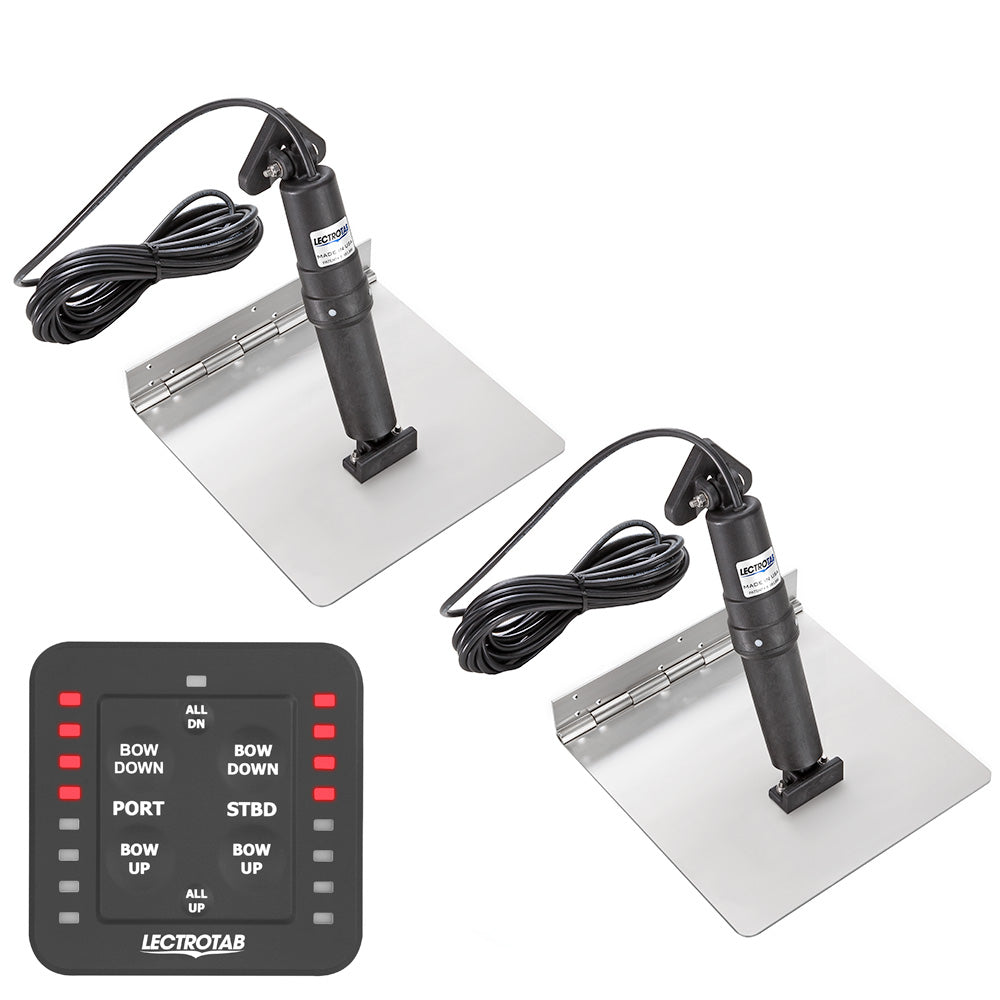

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 12 x 18
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
Lectrotab's one-touch leveling LED control buts the complete control of your trim tabs at your fingertips.
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm)
- Boat Length - 20' to 40' (6 to 12 M)
- Trim Tab Material - 12 gauge, 304 Stainless Steel
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
- Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
- Rocker Switch Operating Voltage - 12 or 24 V
In the Box:
- One (1) One-Touch Control
- Two (2) Stainless Steel tabs
- Two (2) actuators w/23' (7 M) cables
- Instruction Manual
*Sold as a Kit
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Lectrotab XKA Stainless Steel Trim Tab Kit with One-Touch Control is a non-hydraulic boat trim tab system designed for boats from 20 to 40 feet. Combining durable 304 stainless steel trim tabs, precision-engineered electric actuators, and one-touch LED control, this kit provides convenient trim adjustment, quiet operation, and easy installation without components mounted inside the boat.
Each 12 x 18-inch trim tab is fabricated with a continuous rolled and pinned hinge for added strength without welding. The sealed actuator assemblies are housed in non-metallic structures that resist corrosion and deterioration from sunlight or underwater exposure. Because the system is electric rather than hydraulic, it operates without oil that can leak, while the internal pressure equalization and braking systems support reliable tab positioning during operation and while backing down.
The Lectrotab one-touch leveling LED control puts trim tab adjustment at the operator’s fingertips. Two 12-volt actuators, each with a 23-foot cable, are included for flexible installation. Actuators are fully load tested to push 1,000 pounds of force, and the standard or low-profile transom mounting bracket design helps accommodate the installation requirements of the boat. The kit is sold as a complete package with two stainless steel tabs, two actuators, one control, and an instruction manual.
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Non-hydraulic electric operation eliminates the need for hydraulic oil
- Sealed, non-metallic actuator housing resists corrosion and sun or underwater deterioration
- Internal brake system helps prevent unwanted tab movement when underway or backing down
- Quiet operation with accurate tab positioning
- Actuators are fully load tested to push 1,000 pounds of force
Technical Specifications:
- Trim tab size: 12 x 18 inches
- Recommended boat length: 20 to 40 feet
- Trim tab material: 12-gauge 304 stainless steel
- Actuator voltage: 12 volts DC
- Actuator stroke length: 2.25 inches
- Actuator cable length: 23 feet
- Rocker switch operating voltage: 12 or 24 volts
- Rocker switch mounting cutout: 2.25 x 2.5 inches
- Part number: XKASL12X18
- In the box: One one-touch control, two stainless steel tabs, two actuators with 23-foot cables, and instruction manual
Choose the Lectrotab XKA trim tab kit for a durable, self-contained electric trim control system built for straightforward marine installation and dependable operation.
Important: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Owner’s Manual: View the manual
