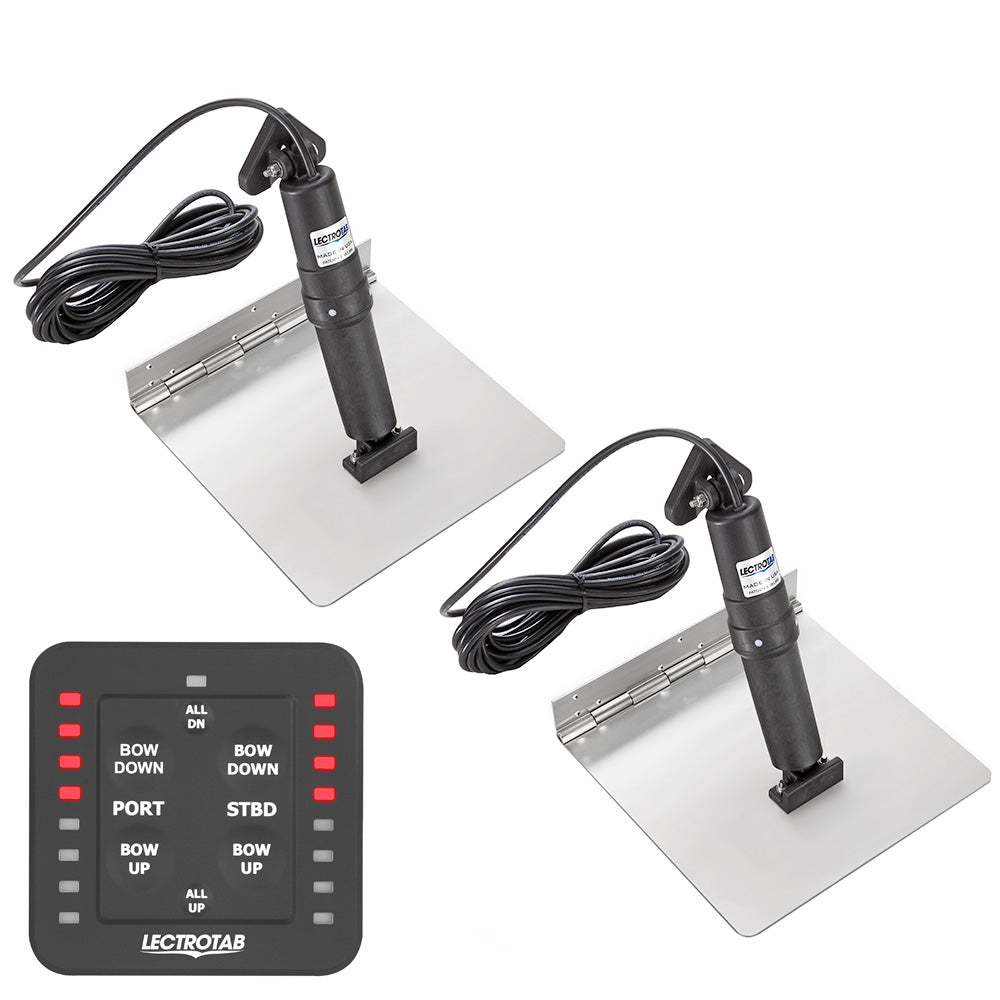

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 12 x 24
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
Lectrotab's one-touch leveling LED control buts the complete control of your trim tabs at your fingertips.
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Trim Tab Size (L x W) - 12" x 24" (30 x 61 cm)
- Boat Length - 28' to 48' (8.5 to 14.5 M)
- Trim Tab Material - 12 gauge, 304 Stainless Steel
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
- Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
- Rocker Switch Operating Voltage - 12 or 24 V
In the Box:
- One (1) One-Touch Control
- Two (2) Stainless Steel tabs
- Two (2) actuators w/23' (7 M) cables
- Instruction Manual
*Sold as a Kit
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Lectrotab XKA Stainless Steel Trim Tab Kit with One-Touch Control is a complete, non-hydraulic trim tab system for boats from 28 to 48 feet. Designed for reliable, precise trim adjustment, this kit combines two stainless steel tabs, two sealed electric actuators, and a one-touch leveling LED control for convenient operation at the helm.
Each trim tab is fabricated from 12-gauge 304 stainless steel and uses a continuous rolled and pinned hinge for added strength without welding. The precision-engineered actuators provide quiet operation, accurate tab positioning, and up to 1,000 pounds of pushing force. Their sealed, non-metallic housings resist corrosion and eliminate the need for components inside the boat. Unlike hydraulic systems, the Lectrotab XKA design does not use oil, helping simplify installation and maintenance.
The integrated actuator design includes an internal pressure equalization system and an internal brake system to help prevent unwanted tab movement while underway or backing down. The upper ram seal is positioned to help protect it from damage caused by a fouled ram or barnacle growth. The included one-touch control puts trim adjustment at your fingertips, making it easier to level the boat and manage running attitude during operation.
Key Features
-
Stainless Steel Trim Tabs: Two 12 x 24-inch tabs made from durable 12-gauge 304 stainless steel.
-
One-Touch LED Control: Provides convenient fingertip control for leveling and trim adjustment.
-
Sealed Electric Actuators: Non-hydraulic, permanently sealed actuators deliver quiet operation without oil or onboard components.
-
High Load Capacity: Actuators are fully load tested to push up to 1,000 pounds of force.
-
Corrosion-Resistant Construction: Non-metallic external actuator housings will not corrode and are designed to resist deterioration from sun or water exposure.
-
Installation Protection: Internal pressure equalization and braking systems support consistent operation and help prevent unwanted tab movement.
Product Details
-
Brand: Lectrotab
-
Part Number: XKASL12X24
-
Trim Tab Size: 12 x 24 inches
-
Recommended Boat Length: 28 to 48 feet
-
Trim Tab Material: 12-gauge 304 stainless steel
-
Actuator Voltage: 12 volts DC
-
Actuator Stroke: 2.25 inches
-
Actuator Cable Length: 23 feet
-
Rocker Switch Operating Voltage: 12 or 24 volts
-
Included: One one-touch control, two stainless steel tabs, two actuators with 23-foot cables, and instruction manual
-
Purchase Note: Sold as a kit. This product may not be returned to the original point of purchase; contact the manufacturer directly with questions or concerns.
Choose the Lectrotab XKA Stainless Steel Trim Tab Kit for dependable electric trim control, streamlined installation, and durable marine performance.
