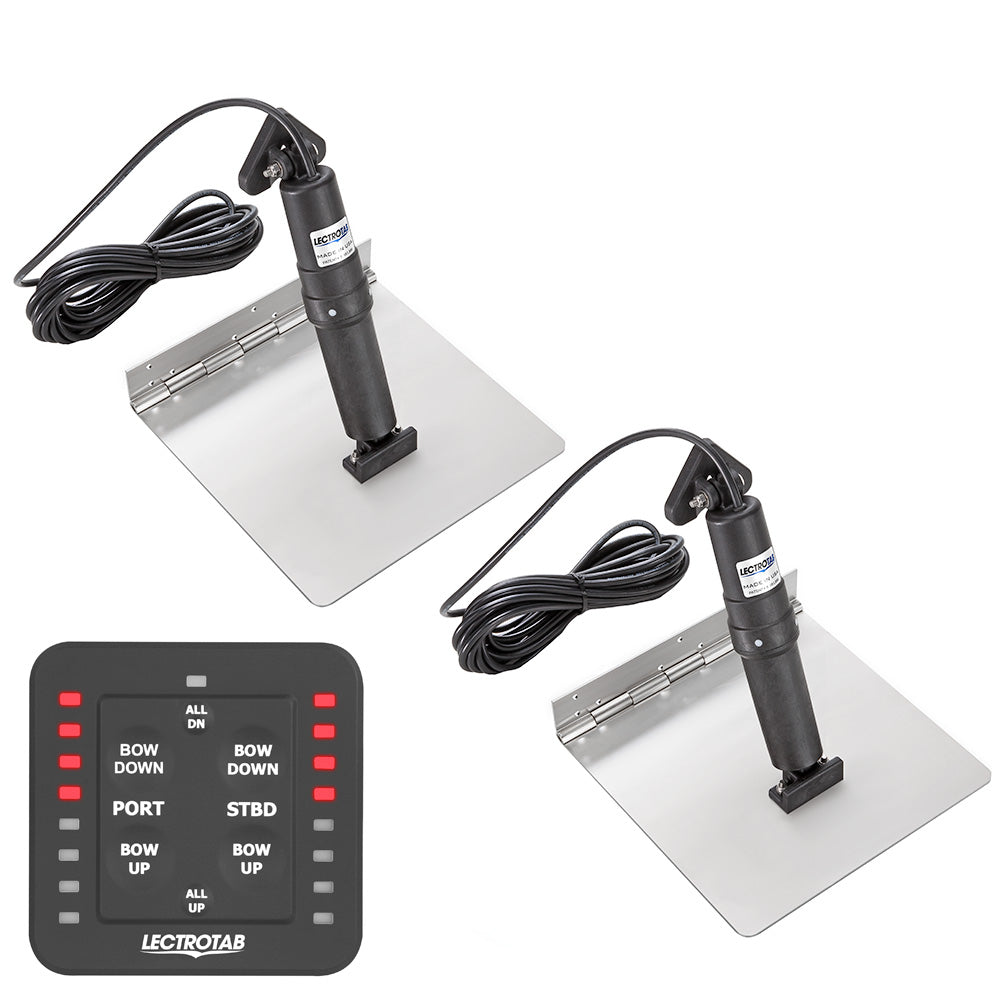

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 12 x 9
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Trim Tab Size (L x W) - 12" x 9" (30 x 23 cm)
- Boat Length - 18' to 29' (5.5 to 8.5 M)
- Trim Tab Material - 12 gauge, 304 Stainless Steel
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
- Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
- Rocker Switch Operating Voltage - 12 or 24 V
In the Box:
- One (1) One-Touch Control
- Two (2) Stainless Steel tabs
- Two (2) actuators w/23' (7 M) cables
- Instruction Manual
*Sold as a Kit
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Lectrotab XKA Stainless Steel Trim Tab Kit with One-Touch Control delivers precise, reliable boat leveling for vessels from 18 to 29 feet. Designed with durable 304 stainless steel trim tabs, quiet non-hydraulic actuators, and a one-touch LED rocker control, this complete kit helps boat owners adjust trim tab positioning from the helm with convenient fingertip control.
The stainless steel tabs feature a continuous rolled and pinned hinge for added strength without welded joints. Each precision-engineered actuator is fully load tested to push 1,000 pounds of force and uses a permanently sealed, non-metallic housing that resists corrosion and deterioration from sun or water exposure. Because the system is non-hydraulic, it operates without oil that can leak, while the self-contained actuator design keeps installation components outside the boat.
Built for dependable marine use, the Lectrotab XKA system includes internal pressure equalization and an internal brake system to help prevent unwanted tab movement while underway or backing down. The upper ram seal is positioned to help protect it from damage caused by a fouled ram or barnacle growth. With two 12- by 9-inch trim tabs, two actuators with 23-foot cables, and a one-touch control, this kit provides the core components needed for a complete trim tab installation. This product is sold as a kit and may not be returned to the original point of purchase; contact the manufacturer directly with any issues or concerns.
Key Features:
-
304 Stainless Steel Trim Tabs: Durable 12-gauge stainless steel construction with a continuous rolled and pinned hinge for added strength.
-
Non-Hydraulic Actuators: Quiet, self-contained operation without hydraulic oil that can leak.
-
1,000-Pound Load Testing: Actuators are fully load tested to push 1,000 pounds of force.
-
Corrosion-Resistant Housing: Non-metallic external actuator structure will not corrode or deteriorate in sun or underwater conditions.
-
One-Touch LED Control: Provides fingertip control of trim tab positioning from the helm.
-
Internal Brake System: Helps prevent unwanted tab movement while underway or backing down.
Product Details:
-
Brand: Lectrotab
-
Part Number: XKASL12X9
-
Trim Tab Size: 12 x 9 inches
-
Recommended Boat Length: 18 to 29 feet
-
Trim Tab Material: 12-gauge 304 stainless steel
-
Actuator Voltage: 12 volts DC
-
Actuator Stroke Length: 2.25 inches
-
Actuator Cable Length: 23 feet
-
Rocker Switch Operating Voltage: 12 or 24 volts
-
Package Contents: One one-touch control, two stainless steel tabs, two actuators with 23-foot cables, and instruction manual
Choose the Lectrotab XKA Stainless Steel Trim Tab Kit for a dependable, self-contained marine trim control solution with convenient one-touch operation.
Manufacturer Notice: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
SEO Meta Description: Lectrotab XKA stainless steel trim tab kit with one-touch LED control, quiet actuators, and 12 x 9-inch tabs for boats 18 to 29 feet.
|
| Truck Freight: No |
| Oversized: No |
| Owners Manual Url: https://productimageserver.com/literature/ownersManual/96274OM.pdf |
