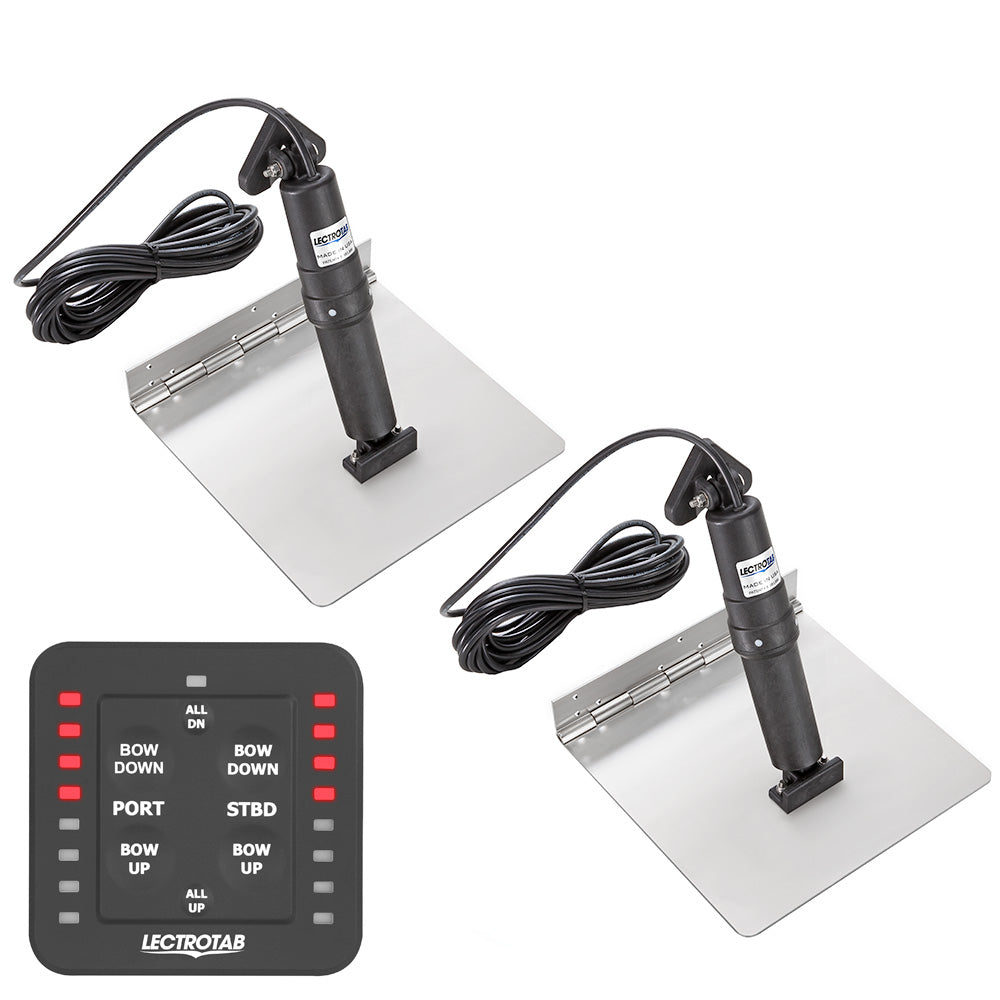

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 9 x 12
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Trim Tab Size (L x W) - 9" x 12" (23 x 30 cm)
- Boat Length - 16' to 25' (5 to 7.5 M)
- Trim Tab Material - 12 gauge, 304 Stainless Steel
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
- Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
- Rocker Switch Operating Voltage - 12 or 24 V
In the Box:
- One (1) One-Touch Control
- Two (2) Stainless Steel tabs
- Two (2) actuators w/23' (7 M) cables
- Instruction Manual
*Sold as a Kit
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Lectrotab XKA Stainless Steel Trim Tab Kit with One-Touch Control is designed for boat owners seeking reliable, precise trim adjustment without the maintenance associated with hydraulic systems. This complete electric trim tab kit includes two stainless steel tabs, two actuators, and a one-touch leveling LED control for convenient operation from the helm. It is intended for boats from 16 to 25 feet and provides a self-contained installation solution with no components required inside the boat.
The 12-gauge, 304 stainless steel trim tabs use a continuous rolled and pinned hinge for added strength while eliminating the need for welded construction. Precision-engineered 12-volt actuators deliver quiet operation, accurate tab positioning, and up to 1,000 pounds of tested pushing force. The non-metallic actuator housing is permanently sealed and designed to resist corrosion and deterioration from sun or underwater exposure. Because the system is non-hydraulic, there is no oil to leak, while the internal brake system helps prevent unwanted tab movement when underway or backing down.
The Lectrotab one-touch leveling LED control places trim tab adjustment at your fingertips. The actuator assembly includes a standard or low-profile transom mounting bracket, internal pressure equalization, and an upper ram seal location that helps protect the seal from damage caused by fouled rams or barnacle growth. With 23-foot actuator cables and included installation components, the Lectrotab XKA kit is suited for new installations or replacement of compatible electric trim tab systems.
Key Features:
-
Stainless Steel Trim Tabs: Two 12-gauge, 304 stainless steel tabs feature a continuous rolled and pinned hinge for strength without welded construction.
-
Electric Actuation: Non-hydraulic 12-volt actuators provide quiet operation, accurate positioning, and tested pushing force up to 1,000 pounds.
-
One-Touch LED Control: Helm-mounted control provides convenient trim tab leveling and adjustment.
-
Corrosion-Resistant Housing: Permanently sealed, non-metallic actuator housing is designed not to corrode or deteriorate in sunlight or underwater conditions.
-
Internal Brake System: Helps prevent unwanted tab movement while the boat is underway or backing down.
-
Complete Kit: Includes two tabs, two actuators with cables, one one-touch control, and an instruction manual.
Product Details:
-
Brand: Lectrotab
-
Part Number: XKASL9X12
-
Trim Tab Size: 9 x 12 inches
-
Recommended Boat Length: 16 to 25 feet
-
Trim Tab Material: 12-gauge, 304 stainless steel
-
Actuator Voltage: 12 volts DC
-
Actuator Stroke: 2.25 inches
-
Actuator Cable Length: 23 feet
-
Control Operating Voltage: 12 or 24 volts
-
Included: One one-touch control, two stainless steel tabs, two actuators with 23-foot cables, and instruction manual
-
Product Type: Electric stainless steel trim tab kit
Choose the Lectrotab XKA Stainless Steel Trim Tab Kit for dependable electric trim control, durable stainless steel construction, and a complete installation package for compatible boats.
Important: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
|
| Truck Freight: No |
| Oversized: No |
| Owners Manual Url: https://productimageserver.com/literature/ownersManual/96271OM.pdf |
