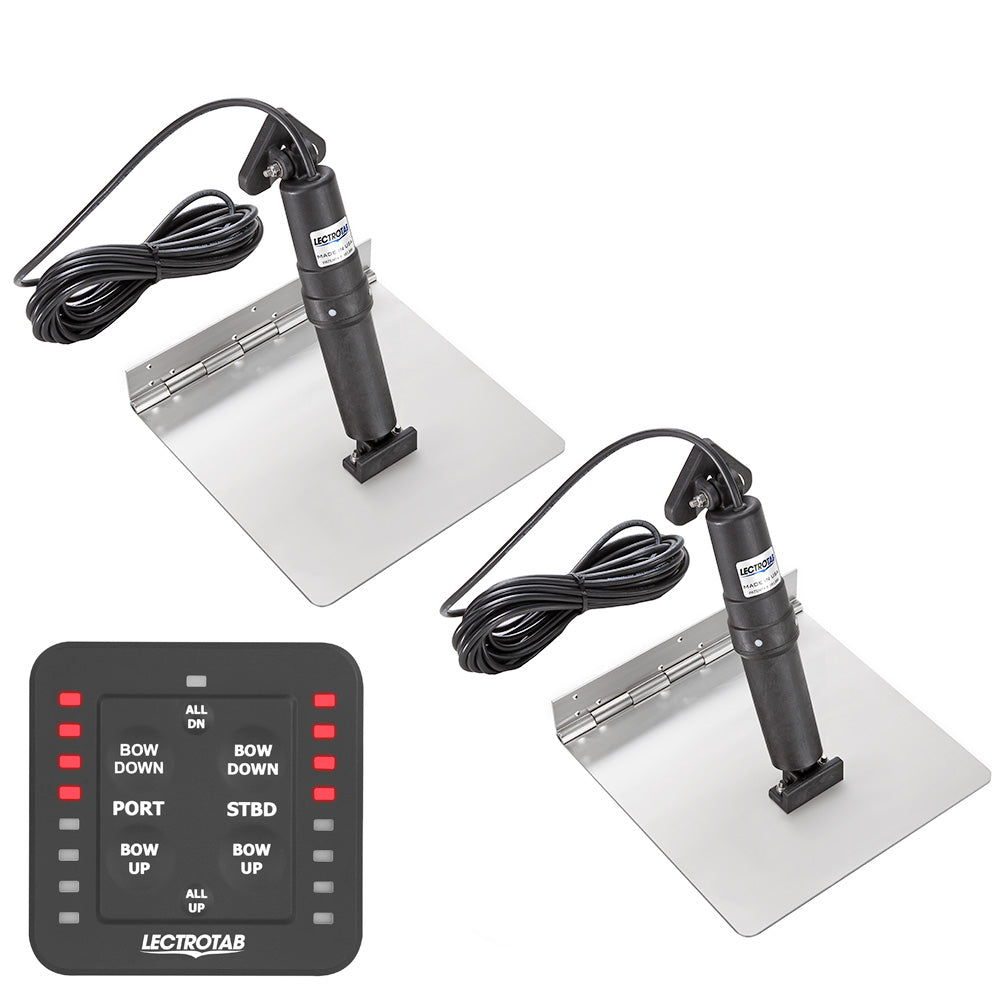

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 9 x 18
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Trim Tab Size (L x W) - 9" x 18" (23 x 46 cm)
- Boat Length - 21' to 30' (6.5 to 9 M)
- Trim Tab Material - 12 gauge, 304 Stainless Steel
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
- Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
- Rocker Switch Operating Voltage - 12 or 24 V
In the Box:
- One (1) One-Touch Control
- Two (2) Stainless Steel tabs
- Two (2) actuators w/23' (7 M) cables
- Instruction Manual
*Sold as a Kit
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Improve boat handling and leveling control with the Lectrotab XKA Stainless Steel Trim Tab Kit with One-Touch Control. Designed for boats from 21 to 30 feet, this complete trim tab system combines durable 304 stainless steel tabs, precision-engineered electric actuators, and one-touch LED control for accurate tab positioning. Its non-hydraulic design provides quiet operation without hydraulic oil, while the self-contained actuator assembly simplifies installation because no components need to be installed inside the boat.
Each stainless steel trim tab uses a continuous rolled and pinned hinge for added strength without welding. The corrosion-resistant actuator assembly is housed in a sealed, non-metallic enclosure designed to resist deterioration in sunlight and underwater use. An internal pressure equalization system supports reliable operation, while the internal brake system helps prevent unwanted tab movement when the boat is underway or backing down. The upper ram seal location is positioned to help protect it from damage caused by fouled rams or barnacle growth.
The included Lectrotab one-touch leveling LED control puts trim tab adjustment at your fingertips. This kit includes two 9 x 18-inch stainless steel tabs, two 12-volt actuators with 23-foot cables, and the control switch required for the system. With actuators load tested to push 1,000 pounds of force and a maintenance-free, non-hydraulic design, the Lectrotab XKASL9X18 is suited for boat owners seeking dependable electric trim tab control and a streamlined installation.
Key Features:
-
One-Touch LED Control: Provides convenient fingertip control for leveling and trim tab adjustment.
-
304 Stainless Steel Tabs: Twelve-gauge stainless steel construction delivers a strong, durable trim tab surface.
-
Non-Hydraulic Operation: Electric actuators eliminate hydraulic oil from the system and support quiet operation.
-
Self-Contained Actuators: Sealed actuator housings require no components to be installed inside the boat.
-
Reliable Tab Positioning: Internal pressure equalization and braking systems support consistent operation and help limit unwanted movement.
Product Details:
- Brand: Lectrotab
- Part Number: XKASL9X18
- Trim tab size: 9 x 18 inches
- Recommended boat length: 21 to 30 feet
- Trim tab material: 12-gauge, 304 stainless steel
- Actuator voltage: 12 volts DC
- Actuator stroke: 2.25 inches
- Actuator cable length: 23 feet
- Rocker switch operating voltage: 12 or 24 volts
- Includes: One One-Touch control, two stainless steel tabs, two actuators with 23-foot cables, and instruction manual
- Sold as a kit
Important: This product may not be returned to the original point of purchase. Contact the manufacturer directly with any issues or concerns.
Choose the Lectrotab XKASL9X18 for integrated electric trim tab control, durable stainless steel construction, and convenient one-touch leveling for compatible boats.
