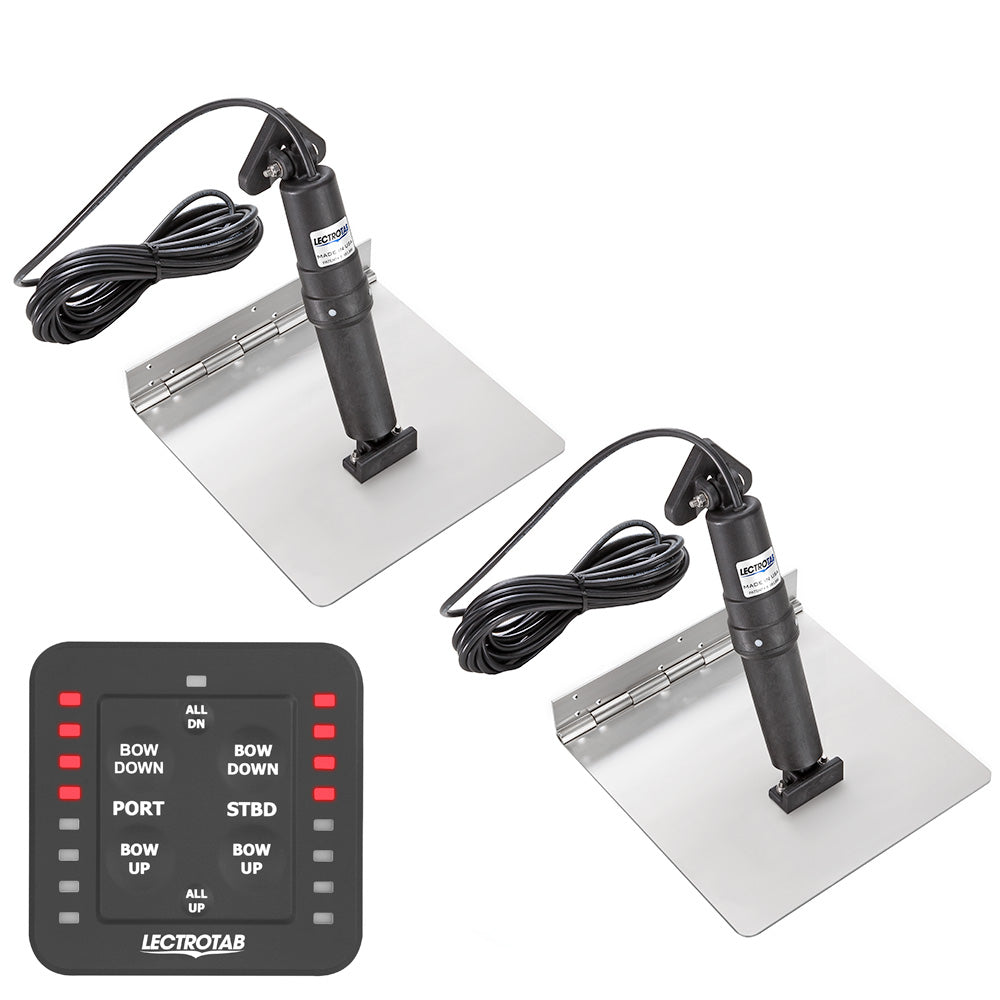

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 9 x 24
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Trim Tab Size (L x W) - 9" x 24" (23 x 61 cm)
- Boat Length - 24' to 37' (7 to 11 M)
- Trim Tab Material - 12 gauge, 304 Stainless Steel
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
- Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
- Rocker Switch Operating Voltage - 12 or 24 V
In the Box:
- One (1) One-Touch Control
- Two (2) Stainless Steel tabs
- Two (2) actuators w/23' (7 M) cables
- Instruction Manual
*Sold as a Kit
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Improve boat trim control with the Lectrotab XKA Stainless Steel Trim Tab Kit with One-Touch Control. Designed for boats from 24 to 37 feet, this complete non-hydraulic trim tab system combines durable 304 stainless steel tabs, precision-engineered electric actuators, and LED one-touch control for accurate tab positioning. Its self-contained design supports straightforward installation without requiring components inside the boat.
The stainless steel trim tabs feature a continuous rolled and pinned hinge that adds strength while eliminating the need for welding. Each actuator is packaged in a permanently sealed, non-metallic housing designed for corrosion resistance and quiet operation. The system uses an internal pressure equalization system and internal brake system to help maintain tab position while underway or backing down. Unlike hydraulic trim tabs, the electric actuators do not use oil, helping eliminate the possibility of hydraulic oil leaks.
The Lectrotab one-touch leveling LED control puts trim tab adjustment at the operator’s fingertips. The kit includes two stainless steel tabs, two 12-volt actuators with 23-foot cables, one one-touch control, and an instruction manual. Actuators are fully load tested to push 1,000 pounds of force, and the actuator assembly uses a standard or low-profile transom mounting bracket. This Lectrotab trim tab kit is intended for marine applications requiring dependable electric trim tab control and a complete installation package.
Key Features:
-
Feature: Continuous rolled and pinned hinge adds strength and eliminates the need for welding.
-
Feature: Non-hydraulic electric actuator system provides quiet operation without hydraulic oil.
-
Feature: Permanently sealed, non-metallic actuator housing resists corrosion and deterioration from sun or water exposure.
-
Feature: Internal brake system helps prevent unwanted tab movement while underway or backing down.
-
Feature: One-touch leveling LED control enables convenient trim tab adjustment.
-
Feature: Actuators are load tested to push 1,000 pounds of force.
Product Details:
-
Brand: Lectrotab
-
Part Number: XKASL9X24
-
Kit Type: Stainless steel electric trim tab kit with one-touch control
-
Trim Tab Size: 9 x 24 inches
-
Recommended Boat Length: 24 to 37 feet
-
Trim Tab Material: 12-gauge 304 stainless steel
-
Actuator Voltage: 12 volts DC
-
Actuator Stroke: 2.25 inches
-
Actuator Cable Length: 23 feet
-
Rocker Switch Operating Voltage: 12 or 24 volts
-
In the Box: One one-touch control, two stainless steel tabs, two actuators with 23-foot cables, and instruction manual
-
Return Information: This product may not be returned to the original point of purchase. Contact the manufacturer directly with issues or concerns.
Choose the Lectrotab XKA Trim Tab Kit for a complete, durable electric trim tab solution with convenient one-touch control.
