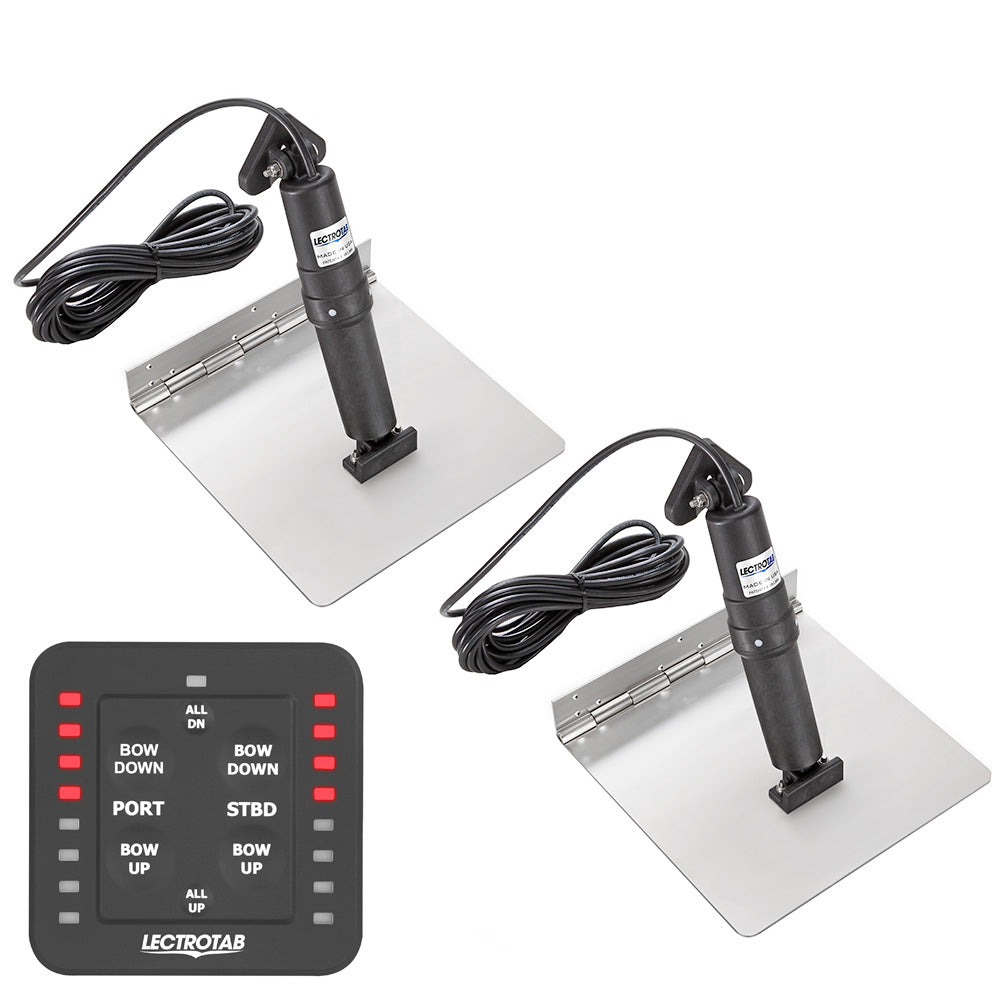

XKA Stainless Steel Trim Tab Kit with One-Touch Control - 9 x 9
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
Lectrotab's one-touch leveling LED control puts the complete control of your trim tabs at your fingertips.
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Trim Tab Size (L x W) - 9" x 9" (23 x 23 cm)
- Boat Length - 14' to 19' (4 to 6 M)
- Trim Tab Material - 12 gauge, 304 Stainless Steel
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Rocker Switch Dimensions (W x H) - 3" x 3" (77 x 77 mm)
- Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2.5" (57 to 64 mm)
- Rocker Switch Operating Voltage - 12 or 24 V
In the Box:
- One (1) One-Touch Control
- Two (2) Stainless Steel tabs
- Two (2) actuators w/23' (7 M) cables
- Instruction Manual
*Sold as a Kit
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Improve boat trim control with the Lectrotab XKA Stainless Steel Trim Tab Kit with One-Touch Control. Designed for boats from 14 to 19 feet, this complete electric trim tab system combines 304 stainless steel tabs, precision-engineered actuators, and one-touch LED control for accurate tab positioning without hydraulic fluid. Its self-contained, non-hydraulic design supports straightforward installation because no components need to be installed inside the boat.
The 9 x 9-inch trim tabs are fabricated from 12-gauge, 304 stainless steel and feature a continuous rolled and pinned hinge. This construction provides added strength while eliminating the need for welding. The actuators are packaged in permanently sealed, non-metallic housings that resist corrosion and deterioration from sun or underwater exposure. Internal pressure equalization and braking systems help support reliable operation, while the actuator design delivers quiet performance and is load tested to push 1,000 pounds of force.
Lectrotab’s one-touch leveling LED control places trim adjustment at the operator’s fingertips. Unlike hydraulic trim tabs, this electric system uses no oil that can leak out. The kit includes two stainless steel tabs, two 12-volt actuators with 23-foot cables, one one-touch control, and an instruction manual. The actuator uses a standard or low-profile transom mounting bracket and provides a 2.25-inch stroke length for precise trim adjustment.
Key Features
-
Stainless Steel Trim Tabs: Two 9 x 9-inch tabs made from 12-gauge, 304 stainless steel for strength and reliable marine use.
-
One-Touch LED Control: Provides convenient control of the trim tabs and leveling adjustments.
-
Non-Hydraulic Design: Electric operation eliminates hydraulic oil from the trim tab system.
-
Sealed Actuators: Permanently sealed, non-metallic actuator housings are designed to resist corrosion and sun or underwater deterioration.
-
Quiet, Precise Operation: Precision-engineered actuators support quiet operation and accurate tab positioning.
-
Complete Kit: Includes tabs, actuators with cables, one-touch control, and instruction manual.
Product Details
-
Brand: Lectrotab
-
Part Number: XKASL9X9
-
Trim Tab Size: 9 x 9 inches
-
Recommended Boat Length: 14 to 19 feet
-
Trim Tab Material: 12-gauge, 304 stainless steel
-
Actuator Voltage: 12 volts DC
-
Actuator Stroke Length: 2.25 inches
-
Actuator Cable Length: 23 feet
-
Rocker Switch Operating Voltage: 12 or 24 volts
-
Package Contents: One one-touch control, two stainless steel tabs, two actuators with 23-foot cables, and instruction manual
-
Product Type: Trim tab kit
Choose the Lectrotab XKA Stainless Steel Trim Tab Kit for dependable electric trim adjustment and complete one-touch control on compatible boats.
Important: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Owners Manual: View the instruction manual
|
