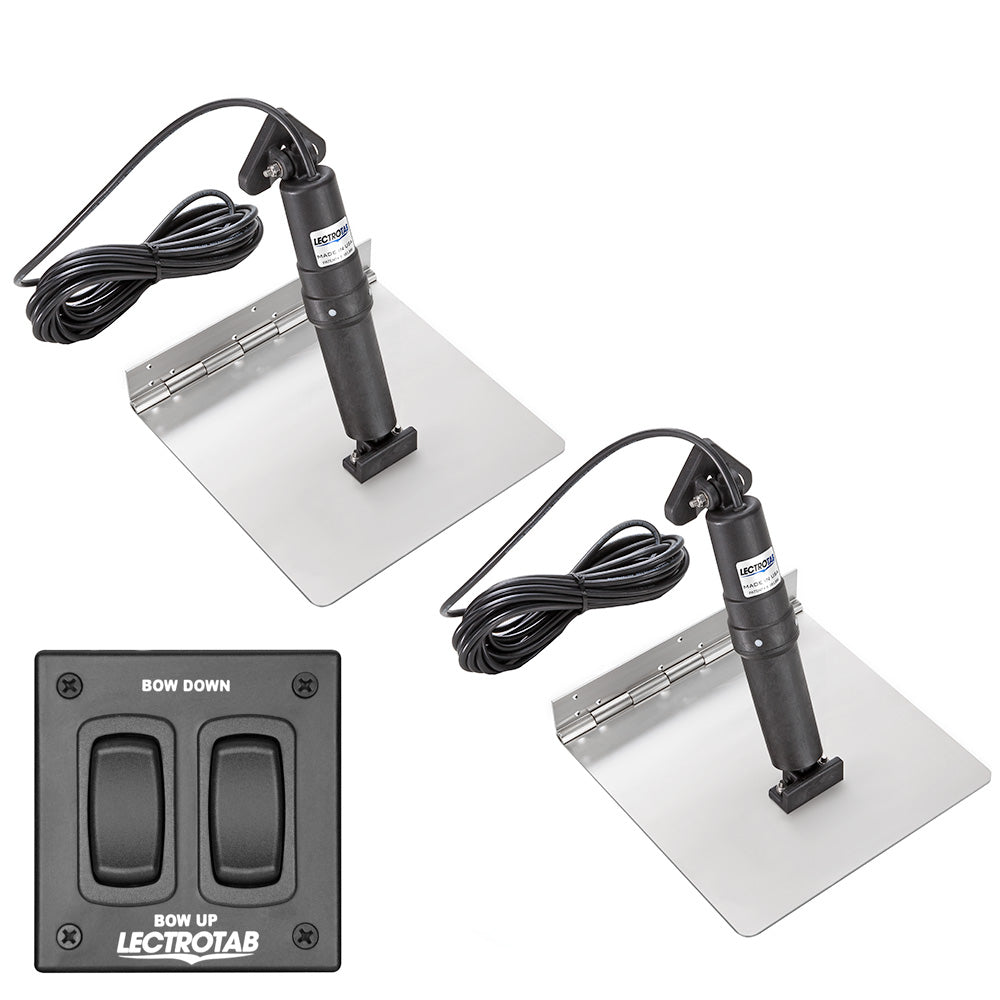

XKA Stainless Steel Trim Tab Kit with Rocker Switch - 12 x 12
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Trim Tab Size (L x W) - 12" x 12" (30 x 30 cm)
- Boat Length - 18' to 32' (5.5 to 9.5 M)
- Trim Tab Material - 12 gauge, 304 Stainless Steel
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
- Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
- Rocker Switch Operating Voltage - 12 or 24 V
In the Box:
- One (1) Flat Rocker Switch
- Two (2) Stainless Steel tabs
- Two (2) actuators w/23' (7 M) cables
- Instruction Manual
*Sold as a Kit
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Lectrotab XKA Stainless Steel Trim Tab Kit with Rocker Switch is a complete, non-hydraulic trim tab system for boats from 18 to 32 feet. Designed for reliable trim adjustment and straightforward installation, this kit combines two stainless steel trim tabs, two self-contained electric actuators, and a flat rocker switch for accurate tab positioning without hydraulic oil or components mounted inside the boat.
Each trim tab is fabricated from 12-gauge 304 stainless steel and uses a continuous rolled and pinned hinge for added strength without welded construction. The precision-engineered actuators operate quietly and are fully load tested to push up to 1,000 pounds of force. Their permanently sealed, non-metallic housings resist corrosion and deterioration from sun or underwater exposure, while the internal brake system helps prevent unwanted tab movement while underway or backing down.
The included Lectrotab flat rocker switch features improved sealing to help prevent water entry and a recessed rocker designed to help prevent breakage. Its instant-stop circuit stops actuator movement when the switch is released, helping prevent actuator overrun. With 23-foot actuator cables and a self-contained design, the Lectrotab XKA kit is suited for marine installations requiring electric trim tab control without a hydraulic system. This product is sold as a kit; consult the included instruction manual for installation details.
Key Features
-
Stainless Steel Trim Tabs: Two 12 x 12-inch tabs made from 12-gauge 304 stainless steel for durable marine use.
-
Continuous Rolled and Pinned Hinge: Adds strength while eliminating the need for welded tab construction.
-
Self-Contained Electric Actuators: Non-hydraulic design provides quiet operation without oil that can leak.
-
High Load Capacity: Actuators are fully load tested to push up to 1,000 pounds of force.
-
Flat Rocker Switch: Improved sealing, recessed rocker, and instant-stop operation help support dependable control.
-
Corrosion-Resistant Housing: Non-metallic external actuator structure cannot corrode and will not deteriorate in sun or underwater conditions.
Product Details
-
Brand: Lectrotab
-
Part Number: XKAF12X12
-
Trim Tab Size: 12 x 12 inches
-
Recommended Boat Length: 18 to 32 feet
-
Trim Tab Material: 12-gauge 304 stainless steel
-
Actuator Voltage: 12 V DC
-
Actuator Stroke: 2.25 inches
-
Actuator Cable Length: 23 feet
-
Rocker Switch Operating Voltage: 12 or 24 V
-
In the Box: One flat rocker switch, two stainless steel tabs, two actuators with 23-foot cables, and instruction manual
Important: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Choose the Lectrotab XKA Stainless Steel Trim Tab Kit for a complete electric trim tab solution built around durable stainless steel tabs, quiet actuators, and precise rocker-switch control.
Manufacturer Manual: View the instruction manual
|
