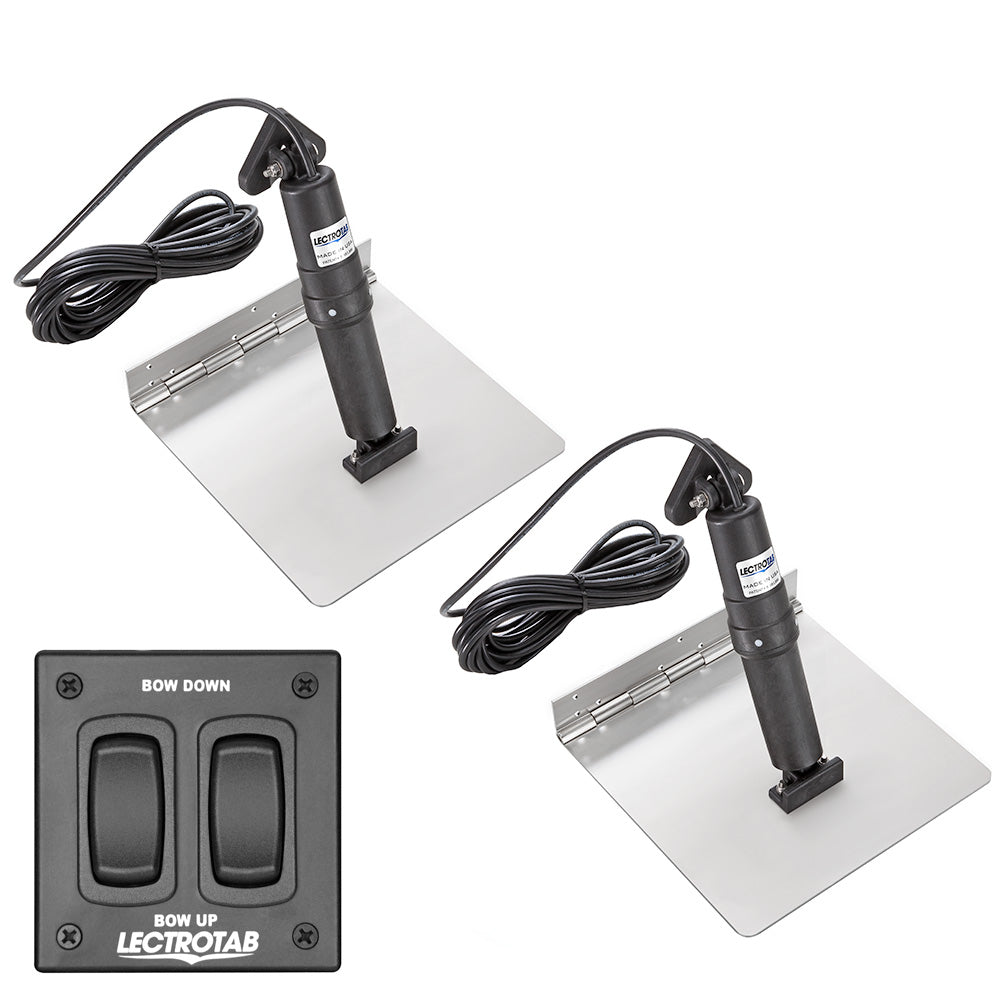

XKA Stainless Steel Trim Tab Kit with Rocker Switch - 12 x 18
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Trim Tab Size (L x W) - 12" x 18" (30 x 46 cm)
- Boat Length - 20' to 40' (6 to 12 M)
- Trim Tab Material - 12 gauge, 304 Stainless Steel
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
- Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
- Rocker Switch Operating Voltage - 12 or 24 V
In the Box:
- One (1) Flat Rocker Switch
- Two (2) Stainless Steel tabs
- Two (2) actuators w/23' (7 M) cables
- Instruction Manual
*Sold as a Kit
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Lectrotab XKA Stainless Steel Trim Tab Kit with Rocker Switch is a non-hydraulic trim tab system designed for boats from 20 to 40 feet. With two stainless steel trim tabs, precision-engineered actuators, and a flat rocker switch, this kit provides accurate tab positioning, quiet operation, and straightforward installation without requiring components inside the boat.
The trim tabs are fabricated from 12-gauge 304 stainless steel and feature a continuous rolled and pinned hinge for added strength without welded construction. Each actuator is housed in a sealed, non-metallic enclosure that resists corrosion and deterioration from sun or water exposure. The self-contained actuator design eliminates hydraulic oil, helping avoid oil leaks while delivering up to 1,000 pounds of pushing force per actuator.
The included Lectrotab flat rocker switch features improved sealing to help prevent water entry and a recessed rocker designed to help prevent breakage. Its instant-stop circuit stops the actuators when the switches are released, helping prevent actuator overrun. Internal pressure equalization and braking systems support reliable operation and help prevent unwanted tab movement while underway or backing down.
Designed for marine trim control applications, the Lectrotab XKA kit includes two stainless steel tabs, two 12-volt actuators with 23-foot cables, one flat rocker switch, and an instruction manual. The actuator uses a standard or low-profile transom mounting bracket and requires no hydraulic components.
Key Features:
-
Stainless steel trim tabs: Two 12-inch by 18-inch tabs made from 12-gauge 304 stainless steel provide a strong, corrosion-resistant trim surface.
-
Non-hydraulic actuator system: Self-contained actuators provide quiet operation without hydraulic oil or components installed inside the boat.
-
High-force actuation: Each actuator is fully load tested to push 1,000 pounds of force.
-
Protected actuator design: A sealed, non-metallic external housing resists corrosion and deterioration from sunlight or water.
-
Flat rocker switch: Improved sealing, recessed rocker construction, and an instant-stop circuit support convenient trim control.
-
Reliable tab positioning: Internal pressure equalization and braking systems help maintain controlled trim tab movement.
Product Details:
-
Brand: Lectrotab
-
Part number: XKAF12X18
-
Trim tab size: 12 inches by 18 inches
-
Recommended boat length: 20 to 40 feet
-
Trim tab material: 12-gauge 304 stainless steel
-
Actuator voltage: 12 volts DC
-
Actuator stroke length: 2.25 inches
-
Actuator cable length: 23 feet each
-
Rocker switch operating voltage: 12 or 24 volts
-
Included: One flat rocker switch, two stainless steel tabs, two actuators with 23-foot cables, and instruction manual
-
Return information: This product may not be returned to the original point of purchase. Contact the manufacturer directly with issues or concerns.
Choose the Lectrotab XKA Stainless Steel Trim Tab Kit for a durable, self-contained marine trim solution with precise control and easy installation.
