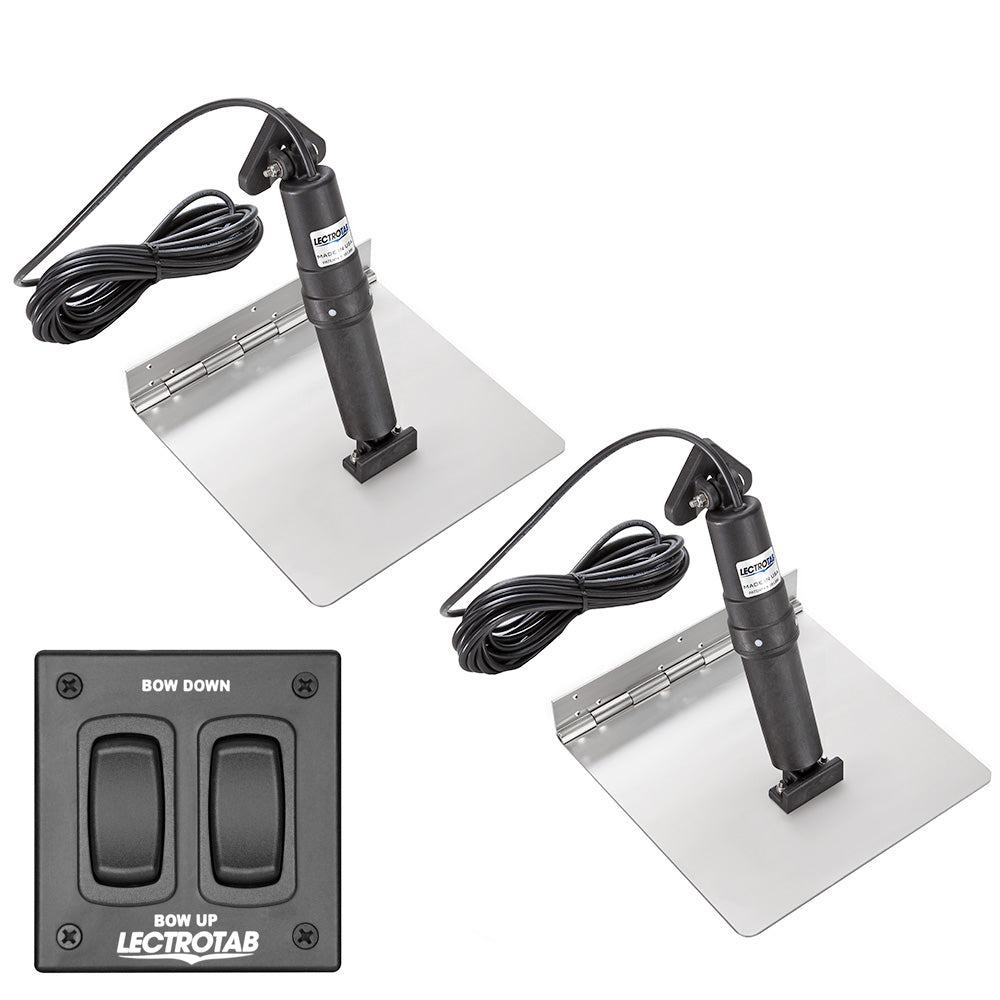

XKA Stainless Steel Trim Tab Kit with Rocker Switch - 12 x 24
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Trim Tab Size (L x W) - 12" x 24" (30 x 61 cm)
- Boat Length - 28' to 48' (8.5 to 14.5 M)
- Trim Tab Material - 12 gauge, 304 Stainless Steel
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
- Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
- Rocker Switch Operating Voltage - 12 or 24 V
In the Box:
- One (1) Flat Rocker Switch
- Two (2) Stainless Steel tabs
- Two (2) actuators w/23' (7 M) cables
- Instruction Manual
*Sold as a Kit
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Lectrotab XKA Stainless Steel Trim Tab Kit with Rocker Switch is designed for boats from 28 to 48 feet that need reliable, precise trim control without a hydraulic system. The kit combines durable 304 stainless steel trim tabs with self-contained 12-volt electric actuators and a flat rocker switch for convenient installation and operation.
Each stainless steel trim tab uses a continuous rolled and pinned hinge for added strength while eliminating the need for welding. The precision-engineered actuators provide quiet operation, accurate tab positioning, and up to 1,000 pounds of push force. Their sealed, non-metallic housings are designed to resist corrosion and deterioration from sun or water exposure, while the internal pressure equalization and brake systems help support dependable operation under way or while backing down.
Unlike hydraulic trim tabs, this Lectrotab system does not use oil, helping eliminate concerns about hydraulic fluid leaks. The actuator assembly is fully self-contained, so no components need to be installed inside the boat. The included flat rocker switch features improved sealing to help prevent water entry, a recessed rocker to help prevent breakage, and an instant-stop circuit that helps prevent actuator overrun when the switches are released.
The Lectrotab XKAF12X24 kit includes two 12 x 24-inch stainless steel tabs, two electric actuators with 23-foot cables, one flat rocker switch, and an instruction manual. It is intended for marine trim-tab installations on boats within the specified length range and operates with a 12-volt actuator system.
Key Features:
-
Continuous rolled and pinned hinge: Provides added tab strength while eliminating the need for welded construction.
-
Electric actuator system: Delivers quiet, non-hydraulic operation with up to 1,000 pounds of tested push force.
-
Self-contained design: Sealed actuator assemblies require no components to be installed inside the boat.
-
Corrosion-resistant construction: Uses 12-gauge 304 stainless steel tabs and non-metallic external actuator housings.
-
Flat rocker switch: Includes improved sealing, a recessed rocker, and instant-stop operation when released.
-
Internal control features: Pressure equalization and braking systems help support accurate positioning and reduce unwanted tab movement.
Product Details:
-
Brand: Lectrotab
-
Part number: XKAF12X24
-
Trim tab size: 12 x 24 inches
-
Recommended boat length: 28 to 48 feet
-
Trim tab material: 12-gauge 304 stainless steel
-
Actuator voltage: 12 volts DC
-
Actuator stroke: 2.25 inches
-
Actuator cable length: 23 feet
-
Rocker switch operating voltage: 12 or 24 volts
-
Included: One flat rocker switch, two stainless steel tabs, two actuators with cables, and instruction manual
-
Return information: This product may not be returned to the original point of purchase. Contact the manufacturer directly with any issues or concerns.
Choose the Lectrotab XKA XKAF12X24 trim tab kit for durable stainless steel construction, precise electric control, and a self-contained alternative to hydraulic trim tabs.
