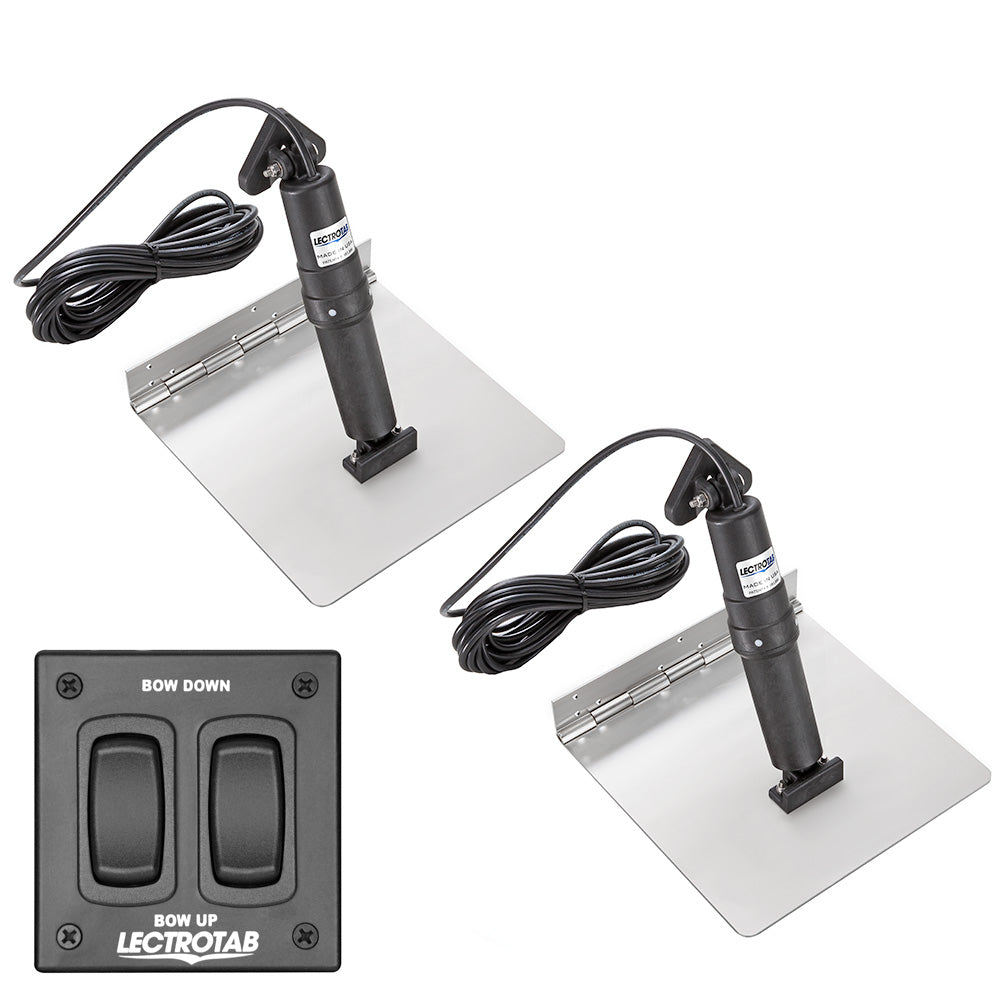

XKA Stainless Steel Trim Tab Kit with Rocker Switch - 12 x 9
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Trim Tab Size (L x W) - 12" x 9" (30 x 23 cm)
- Boat Length - 18' to 29' (5.5 to 8.5 M)
- Trim Tab Material - 12 gauge, 304 Stainless Steel
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
- Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
- Rocker Switch Operating Voltage - 12 or 24 V
In the Box:
- One (1) Flat Rocker Switch
- Two (2) Stainless Steel tabs
- Two (2) actuators w/23' (7 M) cables
- Instruction Manual
*Sold as a Kit
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Lectrotab XKA Stainless Steel Trim Tab Kit with Rocker Switch is a non-hydraulic trim tab system designed for boats from 18 to 29 feet. With corrosion-resistant stainless steel tabs, sealed electric actuators, and a flat rocker switch, this kit provides accurate trim adjustment, quiet operation, and a self-contained installation without hydraulic oil or components mounted inside the boat.
The 12-gauge, 304 stainless steel trim tabs use a continuous rolled and pinned hinge for added strength without welded construction. Each precision-engineered actuator is fully load tested to push 1,000 pounds of force and features an internal brake system to help prevent unwanted tab movement while underway or backing down. The upper ram seal is positioned to help protect it from damage caused by a fouled ram or barnacle growth, while the internal pressure equalization system supports reliable actuator operation.
The included Lectrotab flat rocker switch is designed with improved sealing to help prevent water entry and a recessed rocker to help reduce the risk of breakage. Its instant-stop circuit stops actuator movement when the switch is released, helping prevent actuator over-run. The actuators use permanently sealed, non-metallic housings that cannot corrode and do not require components to be installed inside the boat.
The Lectrotab XKA trim tab kit includes two stainless steel tabs, two 12-volt actuators with 23-foot cables, one flat rocker switch, and an instruction manual. It is intended for marine installations requiring electric trim tab control without a hydraulic system.
Key Features:
-
Continuous rolled and pinned hinge: Adds strength and eliminates the need for welded hinge construction.
-
Non-hydraulic electric operation: Provides trim adjustment without hydraulic oil that can leak.
-
Sealed actuator housing: Keeps the actuator assembly self-contained and helps prevent corrosion.
-
Internal brake system: Helps prevent unwanted trim tab movement while underway or backing down.
-
Flat rocker switch: Includes improved sealing, a recessed rocker, and an instant-stop circuit.
-
Marine-ready kit configuration: Includes two stainless steel tabs, two actuators, one rocker switch, and an instruction manual.
Product Details:
-
Brand: Lectrotab
-
Part Number: XKAF12X9
-
Trim tab size: 12 x 9 inches
-
Recommended boat length: 18 to 29 feet
-
Trim tab material: 12-gauge 304 stainless steel
-
Actuator voltage: 12 volts DC
-
Actuator stroke: 2.25 inches
-
Actuator cable length: 23 feet
-
Rocker switch operating voltage: 12 or 24 volts
-
Included quantity: Two trim tabs, two actuators, one flat rocker switch, and one instruction manual
-
Return information: This product may not be returned to the original point of purchase. Contact the manufacturer directly with issues or concerns.
Choose the Lectrotab XKA Stainless Steel Trim Tab Kit for a durable, self-contained electric trim tab solution backed by precise actuator control and marine-focused construction.
