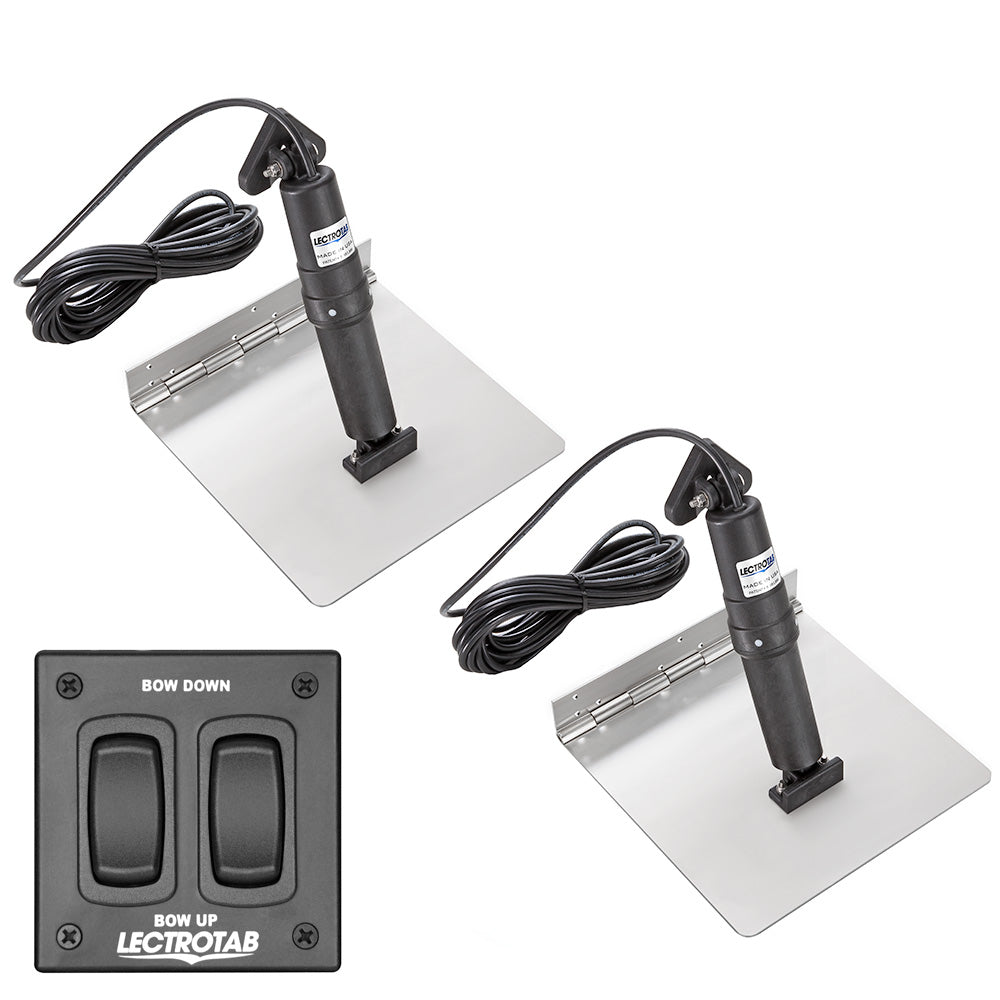

XKA Stainless Steel Trim Tab Kit with Rocker Switch - 9 x 12
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Trim Tab Size (L x W) - 9" x 12" (23 x 30 cm)
- Boat Length - 16' to 25' (5 to 7.5 M)
- Trim Tab Material - 12 gauge, 304 Stainless Steel
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
- Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
- Rocker Switch Operating Voltage - 12 or 24 V
In the Box:
- One (1) Flat Rocker Switch
- Two (2) Stainless Steel tabs
- Two (2) actuators w/23' (7 M) cables
- Instruction Manual
*Sold as a Kit
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Lectrotab XKA Stainless Steel Trim Tab Kit with Rocker Switch provides reliable, precise trim adjustment for boats from 16 to 25 feet. Designed for marine use, this non-hydraulic system combines durable stainless steel trim tabs, quiet electric actuators, and a sealed rocker switch for convenient control and straightforward installation.
Each trim tab is fabricated from 12-gauge 304 stainless steel with a continuous rolled and pinned hinge. This construction provides added strength while eliminating the need for welding. The precision-engineered 12-volt actuators are fully load tested to push 1,000 pounds of force and deliver accurate tab positioning with quiet operation. Because the actuator system is self-contained and non-hydraulic, there is no oil to leak, and no components need to be installed inside the boat.
The actuator assembly uses a non-metallic, permanently sealed housing designed to resist corrosion and deterioration from sun or underwater exposure. An internal pressure equalization system, internal brake system, and protected upper ram seal support dependable operation while helping prevent unwanted tab movement when underway or backing down. The flat rocker switch features improved sealing against water entry, a recessed rocker to help prevent breakage, and an instant-stop circuit when released to help prevent actuator over-run.
Key Features:
-
Stainless Steel Trim Tabs: Two 12-gauge 304 stainless steel tabs feature continuous rolled and pinned hinges for added strength without welded construction.
-
Non-Hydraulic Operation: Self-contained electric actuators eliminate hydraulic oil and do not require components inside the boat.
-
Strong Electric Actuators: Two 12-volt actuators are load tested to push 1,000 pounds of force and provide precise tab positioning.
-
Corrosion-Resistant Housing: Non-metallic sealed actuator housings resist corrosion and deterioration from sun or underwater exposure.
-
Sealed Flat Rocker Switch: Improved sealing, a recessed rocker, and instant-stop operation support convenient marine control.
Product Details:
-
Brand: Lectrotab
-
Part Number: XKAF9X12
-
Trim Tab Size: 9 x 12 inches
-
Recommended Boat Length: 16 to 25 feet
-
Actuator Voltage: 12 volts DC
-
Actuator Stroke: 2.25 inches
-
Actuator Cable Length: 23 feet
-
Rocker Switch Operating Voltage: 12 or 24 volts
-
Included: One flat rocker switch, two stainless steel tabs, two actuators with 23-foot cables, and instruction manual
-
Return Notice: This product may not be returned to the original point of purchase. Contact the manufacturer directly with any issues or concerns.
Choose the Lectrotab XKA Trim Tab Kit for durable stainless steel construction, quiet electric adjustment, and dependable non-hydraulic performance on compatible boats.
SEO Meta Description: Upgrade boat trim control with the Lectrotab XKA stainless steel trim tab kit, featuring quiet 12V actuators and a sealed rocker switch.
|
| Truck Freight: No |
| Oversized: No |
| Owners Manual Url: https://productimageserver.com/literature/ownersManual/96263OM.pdf |
