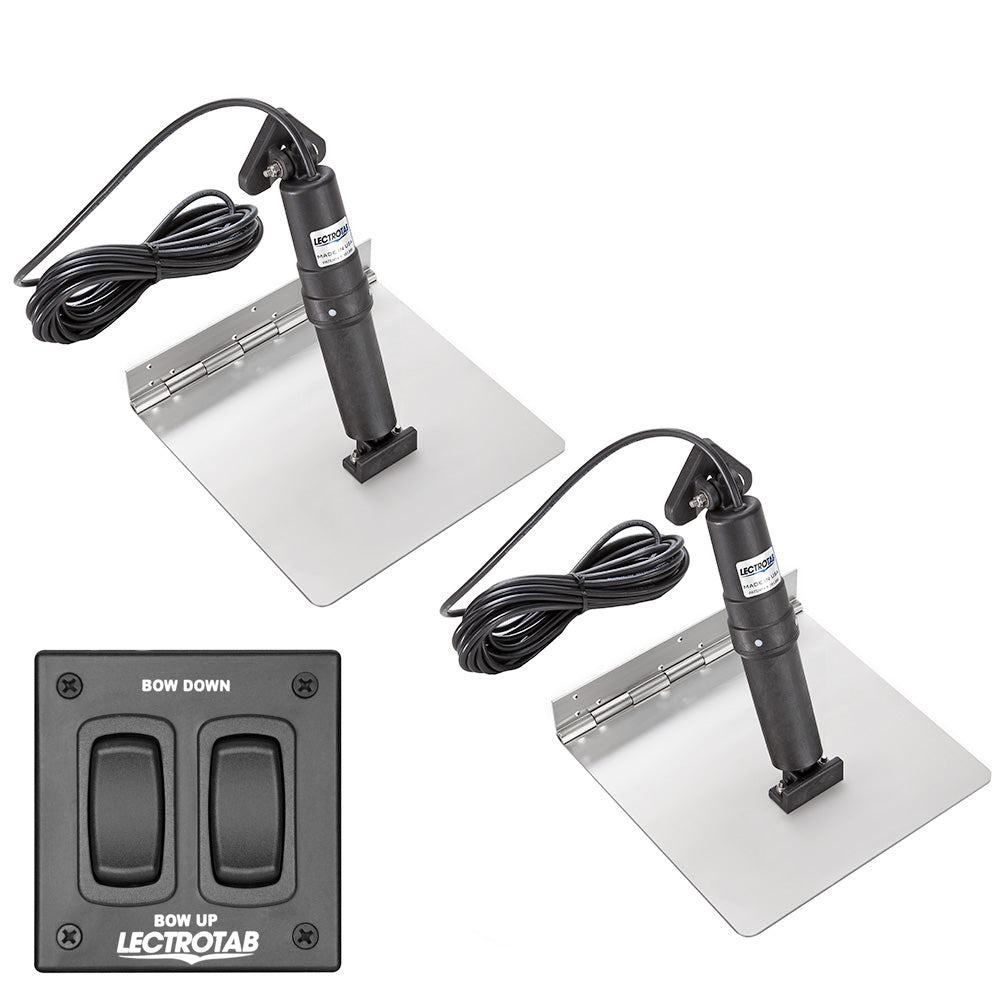

Lectrotab XKA Stainless Steel Trim Tab Kit with Rocker Switch, 9 x 18 Inch, Part XKAF9X18

XKA Stainless Steel Trim Tab Kit w/Rocker Switch - 9 x 18

The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.

Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.

Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.

Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.

Features:

• Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
• Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
• Utilizes internal pressure equalization system
• Internal brake system prevents unwanted tab movement when under way or backing down
• Quiet operation
• Actuators are fully load tested to push 1000 lbs of force
• Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water

Technical Specifications:

• Trim Tab Size (L x W) - 9" x 18" (23 x 46 cm)
• Boat Length - 21' to 30' (6.5 to 9 M)
• Trim Tab Material - 12 gauge, 304 Stainless Steel
• Actuator DC Voltage - 12 V
• Actuator Stroke Length - 2.25" (57 mm)
• Actuator Cable Length - 23' (7 M)
• Actuator Vertical Height - 11.875" (302 mm)
• Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
• Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
• Rocker Switch Operating Voltage - 12 or 24 V

In the Box:

• One (1) Flat Rocker Switch
• Two (2) Stainless Steel tabs
• Two (2) actuators w/23' (7 M) cables
• Instruction Manual

*Sold as a Kit

Lectrotab XKA Stainless Steel Trim Tab Kit with Rocker Switch is a complete, non-hydraulic trim tab system designed for boats from 21 to 30 feet. With two stainless steel tabs, two self-contained actuators, and a flat rocker switch, this kit helps provide accurate tab positioning, strong lifting force, and quiet operation for easier boat control on the water.

The trim tabs are fabricated from 12-gauge 304 stainless steel and feature a continuous rolled and pinned hinge. This construction adds strength while eliminating the need for welded hinges. Each precision-engineered actuator is fully load tested to push 1,000 pounds of force and includes a sealed, non-metallic housing that resists corrosion and will not deteriorate in sunlight or underwater environments. The self-contained design keeps installation straightforward because no actuator components need to be installed inside the boat.

Unlike hydraulic trim tab systems, the Lectrotab XKA uses an electric actuator design with no hydraulic oil to leak. An internal pressure equalization system, upper ram seal placement, and internal brake system support dependable operation and help prevent unwanted tab movement while underway or backing down. The flat rocker switch features improved sealing against water entry, a recessed rocker to help prevent breakage, and an instant-stop circuit when released to help prevent actuator overrun.

Key Features

• Stainless steel trim tabs: Two 12-gauge 304 stainless steel tabs provide a strong, corrosion-resistant installation.
• Self-contained electric actuators: Non-hydraulic actuators deliver quiet operation without hydraulic oil or components inside the boat.
• High lifting force: Actuators are fully load tested to push 1,000 pounds of force.
• Reinforced hinge design: Continuous rolled and pinned hinges add strength without requiring welding.
• Water-resistant rocker switch: Improved sealing and a recessed rocker support marine use, while the instant-stop circuit helps prevent actuator overrun.

Product Details

• Brand: Lectrotab
• Part number: XKAF9X18
• Trim tab size: 9 x 18 inches
• Recommended boat length: 21 to 30 feet
• Actuator voltage: 12 volts DC
• Actuator stroke: 2.25 inches
• Actuator cable length: 23 feet
• Rocker switch operating voltage: 12 or 24 volts
• Included: One flat rocker switch, two stainless steel tabs, two actuators with 23-foot cables, and instruction manual
• Quantity: Sold as one complete kit

Choose the Lectrotab XKA Stainless Steel Trim Tab Kit for a durable, accurately controlled electric trim tab solution tailored to recreational boats from 21 to 30 feet.

Return notice: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Owner's manual: View the instruction manual
