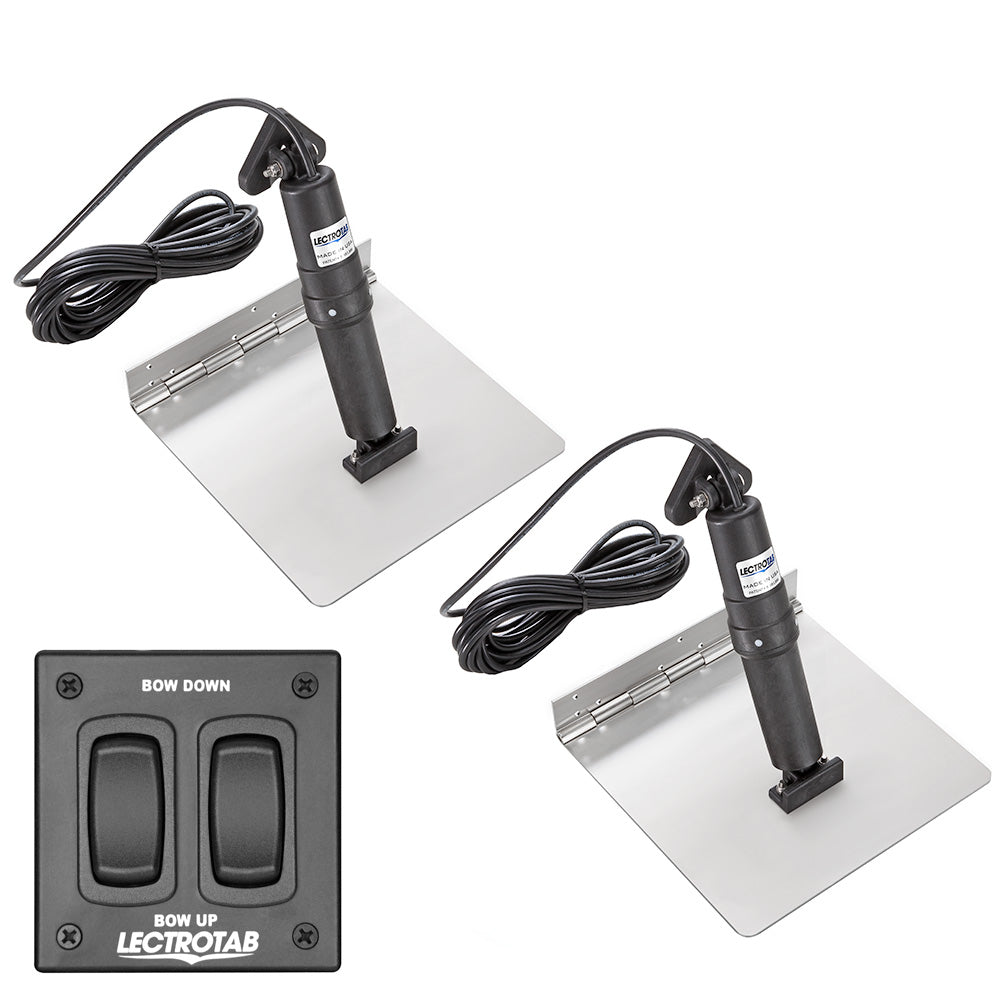

XKA Stainless Steel Trim Tab Kit with Rocker Switch - 9 x 9
The Lectrotab stainless steel trim tab design provides unmatched strength and reliability. All stainless steel tabs are fabricated with a continuous rolled and pinned hinge. This design eliminates the need for welding.
Combined with a precision-engineered actuator, this kit is built to combine quiet operation with a non-hydraulic, maintenance free design. The unit is corrosion free, ensures very accurate tab positioning, provides maximum lift force, and is totally self-contained for easy installation. The actuator assembly is packaged in a non-metallic permanently sealed housing. No components need to be installed inside the boat.
Most importantly, unlike hydraulic trim tabs, there is no oil to leak out. The actuator incorporates either a standard or low profile transom mounting bracket.
Lectrotab's new flat rocker switch has improved sealing to prevent water entry and recessed rocker to prevent breaking. Specially designed to provide and "instant stop" circuit when the switches are released, thus preventing actuator over-run.
Features:
- Continuous rolled and pinned hinge provides added strength and eliminates the need for welding
- Upper ram seal location cannot be damaged due to fouled ram or barnacle growth
- Utilizes internal pressure equalization system
- Internal brake system prevents unwanted tab movement when under way or backing down
- Quiet operation
- Actuators are fully load tested to push 1000 lbs of force
- Non-metallic external structure which cannot corrode and will not deteriorate in the sun or under water
Technical Specifications:
- Trim Tab Size (L x W) - 9" x 9" (23 x 23 cm)
- Boat Length - 14' to 19' (4 to 6 M)
- Trim Tab Material - 12 gauge, 304 Stainless Steel
- Actuator DC Voltage - 12 V
- Actuator Stroke Length - 2.25" (57 mm)
- Actuator Cable Length - 23' (7 M)
- Actuator Vertical Height - 11.875" (302 mm)
- Rocker Switch Dimensions (W x H) - 3.125" x 3.25" (79.4 x 82.5 mm)
- Rocker Switch Mounting Hole Cutout (H x W) - 2.25" x 2" (57.5 x 50 mm)
- Rocker Switch Operating Voltage - 12 or 24 V
In the Box:
- One (1) Flat Rocker Switch
- Two (2) Stainless Steel tabs
- Two (2) actuators w/23' (7 M) cables
- Instruction Manual
*Sold as a Kit
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Lectrotab XKA Stainless Steel Trim Tab Kit with Rocker Switch is a complete, non-hydraulic trim tab system designed for boats approximately 14 to 19 feet long. With two stainless steel tabs, sealed electric actuators, and a flat rocker switch, the XKAF9X9 kit provides accurate tab positioning, quiet operation, and straightforward installation without hydraulic fluid or components inside the boat.
Each trim tab is fabricated from 12-gauge 304 stainless steel and uses a continuous rolled and pinned hinge for added strength without welded construction. The precision-engineered actuators are fully load tested to push 1,000 pounds of force and feature sealed, non-metallic housings designed to resist corrosion and deterioration from sunlight or underwater exposure. An internal pressure equalization system, upper ram seal placement, and internal brake system support dependable operation while underway or backing down.
The included Lectrotab flat rocker switch features improved sealing to help prevent water entry and a recessed rocker designed to help prevent breakage. Its instant-stop circuit stops the actuators when the switches are released, helping prevent actuator over-run. The self-contained 12-volt actuator system includes two 23-foot cables, making this kit suitable for marine installations where quiet, maintenance-free electric trim tab operation is preferred.
KEY FEATURES:
-
Stainless steel trim tabs: Two 9 x 9-inch tabs made from 12-gauge 304 stainless steel provide a strong, corrosion-resistant tab surface.
-
Non-hydraulic electric operation: Sealed actuators eliminate hydraulic oil and do not require components to be installed inside the boat.
-
High-force actuators: Two 12-volt actuators are fully load tested to push 1,000 pounds of force.
-
Quiet, controlled adjustment: Accurate tab positioning and an internal brake system help support stable operation underway or while backing down.
-
Marine rocker switch: The flat rocker switch includes improved sealing, a recessed rocker, and an instant-stop circuit.
PRODUCT DETAILS:
-
Brand: Lectrotab
-
Part number: XKAF9X9
-
Tab size: 9 x 9 inches
-
Recommended boat length: 14 to 19 feet
-
Trim tab material: 12-gauge 304 stainless steel
-
Actuator voltage: 12 volts DC
-
Actuator stroke: 2.25 inches
-
Actuator cable length: 23 feet
-
Rocker switch operating voltage: 12 or 24 volts
-
In the box: One flat rocker switch, two stainless steel tabs, two actuators with 23-foot cables, and an instruction manual
Important: This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
Choose the Lectrotab XKA XKAF9X9 for a complete electric stainless steel trim tab solution built for reliable marine installation and precise control.
SEO META DESCRIPTION:
Lectrotab XKA stainless steel trim tab kit with rocker switch, sealed electric actuators, and 9 x 9-inch tabs for boats 14 to 19 feet.
|
| Truck Freight: No |
| Oversized: No |
| Owners Manual Url: https://productimageserver.com/literature/ownersManual/96262OM.pdf |
