• Lenco Marine 101XD Extreme Duty 12V Actuator with 2 1/4" Stroke and Mounting Hardware
1 1

Lenco Marine

Lenco Marine 101XD Extreme Duty 12V Actuator with 2 1/4" Stroke and Mounting Hardware

Lenco Marine 101XD Extreme Duty 12V Actuator with 2 1/4" Stroke and Mounting Hardware

29126

$325.97 USD
$325.97 USD
Sale Sold out
Shipping

102 in stock
  • 30-Day Returns
  • Secure Checkout
  • Free Shipping — Contiguous U.S.

Shipping & Delivery

Free standard shipping is available on all orders shipping within the Contiguous United States, with no minimum order. Alaska and Hawaii are excluded from free shipping. Orders are typically processed within 1–2 business days. See our Shipping Policy for complete terms.

Returns & Refunds

Eligible items may be returned within 30 days of delivery. Items must be new, unused, uninstalled, and in original packaging. An RMA is required.

Installment options at checkout are provided by Shop Pay and its partners and are subject to eligibility. Options depend on your purchase amount and may require a credit check by the financing partner. Terms, rates, and eligibility are determined by the financing partner. For details, see the Shop Pay Installments terms during checkout.

101 XD Actuator- 12 Volt- 2-1/4 Stroke with Mounting Hardware

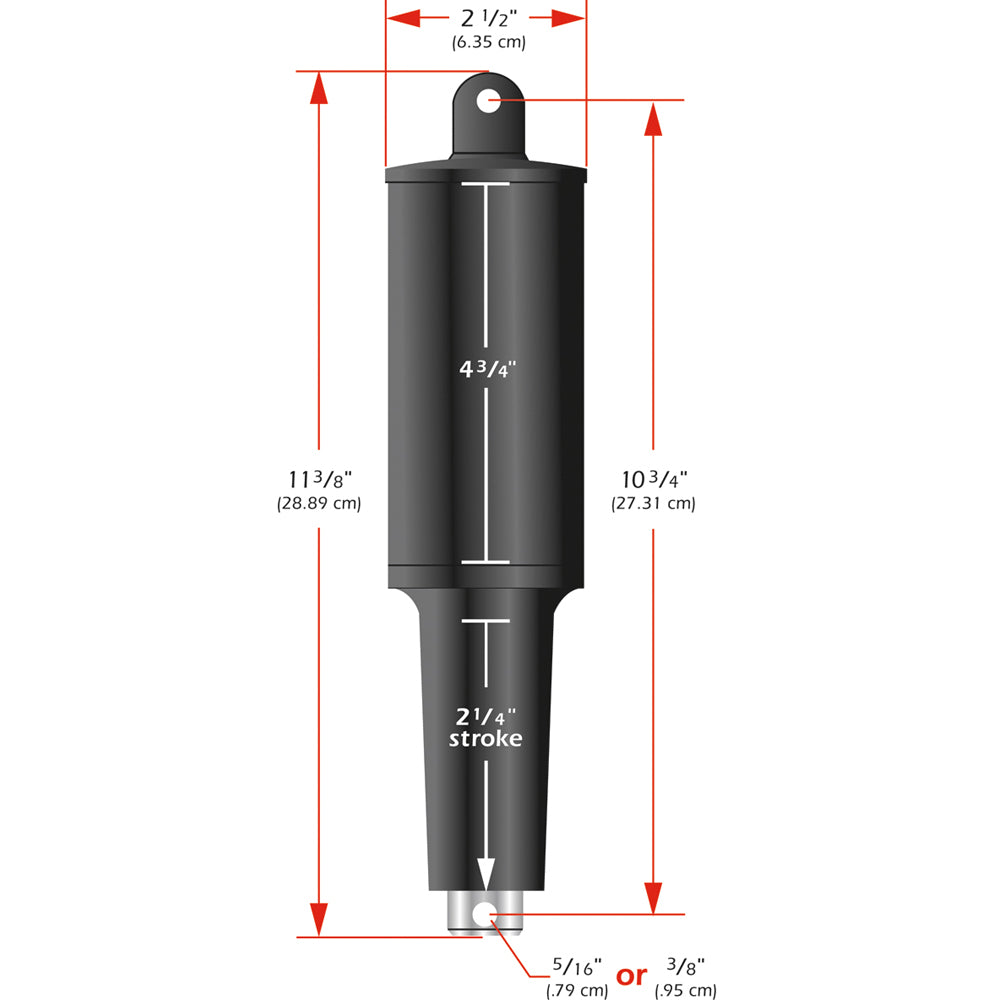

The 101 XD Actuator is used mostly with HD, XD, High Performance and Super Strong tabs. 2.25 stroke. Overall length (tip to tip) is 113/8 inches. Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.


Specifications:

  • Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
  • Stronger top cap and mounting clevis design
  • Improved pressure-tight torx screws
  • Integrated wiper seal at actuator base
  • Molded-in brass thrust bearing design
  • Thicker and stronger motor housing wall
  • Improved O-Ring design for more consistent seal
  • Over-molded cable providing a stronger tighter seal
  • Upper mounting bracket with gland seal

Features:

  • Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
  • Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
  • Lenco Actuator connections use waterproof "Plug Play" Deutsch connectors eliminating the possibility of water intrusion.
  • 12 Volt
  • 3/8" mounting hardware
  • 6 foot cable


WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

The Lenco Marine 101XD Extreme Duty 12V actuator is designed for demanding applications such as high-performance tabs, offering reliable and powerful operation. With a 2 1/4-inch stroke, this electric actuator provides precise control and smooth movement, making it ideal for boat transom adjustments, hatch lifts, or other marine lifting needs. Constructed from high-impact glass fiber filled, ultraviolet-resistant nylon, and stainless steel tubing, it withstands harsh marine environments while delivering consistent performance. The 101XD features advanced enhancements like the anti-extrusion ring seal stabilization system, a reinforced top cap and mounting clevis, and improved pressure-tight torx screws, ensuring durability and leak resistance. Its molded-in brass thrust bearing and thicker motor housing walls provide added strength, supporting up to 500 pounds of force with ease. Equipped with waterproof Deutsch
