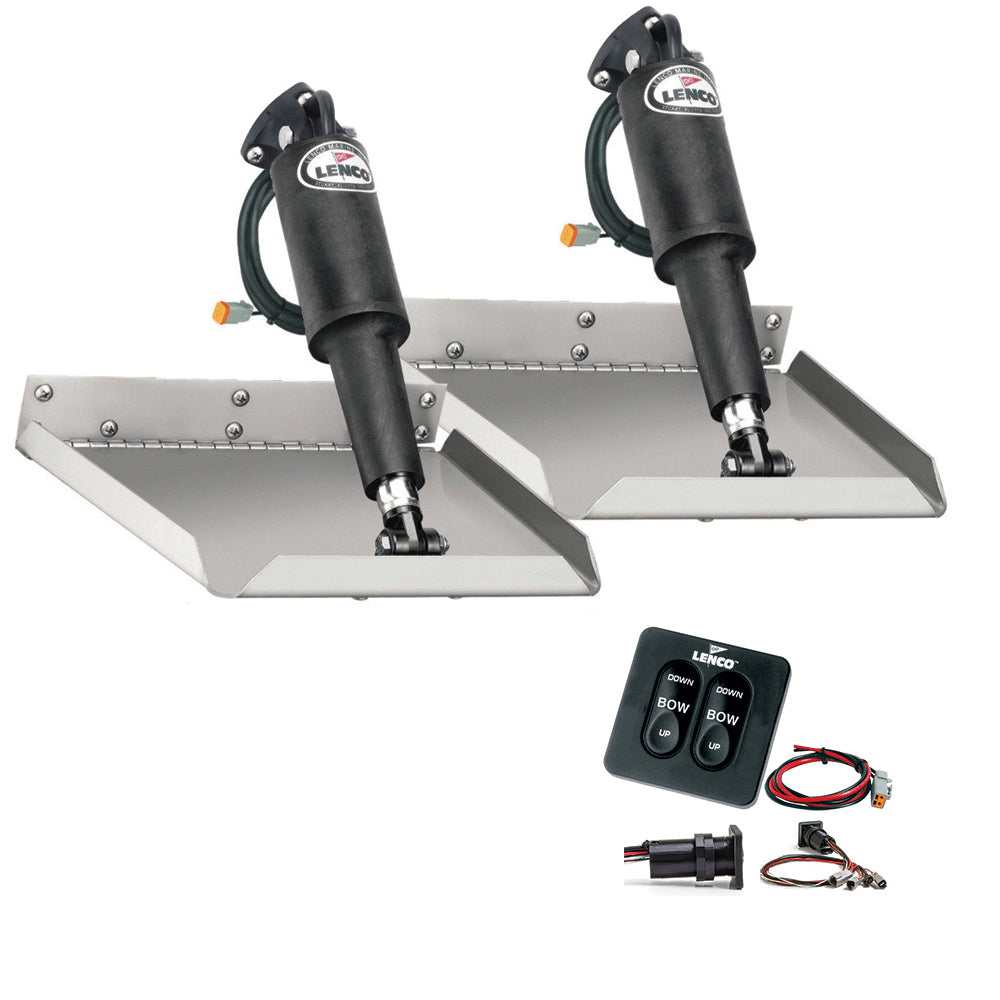

Lenco Marine 12" x 18" Edgemount Trim Tab Kit with Standard Tactile Switch - 12V

Edge Mount

Mounts the actuator at the trailing edge of the plane, requiring 4 less transom height than standard mount

Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious.

• Instant response electric actuators for precise control

• Everything is fully submersible, maintenance-free and sealed for life

• Self-locking ballscrew will not drift, even while backing down

• 12-gauge laser cut stainless steel trim tab planes

• High-impact corrosion-proof mounts look great through years of abuse

• Clean, time and space-saving installation

• Actuators have high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case

• 316 super buff stainless steel rams

Standard Solid State Tactile Switch Kits with Retractor Feature
#15069-001 (124SSR)
For 12-volt single actuator systems. Control box is waterproof, self-contained, sealed, solid state, Deutsch connected for easy Plug & Play installation, and features built-in retractor. Kit includes 36" power pigtail and nylon nuts for mounting keypad. Colorful display box.

Features

• Built-In Retractor Feature

• Solid State Electronics

• Plug & Play

• Low Profile Design

• Self-Contained, sealed keypad & solid state control box with waterproof connectors

• Simple, Quick Installation

• Includes 36" power pigtail for control box

• 2" hole cut-out size, overall size 2.75" x 2.75'

Each kit contains:

• Standard Tactile Switch Kit

• 2 Actuators with 6' lead & Deutsch Plugs

• 2 20' Actuator Extension Wiring Harness

• 2 12 gauge Stainless steel trim tab planes

• 2 Upper Mounting Bracket with Gland Seal

• 2 Lower Mounting Bracket

• All stainless steel mounting hardware

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Enhance your boat's performance with the Lenco Marine 12" x 18" Edgemount Trim Tab Kit, designed for precise control and superior maneuverability. This innovative edge mount system positions the actuator at the trailing edge of your vessel, requiring four less transom height, making installation easier and less intrusive. Crafted with the modern boater in mind, this kit features high-impact, corrosion-proof stainless steel trim tab planes and a sleek, low-profile control box that is fully sealed and waterproof, ensuring durability in harsh marine environments. The self-locking ballscrew design provides instant response and reliable operation, even while backing down, eliminating drift and ensuring your boat stays perfectly aligned. The high-impact nylon case and super buff stainless steel rams are UV-resistant and environmentally conscious, promising longevity and peace of mind for years to come. This kit includes everything needed for a quick, straightforward installation, including actuators, extension wiring harnesses, stainless steel mounting hardware, and a waterproof control box with a built-in retractor feature for added convenience. Whether you’re operating a small skiff or a luxury yacht, this trim tab system enhances ride quality, reduces spray, and boosts speed, providing a safer and more enjoyable boating experience. Designed for 12-volt single actuator systems, the kit offers plug-and-play simplicity with a 36-inch power pigtail and a colorful display box, making setup effortless. Optimize your vessel's performance with the Lenco Marine Edgemount Trim Tab Kit, a reliable, environmentally friendly solution built to withstand years of marine adventures.

Features:

• Edge mount design: Mounts at the trailing edge of the boat, reducing transom height requirements

• Instant response electric actuators: Precise control for optimal performance

• Fully sealed and maintenance-free: Submersible components built to last

• Self-locking ballscrew: Prevents drift even while backing down

• High-impact stainless steel trim planes: Corrosion-proof and durable

• UV-resistant nylon actuator case: Protects against sun damage and environmental wear

• 316 super buff stainless steel rams: Ensuring longevity and corrosion resistance

• Plug-and-play control box: Waterproof, sealed, and easy to install

• Built-in retractor feature: Adds convenience for maintenance and storage

• Complete kit: Includes actuators, wiring harnesses, mounting hardware, and control components
