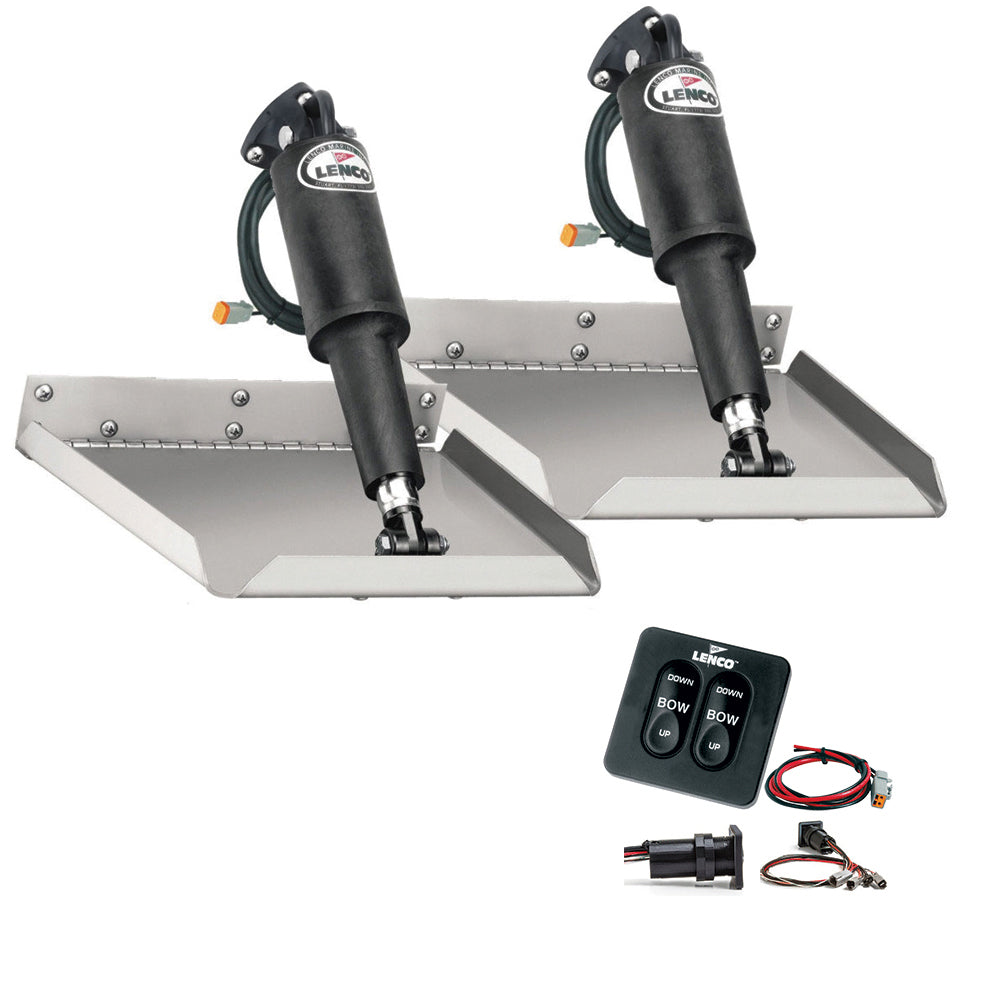

Lenco Marine 12" x 9" Edge Mount Trim Tab Kit with Standard Tactile Switch - 12V

Edge Mount

Mounts the actuator at the trailing edge of the plane, requiring 4 less transom height than standard mount

Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious.

• Instant response electric actuators for precise control

• Everything is fully submersible, maintenance-free and sealed for life

• Self-locking ballscrew will not drift, even while backing down

• 12-gauge laser cut stainless steel trim tab planes

• High-impact corrosion-proof mounts look great through years of abuse

• Clean, time and space-saving installation

• Actuators have high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case

• 316 super buff stainless steel rams

Standard Solid State Tactile Switch Kits with Retractor Feature
#15069-001 (124SSR)
For 12-volt single actuator systems. Control box is waterproof, self-contained, sealed, solid state, Deutsch connected for easy Plug & Play installation, and features built-in retractor. Kit includes 36" power pigtail and nylon nuts for mounting keypad. Colorful display box.

Features

• Built-In Retractor Feature

• Solid State Electronics

• Plug & Play

• Low Profile Design

• Self-Contained, sealed keypad & solid state control box with waterproof connectors

• Simple, Quick Installation

• Includes 36" power pigtail for control box

• 2" hole cut-out size, overall size 2.75" x 2.75'

Each kit contains:

• Standard Tactile Switch Kit

• 2 Actuators with 6' lead & Deutsch Plugs

• 2 20' Actuator Extension Wiring Harness

• 2 12 gauge Stainless steel trim tab planes

• 2 Upper Mounting Bracket with Gland Seal

• 2 Lower Mounting Bracket

• All stainless steel mounting hardware

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Enhance your boat's performance and ride quality with the Lenco Marine 12" x 9" Edgemount Kit, designed for quick and reliable installation at the trailing edge of your vessel. This innovative edge mount reduces transom height requirements by four inches compared to standard mounts, providing a sleek and efficient setup that maximizes space and functionality. Incorporating trim tabs as standard equipment is essential for smooth, dry, and fast boating, and Lenco's advanced design ensures superior control and response, whether on a small skiff or a luxury yacht.
Built with durability and ease of use in mind, the kit features instant response electric actuators for precise adjustments, complete submersion capability, and maintenance-free operation sealed for life. The self-locking ballscrew design prevents drift even during backing down, offering reliable positioning without additional intervention. The trim planes are constructed from 12-gauge laser-cut stainless steel, ensuring longevity and resistance to corrosion, while the 316 super buff stainless steel rams provide added strength and corrosion resistance for demanding marine environments.
The control system includes a sealed, waterproof solid-state control box with a built-in retractor feature, making installation straightforward and clutter-free. The control box's plug-and-play design and included wiring harnesses facilitate quick setup, while the low-profile design ensures minimal intrusion on your boat’s deck space. The kit also includes a tactile switch with a built-in retractor, stainless steel mounting hardware, and all necessary components for a comprehensive upgrade.
Designed for 12-volt systems, this kit offers a reliable, environmentally conscious solution that enhances boat handling and safety. Whether adjusting for speed, stability, or comfort, the Lenco Edgemount Kit provides a professional-grade upgrade that will last for years. Perfect for boat owners seeking improved control, faster response, and a clean installation, this trim tab system is an essential addition for any serious marine enthusiast.

Features:

• Edge mount design reduces transom height requirements by four inches

• Instant response electric actuators for precise control

• Fully submersible, maintenance-free, sealed for life

• Self-locking ballscrew prevents drift during backing down

• 12-gauge laser-cut stainless steel trim planes for durability

• 316 super buff stainless steel rams resist corrosion

• Built-in retractor feature in control box for ease of use

• Waterproof, sealed solid-state control box with Deutsch connectors

• Plug & Play installation for quick setup

• Low profile, space-saving control system

Truck Freight: No
Oversized: No
