Lenco Marine 15057-001 Short Extreme Duty 12V Actuator with 2-1/4" Stroke and Mounting Hardware

101XDS Short Extreme Duty Actuator - 12V - 2-1/4" Stroke with Mounting Hardware

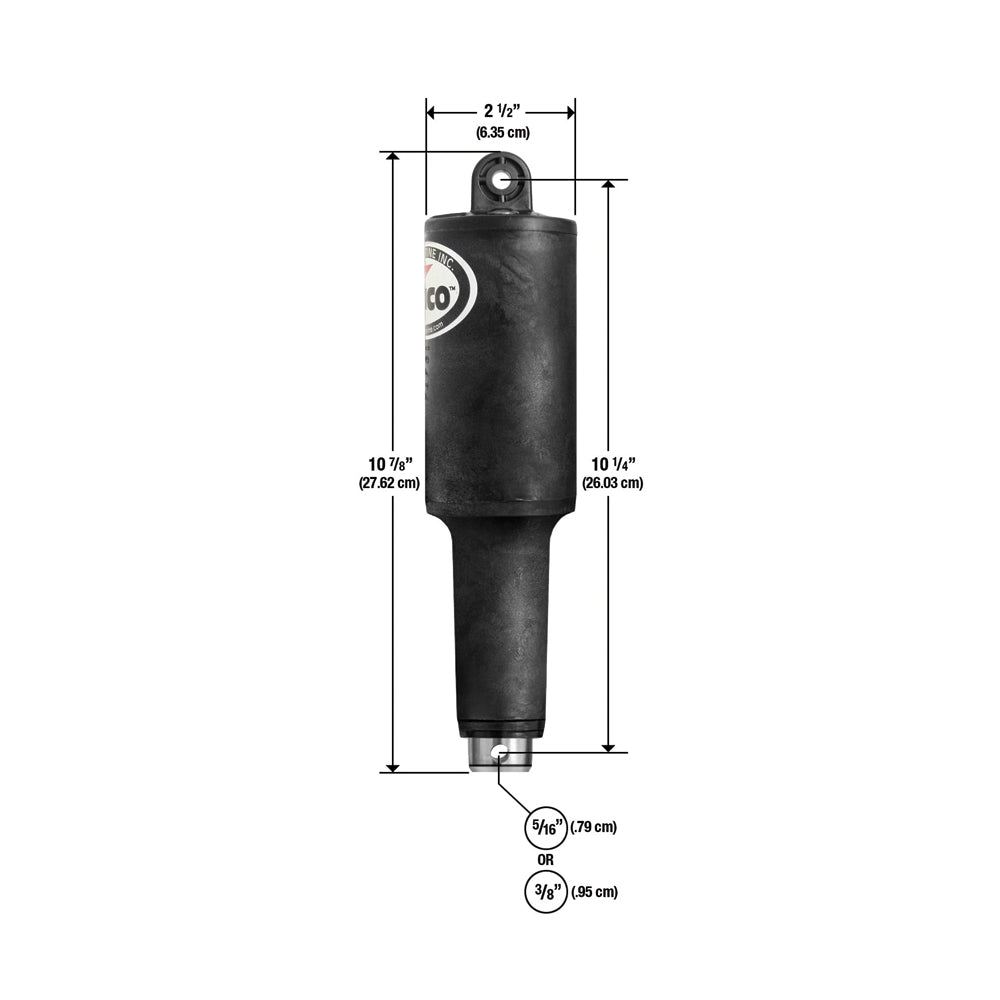

The 101 XDS Actuator is used with OEM specific kits and limited space applications. It is the shortest actuator manufactured. 2.25 stroke and overal length (tip to tip) is 10 ^7/8 inches. Instant response electric actuators are made of high impact glass fiber filled, ultraviolet-resistant nylon material with 316 super buff stainless steel tubing.

Specifications:

• Newly implemented Anti Extrusion Ring (AXR) seal stabilization system.
• Stronger top cap and mounting clevis design
• Improved pressure-tight torx screws
• Integrated wiper seal at actuator base
• Molded-in brass thrust bearing design
• Thicker and stronger motor housing wall
• Improved O-Ring design for more consistent seal
• Over-molded cable providing a stronger tighter seal
• Upper mounting bracket with gland seal

Features:

• Lenco's ballscrew design is more reliable and twice as powerful compared to typical hydraulics
• Lenco's tough, high-torque actuator motor easily pushes 500 pounds.
• Lenco Actuator connections use waterproof "Plug Play" Deutsch connectors eliminating the possibility of water intrusion.
• 12 Volt
• 5/16" mounting hardware
• 6 foot cable

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Lenco Marine 15057-001 101XDS Short Extreme Duty 12V Actuator is designed for demanding applications where space is limited and reliable performance is essential. Ideal for OEM-specific kits, this compact actuator offers a 2-1/4 inch stroke with an overall length of just under 11 inches, making it the shortest actuator in its class. Constructed from high-impact glass fiber-filled, ultraviolet-resistant nylon with durable 316 stainless steel tubing, it ensures longevity and resistance to harsh marine environments. Its robust design features a molded-in brass thrust bearing and a thicker motor housing wall, providing enhanced durability under demanding conditions. The upgraded anti-extrusion ring (AXR) seal stabilization system, improved pressure-tight torx screws, and integrated wiper seal at the base work together to prevent leaks and improve sealing performance. The actuator's advanced ballscrew design offers twice the power and reliability compared to traditional hydraulic systems, easily pushing loads up to 500 pounds. Waterproof Deutsch "Plug & Play" connectors simplify installation and eliminate water intrusion risks, making it suitable for marine, RV, and heavy-duty industrial applications. The 6-foot cable provides ample length for versatile mounting options, and the included 5/16-inch mounting hardware ensures secure attachment. Designed to withstand the rigors of demanding environments, the Lenco 101XDS actuator combines high torque, compact size, and advanced sealing technology to deliver dependable operation where space is limited but performance cannot be compromised.
