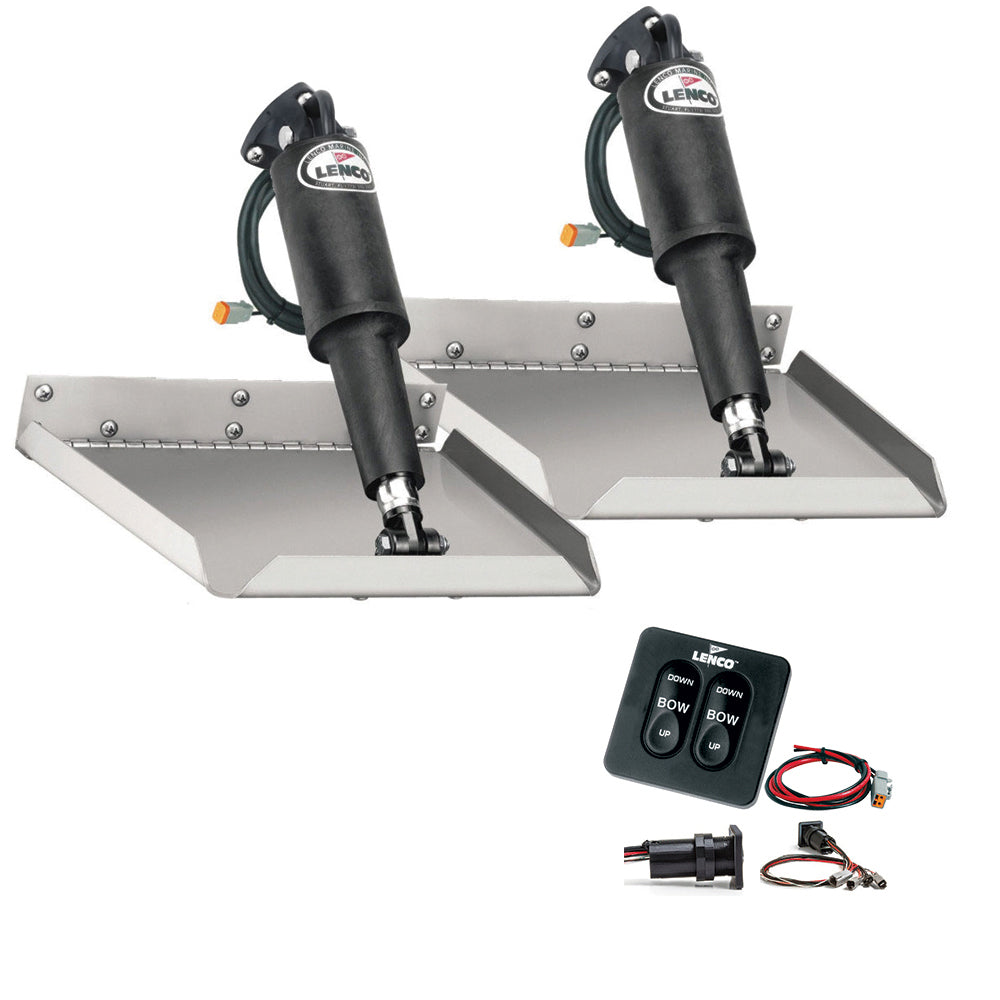

Lenco Marine 9" x 9" Edge Mount Trim Tab Kit with Standard Tactile Switch - 12V

Edge Mount

Mounts the actuator at the trailing edge of the plane, requiring 4 less transom height than standard mount

Trim tabs make the single most important difference in the way your boat rides and performs. They are optional on some boats but should be as standard as power trim and tilt. Lenco trim tabs make your boat ride smoother, drier, faster and with increased safety whether on a small skiff or a mega-yacht. Lenco's ballscrew design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. We also like being oil-free and environmentally conscious.

• Instant response electric actuators for precise control

• Everything is fully submersible, maintenance-free and sealed for life

• Self-locking ballscrew will not drift, even while backing down

• 12-gauge laser cut stainless steel trim tab planes

• High-impact corrosion-proof mounts look great through years of abuse

• Clean, time and space-saving installation

• Actuators have high-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case

• 316 super buff stainless steel rams

Standard Solid State Tactile Switch Kits with Retractor Feature
#15069-001 (124SSR)
For 12-volt single actuator systems. Control box is waterproof, self-contained, sealed, solid state, Deutsch connected for easy Plug & Play installation, and features built-in retractor. Kit includes 36" power pigtail and nylon nuts for mounting keypad. Colorful display box.

Features

• Built-In Retractor Feature

• Solid State Electronics

• Plug & Play

• Low Profile Design

• Self-Contained, sealed keypad & solid state control box with waterproof connectors

• Simple, Quick Installation

• Includes 36" power pigtail for control box

• 2" hole cut-out size, overall size 2.75" x 2.75'

Each kit contains:

• Standard Tactile Switch Kit

• 2 Actuators with 6' lead & Deutsch Plugs

• 2 20' Actuator Extension Wiring Harness

• 2 12 gauge Stainless steel trim tab planes

• 2 Upper Mounting Bracket with Gland Seal

• 2 Lower Mounting Bracket

• All stainless steel mounting hardware

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Enhance your boat's performance and safety with the Lenco Marine 9" x 9" Edge Mount Trim Tab Kit. Designed for boat owners seeking precise control and reliable operation, this trim tab system is ideal for a range of vessels from small skiffs to large yachts. The edge mount design allows for installation at the trailing edge of the boat, requiring four fewer transom height measurements than traditional mounts, simplifying installation and maximizing space. Lenco's innovative ballscrew design provides instant response, three times the power of hydraulic systems, and features a maintenance-free, sealed, oil-free construction that is environmentally conscious. The stainless steel trim planes, high-impact mounts, and UV-resistant nylon actuators ensure durability against harsh marine conditions, delivering smooth, dry, and faster rides with increased safety. The kit includes two high-powered electric actuators with 6-foot leads and Deutsch connectors, a waterproof control box with a built-in retractor feature, and all necessary stainless steel mounting hardware for a straightforward plug-and-play setup. The low-profile control keypad, with a 2.75-inch overall size and 2-inch hole cut-out, offers quick and simple installation, making it accessible for both seasoned boaters and DIY enthusiasts. Whether you're optimizing performance or improving safety, the Lenco trim tab system provides precise, reliable, and environmentally friendly control for your vessel. Its versatile design and robust construction make it an excellent upgrade for any boat operator looking to improve ride quality and handling. Trust Lenco Marine's reputation for quality marine equipment and enjoy a smoother, safer boating experience. The system is suitable for 12-volt single actuator setups and features a self-locking ballscrew that prevents drift, even when backing down, ensuring consistent performance over time.
