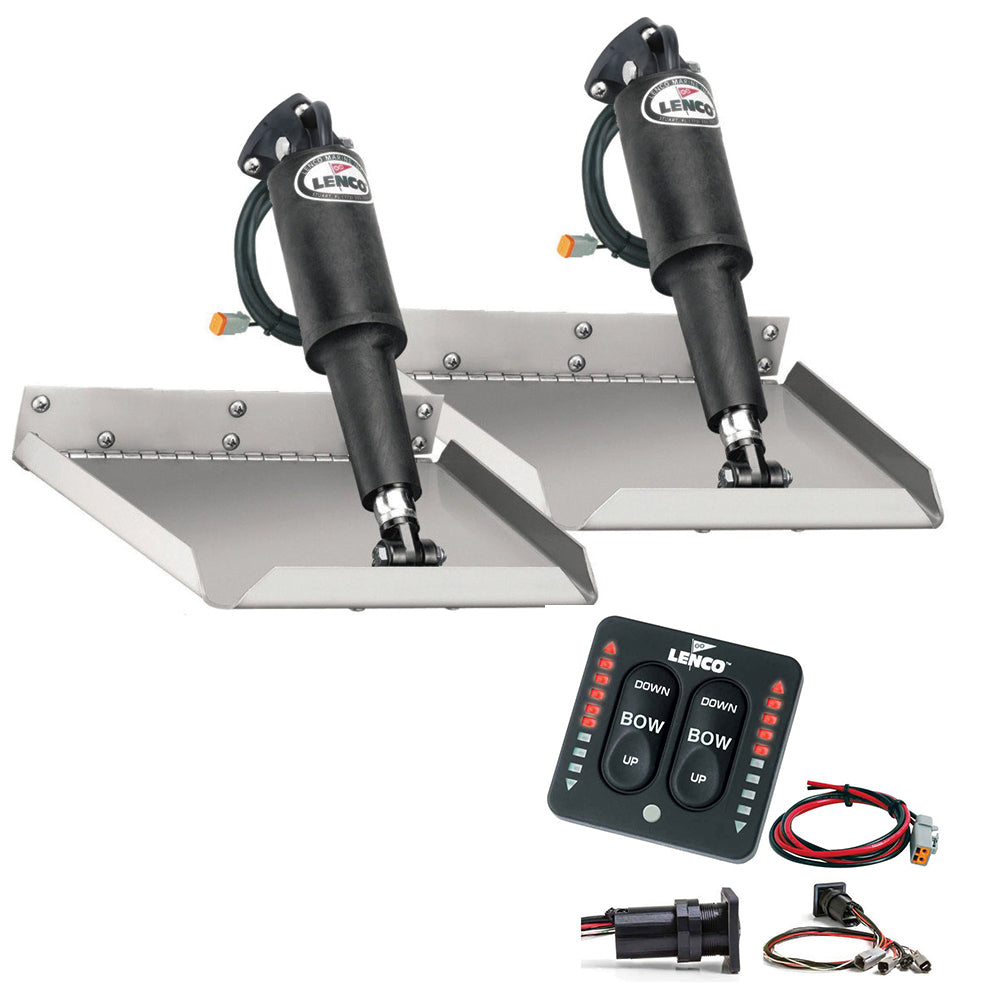

Lenco Marine Edge Mount Trim Tab Kit with LED Indicator Switch - 9 x 12 Inches

Edge Mount Trim Tab Kit w/LED Indicator Switch Kit

Lenco Electric Edge Mount Trim Tab Kits make your boat ride smoother, dryer, faster and with increased safety whether on a small skiff or a large yacht. The Lenco ball screw design is more reliable, three times more powerful and features an instant response, which makes them very user friendly compared to typical hydraulics. Lenco fast response electric actuators are fully submersible with all plug & play waterproof Deutsch connections. Edge Mount actuators mount at the trailing edge of the plane, requiring 4" (10.16 cm) less transom height than Lenco standard mount trim tabs.

Suggested Boat Length:16'-25'
L" x W": 9" x 12"
Hinge Height: 2"
Minimum Transom Height: 13.5"

Kit Contents

• 2 each of 12-gauge stainless steel trim tab blades

• 2 each of #15054-001 actuator with 6' leads & Deutsch plugs

• 2 each of #30133-103 20' actuator extension wiring harnesses

• 2 each of #15085-001 (116) upper mounting brackets with gland seal

• 2 each of #50014-001 (119) lower mounting brackets

• 1 each of the Lenco owner's / installation manual

• All necessary stainless steel mounting hardware

Specifications:

• Blades: 12 Gauge Stainless Steel

• Finish:Smooth

• Class: Fuel Efficient

• Compliance: CE Certified

• Compatibility: Any Boat

LED Indicator Switch Kit

With Built-In Retractor & Self-Check Features For Single Actuator Systems / 12 & 24-Volt

Lenco Waterproof Trim Tab Tactile Switch Kits complete your trim tab system with totally waterproof, maintenance-free, and easy-to-install tactile switches.

The Lenco indicator switch is the most advanced trim tab switch available. The switch itself is completely waterproof, and has an over-molded connector to eliminate water intrusion. L.E.D. indicator lights let you know exactly where your trim tabs are at all times. A backlit keypad automatically illuminates graphics for night viewing. A photo eye reads ambient light and adjusts the indicator intensity for optimum viewing in all lighting conditions.

The standard tactile switch is built to all the same exacting standards as the indicator switches.

Kit Contents

• Self-contained sealed Key Pad

• Control box

• 36" Power Pigtail.

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Upgrade your boat's performance and safety with the Lenco Marine Edge Mount Trim Tab Kit, designed specifically for vessels from 16 to 25 feet. Featuring a sleek, low-profile edge mount design, this kit provides a smoother, dryer, and faster ride by optimizing boat attitude and reducing drag. The innovative ball screw design delivers three times the power and rapid response compared to traditional hydraulic systems, ensuring precise control at all times. Fully submersible and equipped with waterproof Deutsch connectors, the electric actuators are built for durability and reliable performance in harsh marine environments. The edge mount configuration requires 4 inches less transom height, making installation easier and more discreet without sacrificing functionality. The kit includes two durable 12-gauge stainless steel blades with a smooth finish, along with all necessary stainless steel hardware. Compatible with any boat, the system is CE certified for safety and efficiency, making it ideal for recreational or commercial use. The included LED indicator switch features a waterproof, tactile design with backlit graphics that automatically adjust brightness based on ambient light, providing clear visibility day or night. Its self-check and retractor features enhance ease of operation, giving boaters confidence in their trim system. The control box and 36-inch power pigtail simplify wiring and setup, ensuring a straightforward installation process. Whether you're looking to improve handling, increase safety, or enhance the overall boating experience, this trim tab kit delivers advanced technology and dependable craftsmanship from Lenco Marine. Engineered for seamless integration and long-term reliability, it offers a significant upgrade over traditional hydraulic systems, providing precise control and peace of mind on the water.

Features:

• Edge mount design: Requires 4 inches less transom height for easier installation

• Ball screw technology: Provides three times the power and rapid response for optimal trim control

• Fully submersible actuators: Waterproof Deutsch connectors ensure durability in harsh marine conditions

• Stainless steel blades: 12-gauge, smooth finish for corrosion resistance and longevity

• LED indicator switch: Waterproof, backlit, with self-check and retractor features for enhanced usability
