Lenco Marine Heavy Duty Performance 18" x 14" Trim Tab Kit with LED Indicator Switch - 12V

Heavy Duty Performance Trim Tabs


Fast response electric actuators for precise control. Fully submersible. All Plug

Running wide open in rough seas isn't for the faint of heart. Aggressive boating requires durable boat accessories. Lenco's HD series of trim tabs are built to handle whatever you or Mother Nature might throw at them. Everything about your boat is designed to go hard and fast. Why should your trim tab system be any different

• All stainless steel construction (no dissimilar metals), Electro-Polished Blades for long lasting good looks

• Actuator speed is precise and controllable so there are no surprises at top speeds

• Models have massive backplates and adjustable mounting channels with thru-bolted actuators for the ultimate in strength and reliability

• Models use solid stainless steel billet rams that are chemically polished for unsurpassed durability

Actuators

• Instant response

• Fully submersible, maintenance-free and sealed for life

• High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case

• 5/16 stainless steel bolts

Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab Systems
Features:

• Self-contained, sealed keypad

• Self-contained, sealed control box module

• Fade/smudge-proof, laser engraved graphics

• Plug & play switch wiring harness connector

• Includes 36" power pigtail for control box

• 2" hole cut-out size, overall size 2.75" x 2.75"

• Built-in retract feature returns tabs to a fully retracted position when power is removed

• 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times

• Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight

• 12 & 24-volt compatibility

• Includes Self-Check Feature

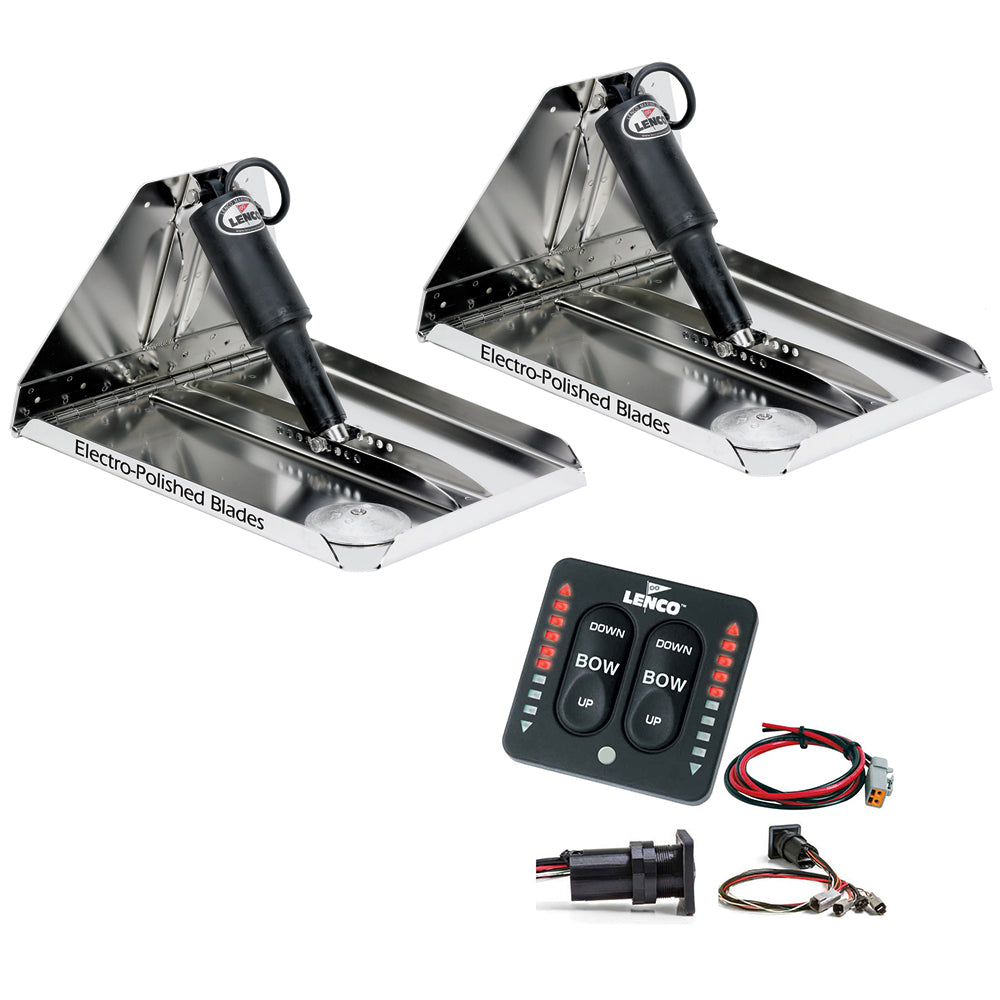

Each kit contains:

• Tactile LED Indicator Switch Kit

• 2 actuators wth 6' Lead and Deutsch Plugs

• 2 12 Gauge SS Electro-Polished trim tab planes

• 2 20' Actuator Extension Wiring Harnesses

• Boat-Mounting Hardware supplied by customer

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Designed for demanding marine applications, the Lenco Marine RT18X14HDI Heavy Duty Performance Trim Tab Kit offers exceptional durability and precise control for aggressive boating in rough seas. Featuring all stainless steel construction and electro-polished blades, this system resists corrosion and maintains its sleek appearance over time. The high-speed electric actuators respond instantly, providing smooth adjustments to optimize boat performance and stability at high speeds. With massive backplates, adjustable mounting channels, and thru-bolted actuators, this kit ensures maximum strength and reliability in harsh conditions. The solid stainless steel billet rams are chemically polished for unparalleled durability, making these trim tabs ideal for boats that push the limits of speed and rough water handling.

Equipped with fully sealed, maintenance-free actuators housed in impact-resistant, UV-resistant nylon cases, these trim tabs are designed to operate fully submerged without failure. The system includes a tactile switch with an LED indicator, allowing for easy, intuitive control and real-time position feedback. The self-contained sealed control box and keypad feature fade-proof, laser-engraved graphics, with a plug-and-play wiring harness for straightforward installation. The LED indicators automatically adjust their brightness based on ambient light, ensuring clear visibility in direct sunlight. The kit’s retract feature safely returns the trim tabs to a fully retracted position when power is removed, safeguarding the system and boat.

Each package includes two 12-inch actuators with 6-foot leads and Deutsch plugs, two electro-polished 12-inch stainless steel trim planes, two 20-foot actuator extension wiring harnesses, and the necessary mounting hardware (hardware sold separately). Designed for compatibility with 12V and 24V systems, this kit is perfect for boat owners who demand high performance and reliability from their trim tabs. Built for the toughest marine environments, the Lenco Marine Heavy Duty Performance Trim Tab Kit ensures your vessel maintains optimal handling, speed, and stability in any condition.

Features:

• All stainless steel construction with electro-polished blades for corrosion resistance and aesthetic appeal

• High-speed electric actuators for precise and instant response during operation

• Fully sealed, maintenance-free actuators housed in impact and UV-resistant nylon cases

• Massive backplates and adjustable mounting channels for maximum strength and reliability

• Solid stainless steel billet rams, chemically polished for durability

• Tactile switch with LED indicator for easy control and real-time position monitoring

• Self-contained, sealed keypad and control box with fade-proof, laser-engraved graphics

• Plug & play wiring harness for simplified installation

• Automatic retract feature ensures tabs return to a safe position when power is off

• Automatic LED brightness adjustment for clear visibility in direct sunlight

• Compatible with 12V and 24V electrical systems
