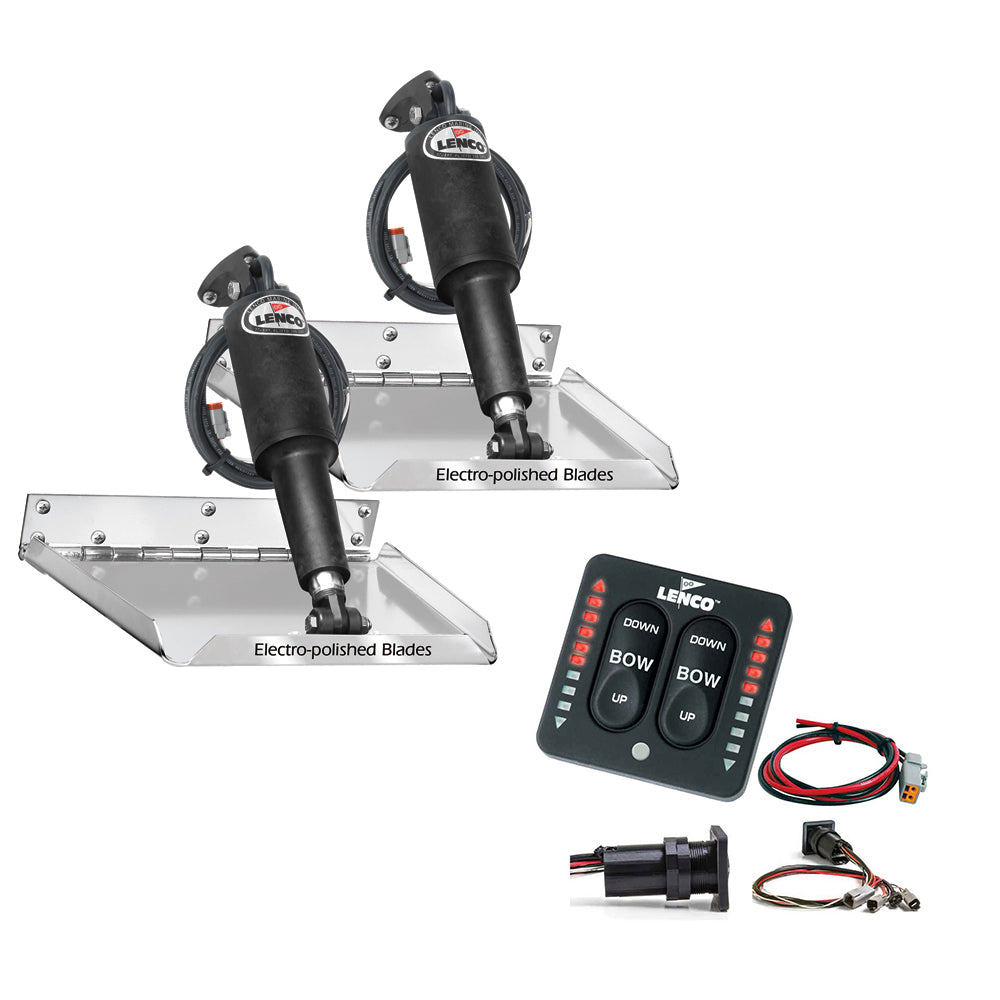

Lenco Marine RT12X12I Standard Performance Trim Tab Kit with LED Indicator Switch – 12V

Standard Performance Series Tabs


Standard actuator with 5/16 stainless steel through bolts. 1 turned up edges with 2 taper on the inside. All 12-gauge 304 stainless steel construction with Electro-Polished Blades

We make the best boats better!

Running wide open in rough seas isn't for the faint of heart. Aggressive boating requires durable boat accessories. Lenco's Standard Performance series of trim tabs are built to handle whatever you or Mother Nature might throw at them. Everything about your boat is designed to go hard and fast. Why should your trim tab system be any different

• All stainless steel construction (no dissimilar metals), Electro Polished Blades for long lasting good looks

• Actuator speed is precise and controllable so there are no surprises at top speeds

Actuators

• Instant response

• Fully submersible, maintenance-free and sealed for life

• High-impact, 50% glass fiber-filled, ultraviolet-resistant nylon case

Tactile Switch w/ Indicator LED for all Single Actuator Trim Tab Systems
Features:

• Self-contained, sealed keypad

• Self-contained, sealed control box module

• Fade/smudge-proof, laser engraved graphics

• Plug & play switch wiring harness connector

• Includes 36" power pigtail for control box

• 2" hole cut-out size, overall size 2.75" x 2.75"

• Built-in retract feature returns tabs to a fully retracted position when power is removed

• 2 high-intensity L.E.D. indicator displays show the exact position of our trim tabs at all times

• Photo eye reads ambient light and adjusts the L.E.D. indicator display intensity for optimum viewing in direct sunlight

• 12 & 24-volt compatibility

• Includes Self-Check Feature

Each kit contains:

• Tactile LED Indicator Switch

• 2 actuators with 6' Lead & Deutsch Plugs

• 2 12 Gauge SS Electro Polished trim tab planes

• 2 20' Actuator Extension Wiring Harness

• 2 Upper Mounting Bracket with Gland Seal

• 2 Lower Mounting Bracket

• All Necessary stainless steel mounting Hardware

WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.

Enhance your boat’s performance with the Lenco Marine RT12X12I Standard Performance Trim Tab Kit, designed for serious boating enthusiasts who demand durability and precise control. Crafted from all 12-gauge 304 stainless steel with an electro-polished finish, this system offers long-lasting good looks and resistance to corrosion, ensuring your boat maintains its sleek appearance even in harsh marine environments. The kit includes two robust actuators with 6-foot leads and Deutsch plugs, providing instant response and smooth, fully submersible operation that is sealed for maintenance-free, lifelong use. The high-impact, UV-resistant nylon case and stainless steel mounting hardware are engineered to withstand the rigors of aggressive boating and rough seas, making this trim tab system an essential upgrade for boats that push their limits. The actuator features precise, controllable speed, giving you confidence when navigating at top speeds or in challenging conditions. The included tactile switch with LED indicators offers intuitive, full control with a self-contained, sealed design that resists fade and smudging, ensuring clear visibility of tab positions even in direct sunlight. The switch incorporates a built-in retract feature that automatically returns the trim tabs to a fully retracted position when power is cut, enhancing safety and ease of use. The system supports 12 and 24-volt power sources, making it versatile for a wide range of marine applications. Each kit contains everything needed for installation, including mounting brackets, stainless steel hardware, wiring harnesses, and the LED indicator switch, providing a complete solution for upgrading your boat's trim system. Whether you're running wide open in rough seas or seeking enhanced control for smooth, efficient cruising, the Lenco Marine RT12X12I trim tab kit delivers reliable performance, durability, and precise handling to make your boating experience better.

Features:

• All stainless steel construction with electro-polished blades for corrosion resistance and long-lasting good looks

• Actuator speed is precise and controllable, ensuring smooth operation at high speeds

• Instant response actuators are fully submersible and sealed for maintenance-free, lifelong performance

• High-impact, UV-resistant nylon case provides durability in harsh marine environments

• Sealed, self-contained tactile switch with LED indicators for easy, reliable control

• Built-in retract feature automatically returns tabs to a fully retracted position when power is removed

• Photo eye sensor adjusts LED brightness for optimal visibility in direct sunlight

• Compatible with 12 and 24-volt power systems for versatile installation

• Complete kit includes actuators, mounting hardware, wiring harnesses, and control switch for easy installation
