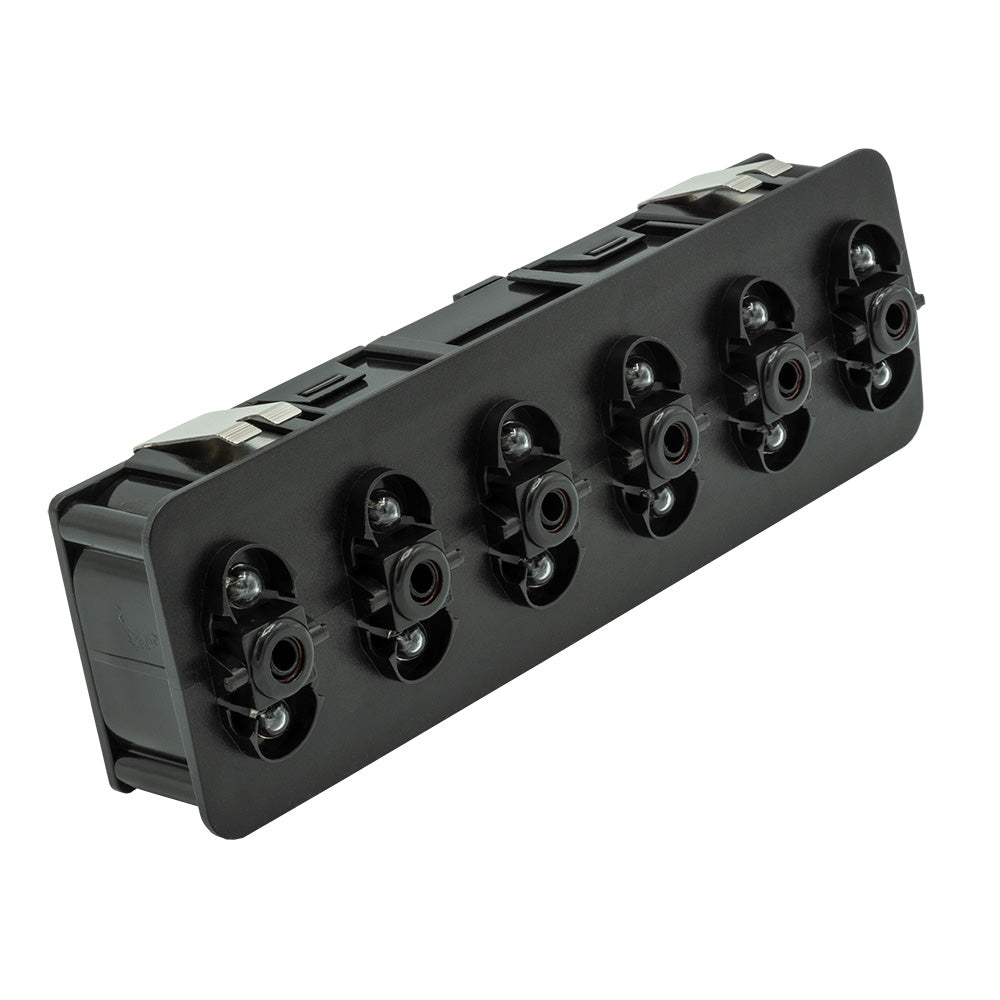

Maretron A3801-5 VMM6 Switch Module, No Actuators, Momentary ON, Blue LEDs with Adapter Cable

No Actuators - All Positions Momentary ON W/VMM Series - Adapter Cable 2M

The VMM-Series is a sealed multiplexed, digital switch module featuring the Carling V-Series Contura rocker switches. Well known for their cutting-edge design, high quality, maximum performance, and unmatched reliability, the VMM-Series reduces the complexity and cost of traditional wiring harnesses, increases product life and reliability, and reduces installation time. Available in six simple configurations, VMM6 is a plug-and-play solution that delivers switching technology at a very attractive price point.

Available in four simple configurations, the VMM6 is an out-of-the-box plug-and-play solution that delivers switching technology at a very attractive price point. In addition, for customers who want the option to source aftermarket actuators, we offer two configurations of the VMM6 without actuators (Part numbers A3801-5, A3801-6).

The VMM6 is sold off-the-shelf in the following configurations. Each configuration includes one 0.2m VMM to NMEA 2000 adapter cable.

Features:

• NMEA 2000 CAN Protocol
• IP68 Sealing Protection with plug installed in unused connector
• Configurable
• Horizontal or Vertical Mounting Options
• Aftermarket Actuators are readily available with a wide selection of Legends
• LED feedback of circuit state
• Low Current Switching
• Tactile and Audible Feedback

Specifications:

• No Actuators with all positions momentary ON and blue LEDs

Maretron A3801-5 VMM6 Switch Module with No Actuators provides a plug-and-play multiplexed switching solution for marine applications using the NMEA 2000 CAN protocol. Designed for customers who want to source aftermarket actuators, this VMM-Series module delivers configurable low-current switching, circuit-state LED feedback, and flexible installation in a compact, sealed design.

The VMM6 helps reduce the complexity associated with traditional wiring harnesses while supporting efficient installation and reliable system integration. This configuration features momentary ON operation in all positions with blue LEDs. Aftermarket actuators are readily available in a wide selection of legends, allowing users to customize the switch module for their application. Horizontal or vertical mounting options provide additional installation flexibility.

IP68 sealing protection is provided when the plug is installed in the unused connector. Tactile and audible feedback help users confirm switch operation, while LED feedback indicates circuit state. The Maretron A3801-5 includes a 0.2-meter VMM-to-NMEA 2000 adapter cable for connection to compatible marine network systems.

Key Features:

• NMEA 2000 CAN protocol supports integration with compatible marine networking systems.
• No actuators included, allowing selection of aftermarket actuators and legends.
• Momentary ON operation in all positions supports temporary switching control.
• Blue LED feedback indicates circuit state for improved visibility.
• IP68 sealing protection is available with the plug installed in the unused connector.
• Horizontal or vertical mounting options provide flexible installation.

Product Details:

• Brand: Maretron
• Model/Part Number: A3801-5
• Product Type: VMM6 multiplexed digital switch module
• Actuator Configuration: No actuators
• Switch Operation: All positions momentary ON
• LED Color: Blue
• Protocol: NMEA 2000 CAN
• Adapter Cable: One 0.2-meter VMM-to-NMEA 2000 adapter cable included
• Mounting: Horizontal or vertical
• Switching: Low current

This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns. Choose the Maretron A3801-5 VMM6 for configurable, networked switching with actuator flexibility.
