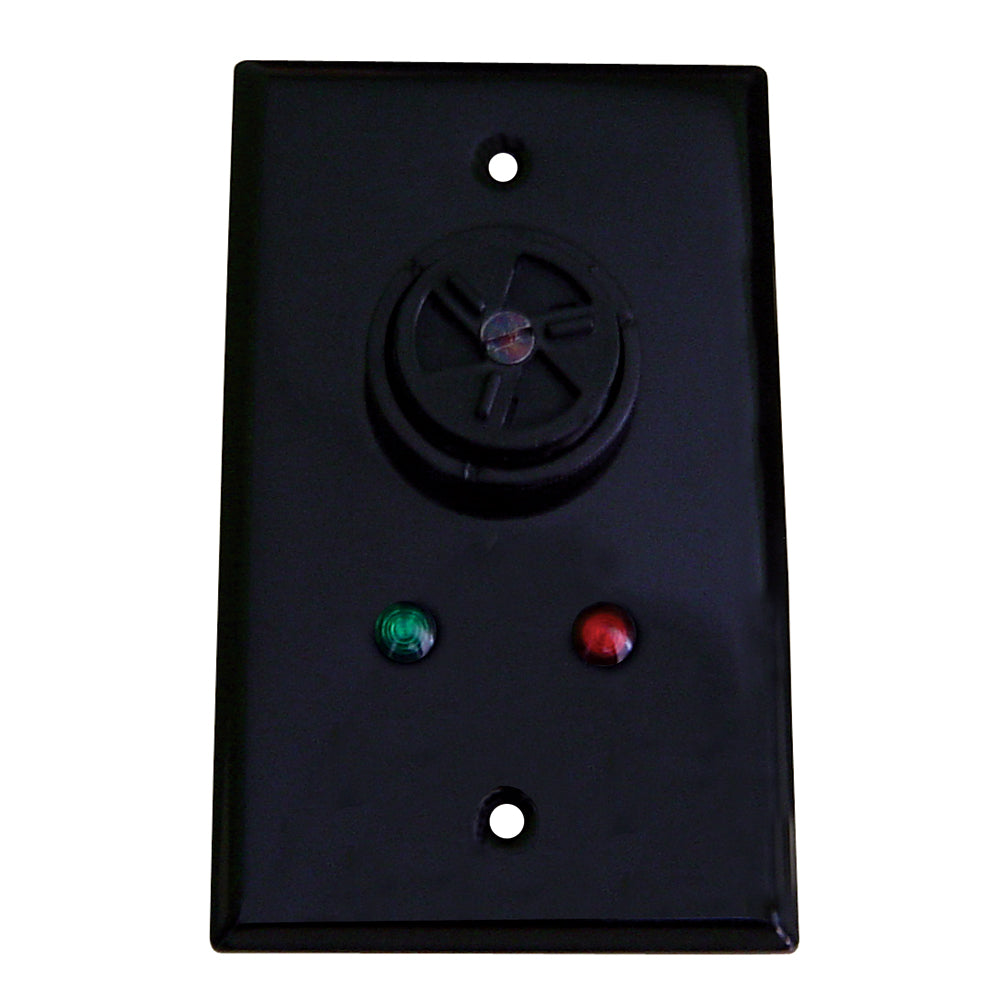

Maretron ALM100-01 Alarm Module with 105 dB Audible Alert and LED Indicators

Maretron's Alarm Module generates visual and audible alerts for any monitored condition. The Alarm Module includes an extremely loud 105 dB SPL Piezoelectric sounder, along with a red high-brighness LED to indicate an alarm condition. A second green LED indicated that the Alarm Module is powered and ready to be triggered. The audible alarm can sound any one of 32 distinct pre-programmed patterns to indicate different alerts. The Alarm Module can be triggered by alarms generated by Maretron's N2KView Vessel Monitoring System, or by Maretron's DSM250 Color Graphics Display. The Alarm Module mounts in a standard electric box or or can be flush mounted on any surface. Completely waterproof, the Alarm Module can be mounted inside or outside the vessel.

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

The Maretron ALM100-01 Alarm Module provides clear visual and audible alerts for monitored vessel conditions. Designed for marine monitoring applications, it helps boat owners and operators quickly recognize alarm events generated by Maretron N2KView Vessel Monitoring System or a Maretron DSM250 Color Graphics Display.

For effective notification in onboard environments, the module features an extremely loud 105 dB SPL piezoelectric sounder and 32 distinct pre-programmed alarm patterns. A high-brightness red LED indicates an active alarm condition, while a green LED confirms that the Alarm Module is powered and ready to be triggered. These distinct indicators help users identify both system readiness and alarm status.

The Maretron Alarm Module can be mounted in a standard electrical box or flush mounted on a surface. Its completely waterproof construction allows installation inside or outside the vessel, supporting a range of marine alarm notification setups. The ALM100-01 is a practical choice for integrating audible and visual alerts into a Maretron vessel monitoring system.

Key Features

• 105 dB SPL piezoelectric sounder: Delivers a loud audible alert for monitored vessel conditions.
• 32 alarm patterns: Provides distinct pre-programmed sounds for different alerts.
• Dual LED indicators: A red high-brightness LED shows an alarm condition, while a green LED indicates power and readiness.
• Maretron system compatibility: Can be triggered by alarms from Maretron N2KView Vessel Monitoring System or DSM250 Color Graphics Display.
• Flexible mounting: Installs in a standard electrical box or can be flush mounted on a surface.
• Waterproof construction: Supports installation inside or outside the vessel.

Product Details

• Brand: Maretron
• Model: ALM100-01
• Product type: Marine alarm module
• Sounder output: 105 dB SPL
• Alarm patterns: 32 pre-programmed patterns
• Mounting: Standard electrical box or flush surface mounting
• Installation: Inside or outside the vessel

California Proposition 65 Warning

WARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Choose the Maretron ALM100-01 Alarm Module to add dependable visual and audible alarm notification to a compatible marine monitoring system.

SEO META DESCRIPTION: Maretron ALM100-01 Alarm Module delivers 105 dB alerts, 32 alarm patterns, LED indicators, and waterproof mounting for vessel monitoring systems.

Truck Freight: No
Oversized: No
Owners Manual Url: https://productimageserver.com/literature/ownersManual/38853OM.pdf
