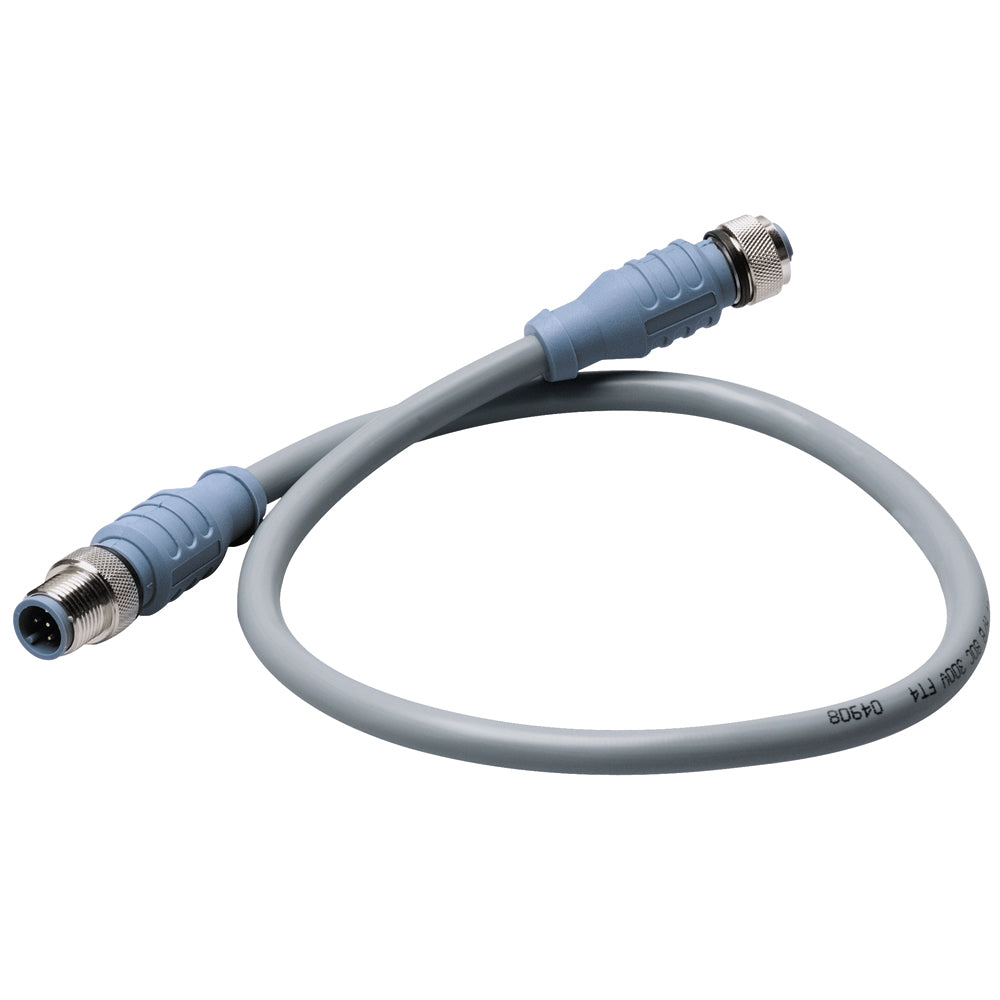

Maretron CM-CG1-CF-01.0 Micro Double-Ended Cordset – 1 Meter for Marine Data and Power Applications

Micro Double-Ended Cordset - 1M

Mechanical

• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Connector Outside Diameter: 0.59"
  Electrical
• Current Rating: 4.0 Amps
• Voltage Rating: 250 V
  Cable
• Outer Jacket Mat/Color: PVC/Gray
• Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
• Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
• Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)

Environmental

• Protection Class: IEC IP68, NEMA 1,3,4,6P
• Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
  Approvals
• (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
  AWM 80 deg C 300V
• (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
  AWM I/II A/B 80C 300V FT4
• NMEA: NMEA 2000 Approved

The Maretron CM-CG1-CF-01.0 Micro Double-Ended Cordset is engineered for reliable marine data and power connections in demanding environments. This 1-meter cordset features a durable thermoplastic PUR contact and molded body with a sleek blue-gray finish, ensuring longevity and ease of identification. The brass contact carriers with gold plating provide excellent conductivity and corrosion resistance, while the nickel-plated brass coupling nuts add durability for secure connections. The connector’s outside diameter of approximately 0.59 inches allows for versatile installation in tight spaces.
Designed for electrical efficiency, this cordset supports a current rating of 4.0 amps and a voltage rating of up to 250 volts. Its construction includes four insulated conductors with 22 AWG gauge, along with a drain wire, all protected by a multi-layer shielding system of foil layers for overall, power, and data pairs, minimizing electromagnetic interference. The outer PVC jacket in gray provides added protection against environmental factors.
Built for harsh marine environments, the Maretron cordset boasts an IP68 protection rating, making it suitable for underwater and outdoor applications. It complies with NEMA 1, 3, 4, and 6P standards, and operates within a temperature range of -40°C to 80°C (-40°F to 176°F). The cordset is certified by UL and CSA for outdoor and marine use, including UL PLTC 75°C sunlight resistance, AWM 80°C 300V ratings, and CSA certifications for outdoor environments. Additionally, it is NMEA 2000 approved, ensuring compatibility with marine networking systems. This product is an ideal choice for professional marine installations requiring robust, high-quality connections that withstand the rigors of the marine environment.
Manufactured by Maretron, a trusted leader in marine electronic solutions, this cordset offers both performance and durability for advanced vessel systems. Please note, this product complies with Prop 65 standards for safety and environmental health.

Features:

• Durable thermoplastic PUR contact and molded body in blue-gray finish for longevity

• Gold-plated brass contacts and nickel-plated brass coupling nuts for corrosion resistance

• Supports 4 conductors of 22 AWG with shielded multi-layer foil for EMI protection

• Outer PVC jacket provides environmental protection in harsh marine conditions

• IP68 protection rating suitable for underwater and outdoor use

• Meets NEMA 1, 3, 4, 6P standards for rugged marine environments

• Temperature range from -40°C to 80°C (-40°F to 176°F)

• UL and CSA certified for outdoor and marine applications

• NMEA 2000 approved for marine network compatibility

• Ideal for reliable power and data connections in demanding marine systems
