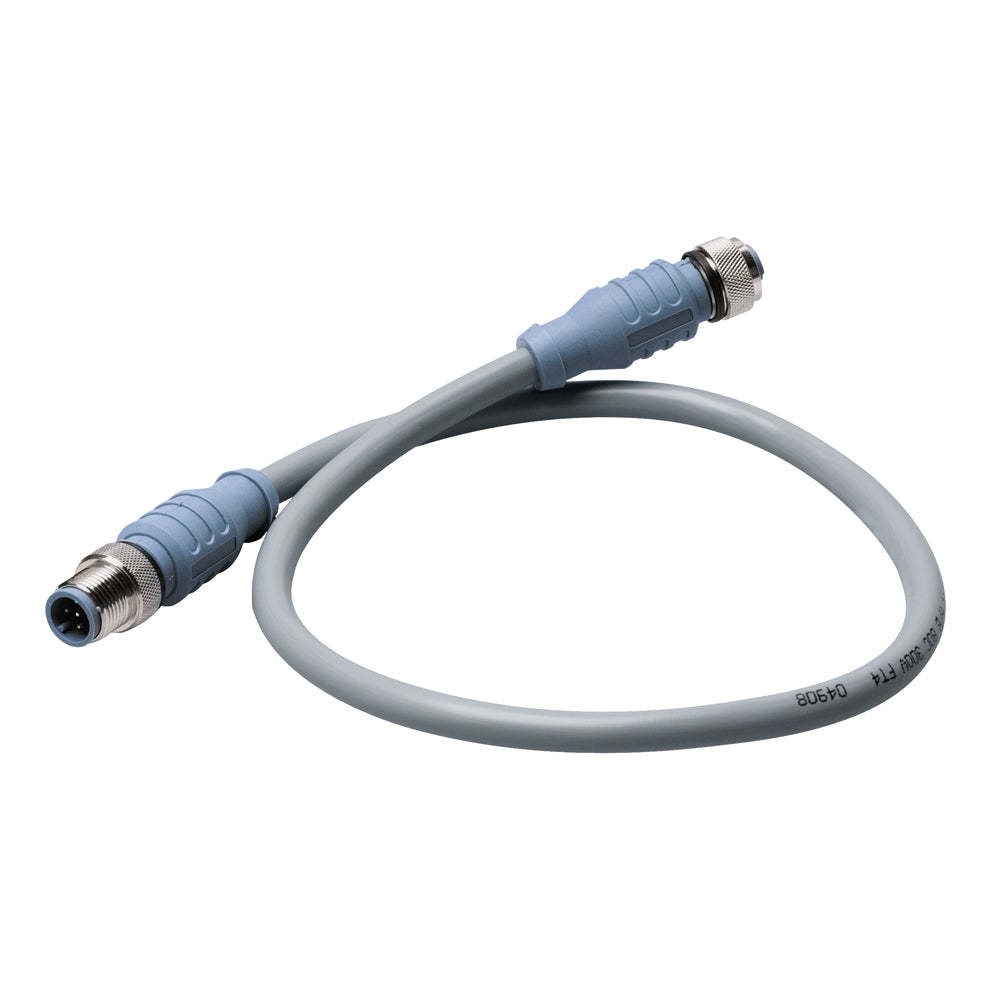

Maretron CM-CG1-CF-04.0 Micro Double-Ended Cordset, 4 Meters – Marine-Grade Waterproof Connection Cable with Brass Plating and 4 Conductors

The Maretron CM-CG1-CF-04.0 is a high-quality, 4-meter micro double-ended cordset designed for reliable marine and industrial applications. Crafted with durability and safety in mind, this cordset features a molded body and contact carrier made from thermoplastic polyurethane (PUR) in a sleek blue-gray finish, providing excellent resistance to harsh environments. The brass contact carriers are plated with gold to ensure optimal conductivity and corrosion resistance, while the coupling nut is nickel-plated for added durability and secure connections. This cable is engineered to meet rigorous standards, with an outside diameter of just 0.59 inches for easy installation in tight spaces. It offers a current rating of 4.0 amps and a voltage rating up to 250 volts, making it suitable for a variety of power and data transfer needs. The cable's outer jacket is made from durable PVC in gray, with conductor insulation comprising HDPE for data pairs and SRPVC for power pairs, ensuring signal integrity and safety. The four conductors are 22 AWG, complemented by a drain wire, and the cable features triple-layer shielding—foil shields for overall, power, and data pairs—effectively reducing electromagnetic interference and maintaining signal clarity. Certified for outdoor and marine environments, this cordset carries IEC IP68 and NEMA 1, 3, 4, 6P protection ratings, and can operate reliably in temperatures ranging from -40°C to 80°C (-40°F to 176°F). It holds multiple safety and quality approvals, including UL, CSA, and NMEA 2000 certification, ensuring compliance with industry standards for safety, durability, and performance. Whether for marine wiring or industrial automation, the Maretron Micro Double-Ended Cordset offers a dependable connection solution built to withstand demanding conditions and ensure long-lasting performance.

Features:

• High-quality molded thermoplastic polyurethane body for durability

• Brass contact carriers with gold plating for optimal conductivity and corrosion resistance

• Nickel-plated coupling nut for secure and reliable connections

• Outer diameter of 0.59 inches for easy installation in constrained spaces

• Rated for 4.0 amps current and up to 250 volts voltage

• Outer PVC jacket in gray with high-grade conductor insulation (HDPE and SRPVC)

• Four 22 AWG conductors plus drain wire for comprehensive power and data transfer

• Triple-layer shielding (foil shields for overall, power, and data pairs) for EMI reduction

• Waterproof and rugged design with IEC IP68 and NEMA 1, 3, 4, 6P ratings

• Temperature range from -40°C to 80°C (-40°F to 176°F)

• Certified by UL, CSA, and NMEA 2000 for industry-standard safety and performance standards
