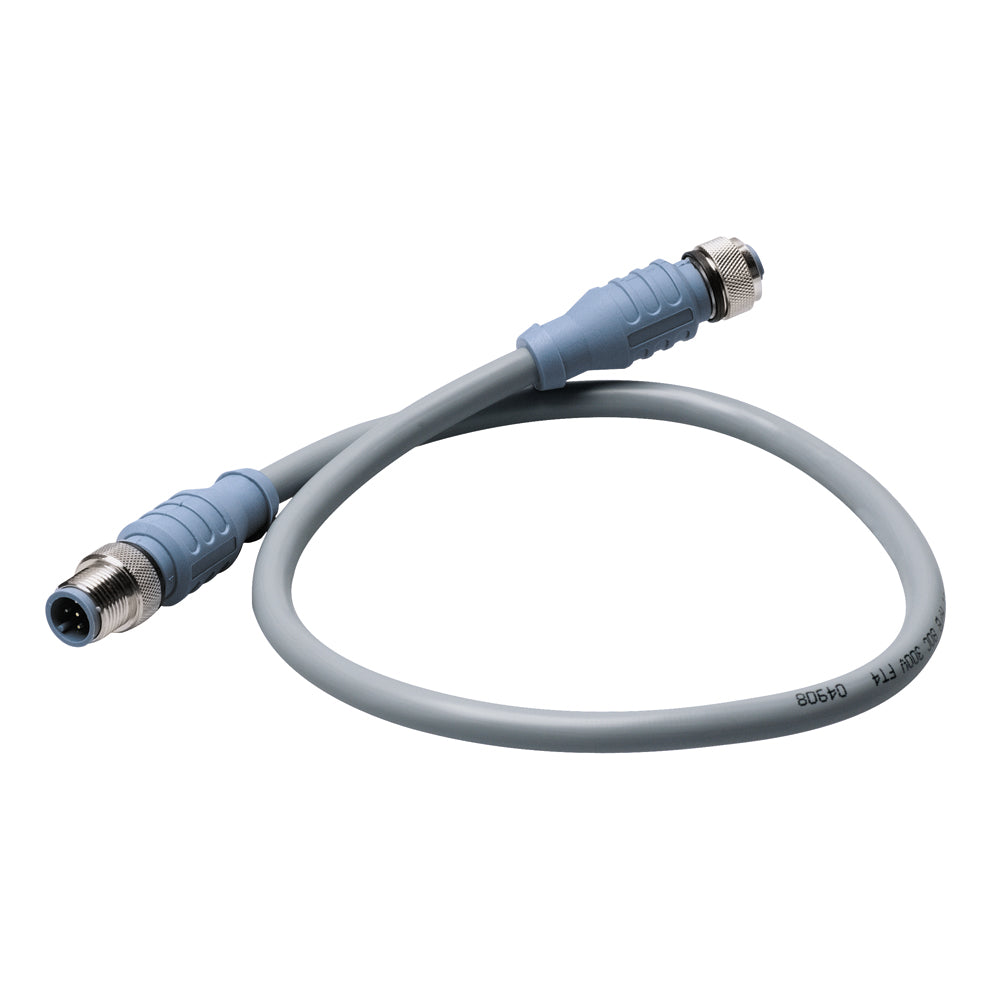

Maretron CM-CG1-CF-05.0 Micro Double-Ended Cordset, 5 Meter - Waterproof Marine Cable with Brass Connectors and Shielding

The Maretron CM-CG1-CF-05.0 Micro Double-Ended Cordset is designed for reliable, high-performance marine and industrial applications. Featuring a durable outer PVC jacket in gray and four 22 AWG conductors with shielded layers, this 5-meter cable ensures excellent signal integrity and protection against environmental elements. The cable's construction includes high-quality HDPE and SRPVC insulation, providing flexibility and durability in demanding conditions.

Built with precision, the contact and coupling nuts are made from brass with gold and nickel plating, ensuring corrosion resistance and secure connections. The connector outside diameter of 0.59 inches makes it suitable for tight spaces while maintaining a solid electrical connection. Rated at 4.0 amps and up to 250 volts, this cordset supports a wide range of power and data transmission needs.

Engineered for harsh environments, the Maretron Micro Cordset boasts protection ratings of IEC IP68 and NEMA 1, 3, 4, and 6P, making it fully waterproof and resistant to dust, chemicals, and extreme temperatures from -40°F to 176°F. The triple shielding layers—foil for overall, power, and data pairs—provide excellent EMI/RFI suppression, ensuring clean signals even in electrically noisy environments. Approved by UL, CSA, and NMEA 2000, this cordset meets rigorous safety and performance standards for marine and industrial use. Its compact size and robust construction make it the ideal choice for reliable connectivity in challenging conditions.

Features:

• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray

• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray

• Contact Mat/Plating: Brass/Gold

• Coupling Nut Mat/Plating: Brass/Nickel

• Connector Outside Diameter: 0.59 inches

• Current Rating: 4.0 Amps

• Voltage Rating: 250 V

• Outer Jacket Material: PVC/Gray

• Conductor Insulation: HDPE (data pair), SRPVC (power pair)

• Number of Conductors: 4 x 22 AWG, plus 22 AWG drain wire

• Shielding: Foil layers for overall, power, and data pairs

• Protection Class: IEC IP68, NEMA 1, 3, 4, 6P

• Temperature Range: -40°F to 176°F

• UL and CSA Certifications: UL PLTC 75°C sunlight resistant, AWM 80°C 300V, CSA CMX-OUTDOOR, FT4

• NMEA 2000 Approved for marine communication
