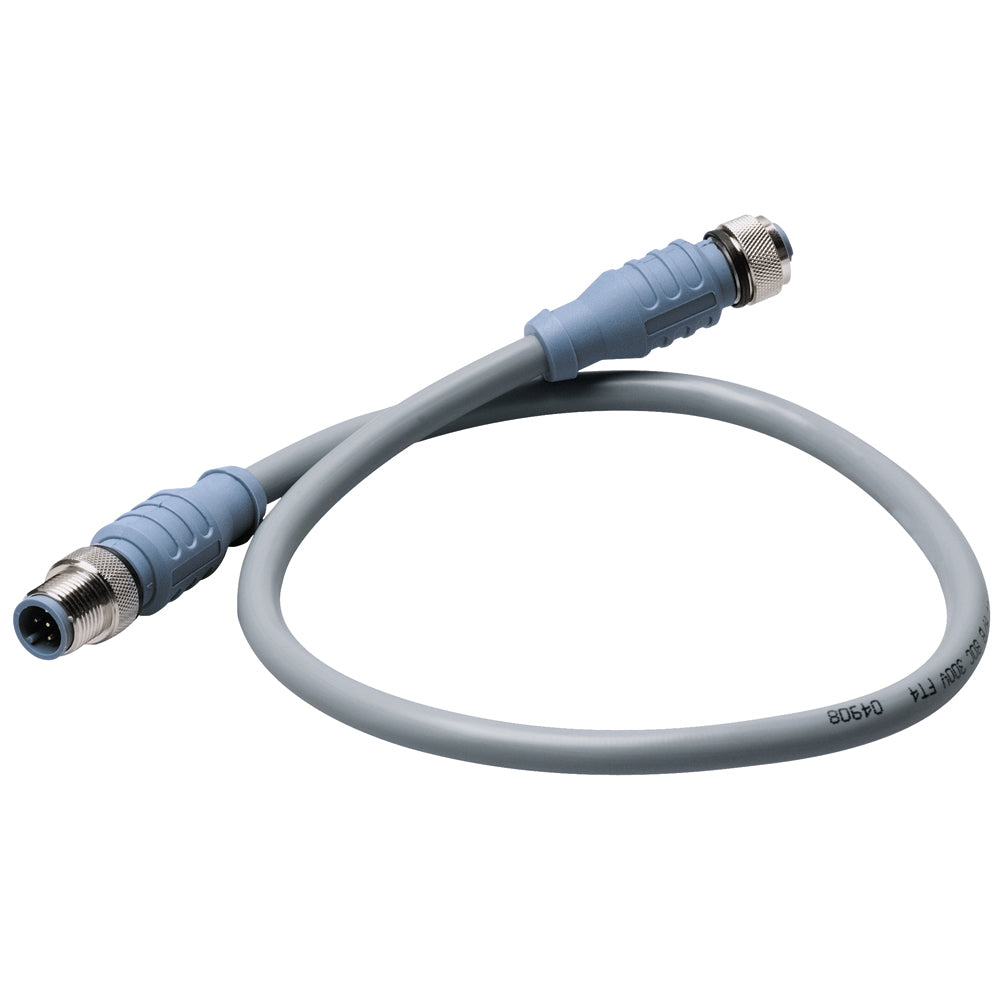

Maretron CM-CG1-CF-06.0 Micro Double-Ended Cordset - 6 Meter for Marine and Industrial Applications

The Maretron CM-CG1-CF-06.0 is a high-performance 6-meter double-ended cordset designed for reliable electrical connections in demanding marine and industrial environments. Crafted with durable thermoplastic PUR contact and molded bodies in blue-gray, this cordset offers excellent resistance to harsh conditions. The brass contact carriers with gold plating ensure optimal conductivity and corrosion resistance, while the brass nickel-plated coupling nut provides secure and stable connections. Its compact connector outside diameter of 0.59 inches makes it suitable for tight installation spaces, making it ideal for data and power transmission in challenging settings. The cable features four 22 AWG conductors with HDPE insulation for data pairs and SRPVC insulation for power pairs, shielded with three layers of foil—overall, power, and data—to minimize electromagnetic interference and ensure signal integrity. The outer PVC jacket in gray enhances durability and resistance to environmental factors. Certified to IEC IP68, NEMA 1, 3, 4, and 6P standards, this cordset offers exceptional environmental protection, including resistance to water, dust, and extreme temperatures ranging from -40°C to 80°C (-40°F to 176°F). It is UL listed under PLTC 75°C sunlight-resistant and AWM 80°C 300V standards, and CSA approved for outdoor and harsh environments. The Maretron Micro Double-Ended Cordset is NMEA 2000 compatible, making it an excellent choice for marine networking applications, ensuring seamless data sharing and power distribution across vessels and related equipment. Designed with quality and reliability in mind, this cordset provides a secure, weather-resistant connection for various critical applications, ensuring long-lasting performance even in the most challenging conditions.

Features:

• Contact Carrier Material: Thermoplastic PUR with Blue-Gray color for durability

• Molded Body Material: Thermoplastic PUR with Blue-Gray finish for environmental resistance

• Contact Plating: Brass with Gold finish for optimal conductivity and corrosion resistance

• Coupling Nut Plating: Brass with Nickel coating for secure connections

• Connector Diameter: 0.59 inches for compact installation

• Current Rating: 4.0 Amps for reliable power transmission

• Voltage Rating: 250 Volts suitable for various electrical applications

• Conductor Insulation: HDPE for data pairs and SRPVC for power pairs to ensure insulation integrity

• Number of Conductors: Four 22 AWG conductors plus one drain wire for comprehensive connectivity

• Shielding: Triple-layer foil shielding (overall, power, data) for EMI protection

• Environmental Protection: IEC IP68, NEMA 1/3/4/6P for water, dust, and temperature resistance

• Temperature Range: -40°C to 80°C (-40°F to 176°F) ensuring operation in extreme conditions

• Certifications: UL, CSA, and NMEA 2000 approval for safety and compatibility

• Application: Designed for marine, industrial, and outdoor environments requiring robust data and power connections
