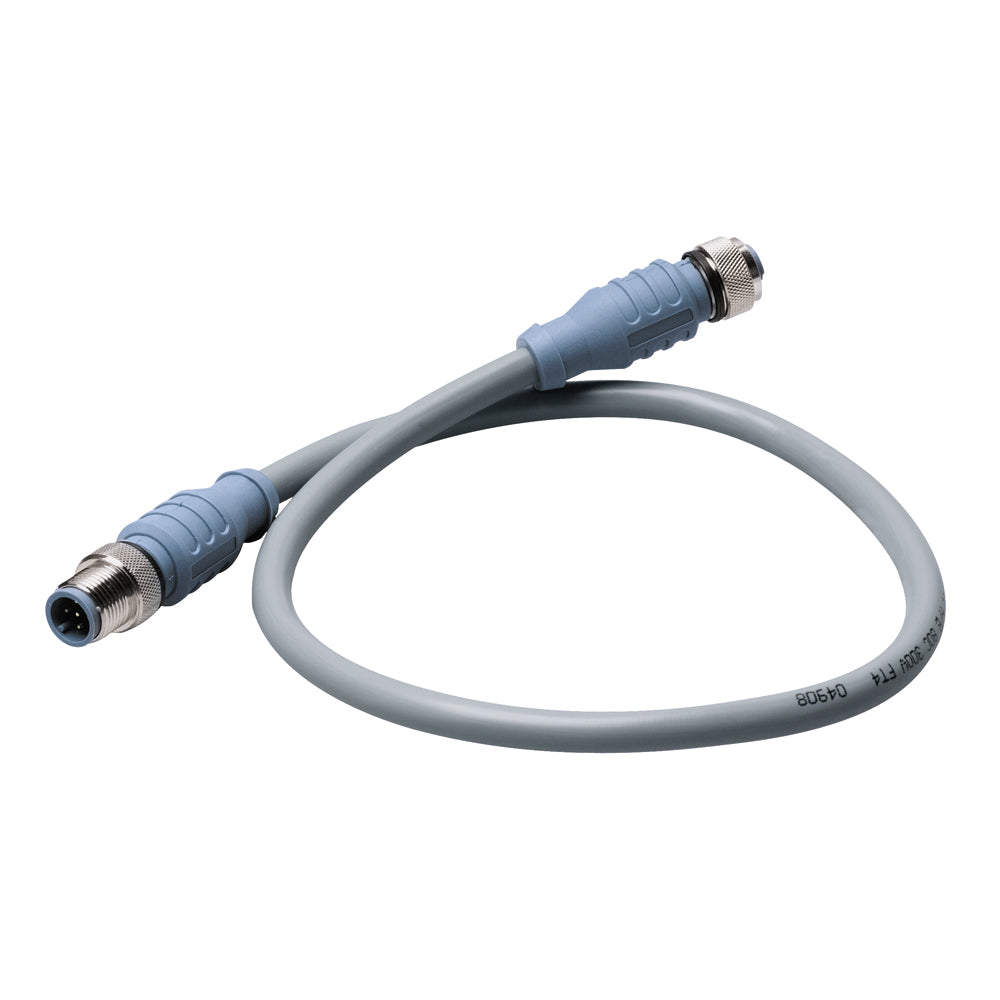

Maretron CM-CG1-CF-08.0 Micro Double-Ended Cordset, 26.2 ft, IP68 Waterproof, 4-Conductor Marine Cable

The Maretron CM-CG1-CF-08.0 Micro Double-Ended Cordset offers reliable connectivity for demanding marine applications. Designed with durable thermoplastic PUR contact and molded bodies in a sleek blue-gray finish, this cordset provides excellent resistance to harsh environments. The brass contact carriers plated in gold ensure optimal conductivity and corrosion resistance, while the brass nickel-plated coupling nut enhances durability and secure connections. With an outside diameter of just 0.59 inches, this compact cable is ideal for tight spaces on boats and vessels. The cordset features four conductors of 22 AWG each, along with a drain wire, providing versatile connectivity for data and power transmission. Shielded with three levels of foil shielding—overall, power pair, and data pair—this cable minimizes electromagnetic interference for consistent signal integrity. The outer PVC jacket offers robust protection with a gray color for easy identification and maintenance. The Maretron Micro Double-Ended Cordset is rated for a current of 4.0 amps and 250 volts, making it suitable for a wide range of marine electrical systems. It complies with UL, CSA, and NMEA 2000 standards, ensuring it meets rigorous safety and performance requirements. The cable is rated for temperatures from -40°C to 80°C (-40°F to 176°F) and features an IEC IP68 and NEMA 1,3,4,6P protection class, providing excellent resistance to water, dust, and other environmental hazards. Whether connecting sensors, instruments, or other electronic devices, this cordset guarantees reliable, weatherproof performance in demanding marine conditions. Its UL and CSA approvals, along with Prop 65 compliance, make it a trusted choice for professional and recreational marine applications.

Features:

• Contact Carrier: Thermoplastic PUR in Blue-Gray with brass/gold plating for corrosion resistance

• Molded Body: Thermoplastic PUR in Blue-Gray for durability

• Coupling Nut: Brass with nickel plating for secure, corrosion-resistant connections

• Connector Diameter: 0.59 inches for compact installation

• Current Rating: 4.0 Amps for reliable power transmission

• Voltage Rating: 250 V suitable for marine electrical systems

• Conductors: Four 22 AWG wires plus a drain wire for versatile connectivity

• Shielding: Three levels of foil shielding (overall, power, data) to reduce interference

• Outer Jacket: Gray PVC for environmental protection

• Temperature Range: -40°C to 80°C (-40°F to 176°F) for extreme conditions

• Protection Class: IEC IP68, NEMA 1,3,4,6P resistant to water and dust

• Certifications: UL, CSA, and NMEA 2000 approved for safety and performance

• Prop 65 compliant, ensuring safety in marine environments
