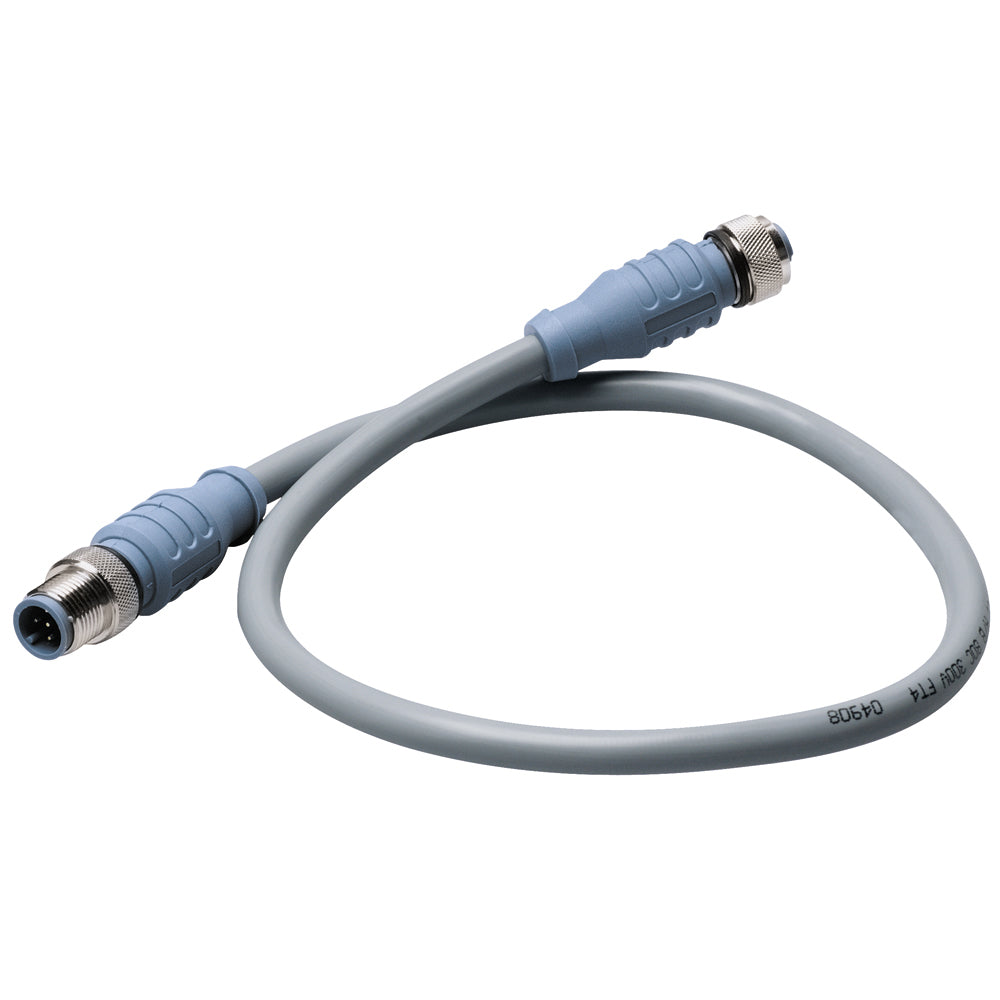

Maretron CM-CG1-CF-10.0 Micro Double-Ended Cordset, 10 Meter - Waterproof Marine Electrical Connection

The Maretron CM-CG1-CF-10.0 Micro Double-Ended Cordset is engineered for reliable marine communications and power connections in demanding environments. Designed with high-quality thermoplastic polyurethane (PUR) contact and molded bodies in a durable blue-gray color, this cordset ensures resistance to harsh conditions. The brass contact carriers with gold plating and brass coupling nuts with nickel plating provide optimal conductivity and corrosion resistance, making it ideal for marine applications where durability is essential. With an outside diameter of 0.59 inches, this cable is designed for secure and easy installation in tight spaces, while maintaining high performance standards. The cordset features a robust shielded cable with four 22 AWG conductors, a drain wire, and multi-level foil shielding to prevent electromagnetic interference, ensuring clear data and power transmission. The outer PVC jacket in gray adds additional environmental protection, supporting temperatures from -40°F to 176°F, and achieving IEC IP68 and NEMA 1, 3, 4, 6P protection ratings to withstand water, dust, and harsh conditions. The cable is UL-listed (PLTC 75°C, Sunlight Resistant, E90625; AWM 80°C, 300V) and CSA-certified (CMX-OUTDOOR-CMG LL54185, 75°C; AWM I/II A/B 80°C, 300V, FT4). Approved for NMEA 2000 networks, this cordset is perfect for marine automation, instrumentation, and communication systems. Whether used for connecting sensors, control units, or power sources, the Maretron Micro Double-Ended Cordset ensures reliable, long-lasting performance in demanding marine environments without compromise.

Features:

• High-quality thermoplastic PUR contact carriers and molded bodies for durability

• Brass contact with gold plating and brass coupling nuts with nickel plating for corrosion resistance

• Outer diameter of 0.59 inches for secure fit in tight spaces

• Shielded cable with four 22 AWG conductors and drain wire for interference-free data and power transmission

• Multi-level foil shielding for enhanced electromagnetic interference protection

• Outer PVC jacket in gray with temperature range from -40°F to 176°F

• IEC IP68 and NEMA 1, 3, 4, 6P rated for water, dust, and harsh environmental protection

• UL-listed and CSA-certified for safety and reliability

• NMEA 2000 approved for marine network integration
