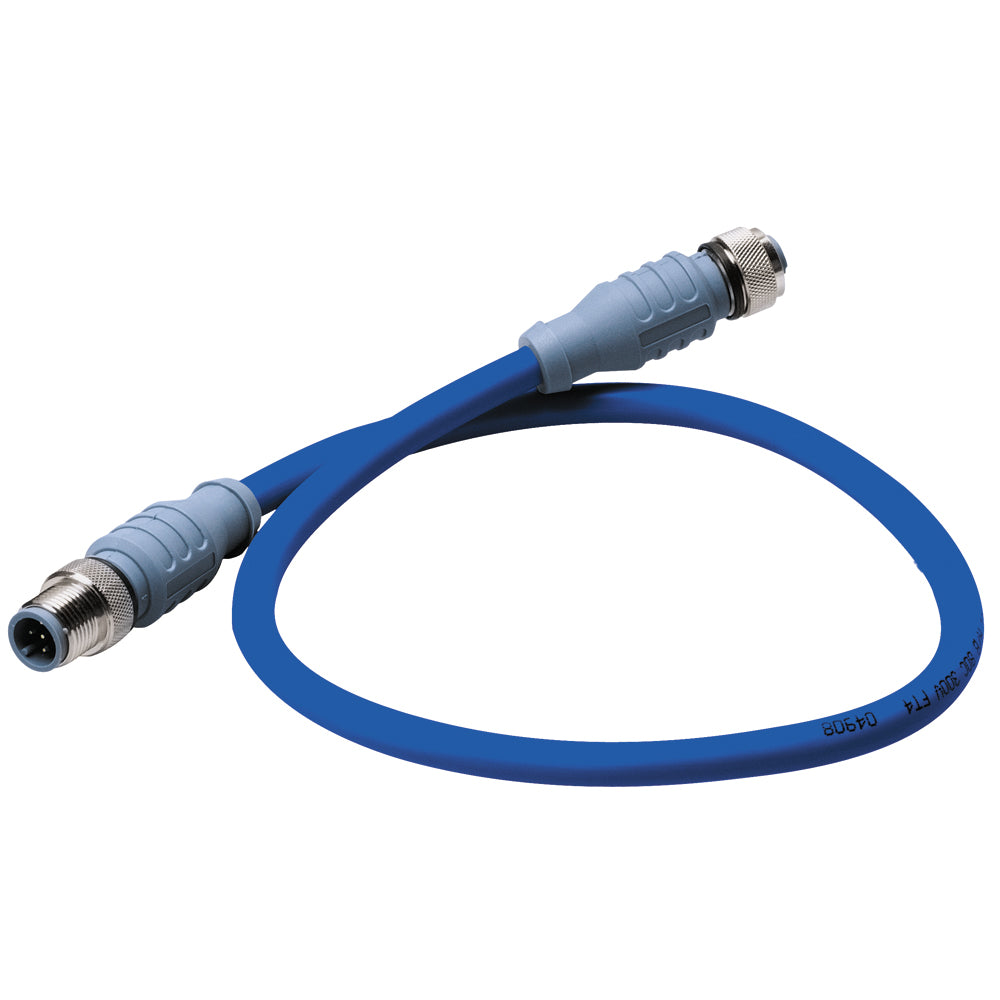

Maretron DM-DB1-DF-02.0 Mid Double-Ended Cordset, 2 Meters, Blue – Marine-Grade NMEA 2000 Compliant Cable

Maretron Mid Double-Ended Cordset - 2 M Blue

Mechanical:

• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Connector Outside Diameter: 0.59

  Electrical
• Current Rating: 4.0 Amps
• Voltage Rating: 250 V

  Cable


• Outer Jacket Mat/Color: PVC/Gray
• Conductor Insulation Material: PE (data pair), PVC (power pair)
• Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
• Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)

  ENVIRONMENTAL
• Protection Class: IEC IP68, NEMA 1,3,4,6P
• Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

  APPROVALS
• (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
• (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3

The Maretron DM-DB1-DF-02.0 Mid Double-Ended Cordset offers a reliable 2-meter connection solution designed specifically for marine applications. Constructed with durable thermoplastic PUR contact carriers and molded bodies in a sleek blue-gray finish, this cordset ensures robust performance and resistance to harsh environments. The brass contact carriers with gold plating provide excellent conductivity and corrosion resistance, while the brass nickel-plated coupling nut guarantees secure connections in demanding conditions.

This cordset is rated for 4.0 amps and up to 250 volts, making it suitable for a wide range of electrical connections on vessels. Its shielded design includes three layers of foil shielding—overall, power pair, and data pair—minimizing electromagnetic interference and ensuring signal integrity for critical data and power transmission. The outer PVC jacket in gray provides additional protection against moisture, abrasion, and UV exposure, conforming to IEC IP68 and NEMA 1, 3, 4, 6P standards for water and dust resistance. The cable features two data conductors and two power conductors, all insulated with polyethylene and PVC, with a drain wire for enhanced shielding effectiveness.

Certified for marine use, this cable is UL-listed as PLTC 75°C sunlight resistant and AWM 80°C 300V, meeting rigorous safety and durability standards. It is also NMEA 2000 approved and compliant with IEC 61162-3, ensuring compatibility with maritime communication and navigation systems. Designed for easy installation and dependable long-term use, the Maretron DM-DB1-DF-02.0 is ideal for connecting sensors, instruments, and other marine electronic components in challenging environments.

Features:

• Durable thermoplastic PUR contact carrier and molded body in blue-gray finish for weather resistance

• Gold-plated brass contacts and nickel-plated coupling nut for corrosion resistance and reliable conductivity

• Rated for 4.0 amps and 250 volts, suitable for marine electrical systems

• Triple-layer foil shielding (overall, power pair, data pair) to ensure signal integrity

• Outer PVC jacket in gray with IEC IP68 and NEMA 1, 3, 4, 6P protection standards for water and dust resistance

• Includes two data conductors and two power conductors with polyethylene and PVC insulation

• NMEA 2000 approved and IEC 61162-3 compliant for maritime communication and navigation

• Sunlight resistant UL and CSA ratings for outdoor durability in marine environments
