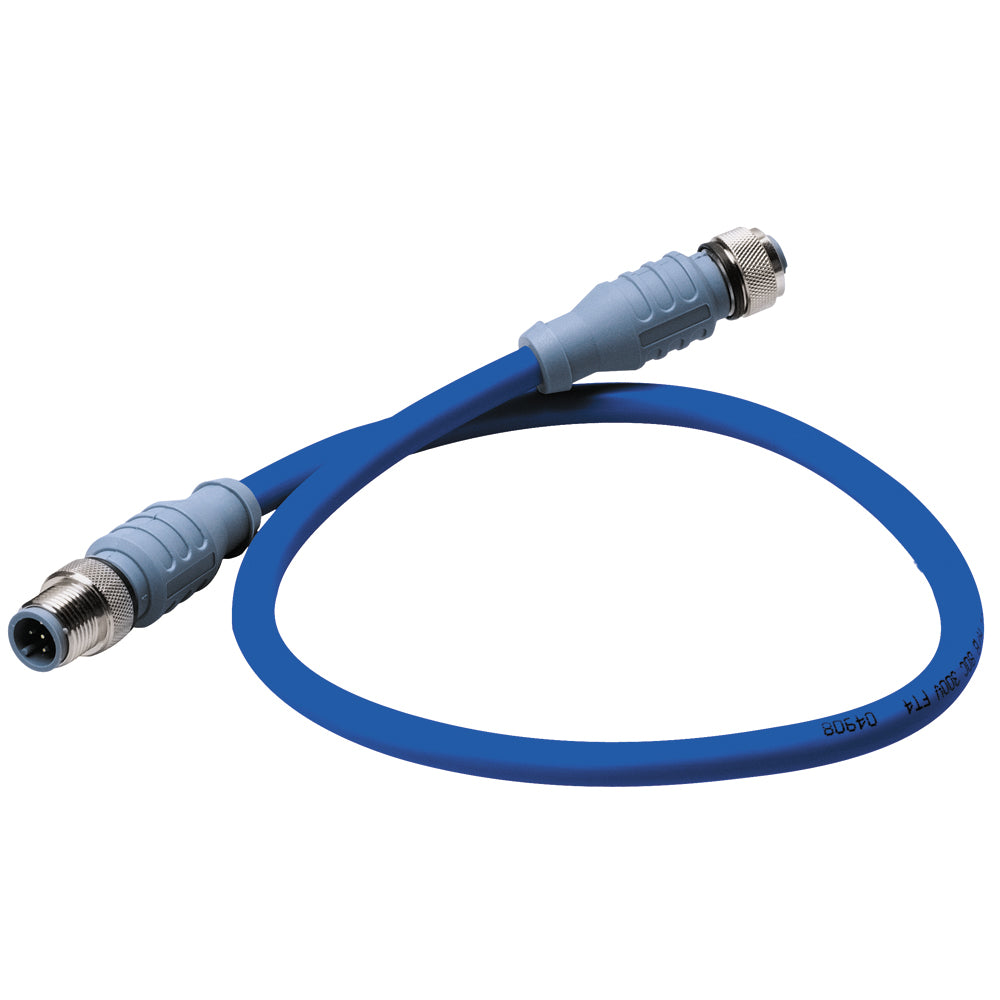

Maretron DM-DB1-DF-03.0 3-Meter Blue Mid Double-Ended Connector Cordset for NMEA 2000 Networks

Maretron Mid Double-Ended Cordset - 3 M Blue

Mechanical:

• Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
• Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
• Contact Mat/Plating: Brass/Gold
• Coupling Nut Mat/Plating: Brass/Nickel
• Connector Outside Diameter: 0.59

  Electrical
• Current Rating: 4.0 Amps
• Voltage Rating: 250 V

  Cable


• Outer Jacket Mat/Color: PVC/Gray
• Conductor Insulation Material: PE (data pair), PVC (power pair)
• Number of Conductors: 2x16 (1.29mm) AWG, Data 2x20 (0.81mm) AWG, 20 (0.81mm) AWG Drain Wire
• Shielding (3 Levels): Foil (Overall), Foil (Power Pair), Foil (Data Pair)

  ENVIRONMENTAL
• Protection Class: IEC IP68, NEMA 1,3,4,6P
• Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)

  APPROVALS
• (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
• (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80 deg C 300V FT4
• NMEA: NMEA 2000 Approved
• IEC: IEC 61162-3

The Maretron DM-DB1-DF-03.0 3-Meter Blue Mid Double-Ended Cordset provides a reliable and robust connection solution for marine electronics and NMEA 2000 networks. Designed with high-quality materials, this cordset features a durable thermoplastic PUR outer jacket in gray, offering excellent environmental resistance, including protection class IEC IP68, NEMA 1, 3, 4, and 6P, ensuring dependable performance in harsh marine conditions. The connectors are constructed with brass contacts plated in gold for optimal conductivity and corrosion resistance, paired with brass nickel-plated coupling nuts for secure connections. The connector's outside diameter of 0.59 inches makes it easy to connect in tight spaces on boats and marine equipment. The cable supports a current rating of 4.0 amps and a voltage rating of 250 volts, suitable for power and data transfer in marine environments. It features multiple shielding layers—foil shields over both power and data pairs, along with an overall foil shield—reducing electromagnetic interference for clear signal integrity. The conductors are composed of 16 AWG data pairs and 20 AWG power pairs, with an additional drain wire for grounding, ensuring reliable data transmission and power delivery. Rated for temperatures from -40°C to 80°C (-40°F to 176°F), this cordset can withstand extreme marine conditions. Approved by UL, CSA, and NMEA, and compliant with IEC 61162-3 standards, the Maretron DM-DB1-DF-03.0 is a trusted choice for professional and recreational marine applications, ensuring safety, durability, and high performance in your vessel's network setup.

Features:

• Durable thermoplastic PUR outer jacket in gray for environmental resistance

• Gold-plated brass contacts for optimal electrical performance and corrosion resistance

• Brass nickel-plated coupling nut provides secure, reliable connections

• Shielded construction with foil layers for enhanced signal integrity

• Supports up to 4 amps current and 250 volts voltage rating

• Temperature range from -40°C to 80°C (-40°F to 176°F) for extreme conditions

• Protection class IEC IP68 and NEMA 1, 3, 4, 6P for robust marine environment performance

• UL and CSA approved, compliant with IEC 61162-3 standards

• 3-meter length with a 0.59-inch outside diameter for versatile installation
